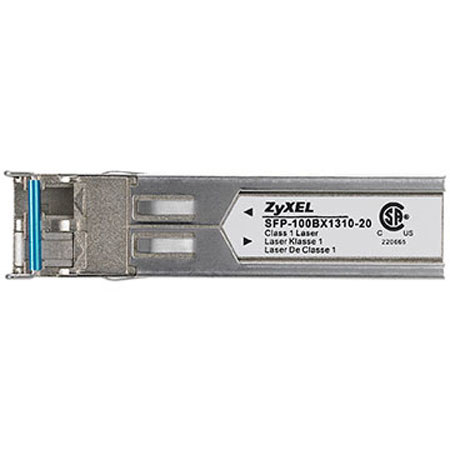

ZyXEL SFP100BX1310-20 100BX SFP Transceiver

SKU: ZYP100BX1310 MFR: SFP100BX1310
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$199.99
Free Shipping
Qty:

Add to Wishlist

About the ZyXEL SFP100BX1310-20

ZyXEL SFP-100BX1310-20 SFP Transceiver follow industry standards to assure compatibility with switches from other manufacturers without barriers set by proprietary technologies. With ZyXEL's comprehensive Fast transceiver product range, users can just plug in the proper model to extend the physical network coverage. Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be added when required and infrastructure upgrade or transceivers repair can be done easily by just replacing the transceiver instead of the whole device.

Two strands of fiber have traditionally been required for fiber optic networking to accomplish communications. In this case, one strand is reserved for transmitting, the other for receiving. However, bidirectional, dual wavelength transceivers can accomplish communications over just one strand of fiber by using two separate optical wavelengths, one to receive and the other to transmit the signal. Transmission capacity can be expanded immediately without additional cost of running new fiber and the value of existing fiber plant can be maximized.

ZyXEL SFP100BX1310-20 Features

  • Industry Standard Compliance
  • SFP MSA (Multi-Source Agreement) Compliance
  • Hot-Pluggable with Maximum Flexibility
  • Compact Size, High Port Density
  • Single +3.3V Power Supply
  • Low Power Dissipation

ZyXEL SFP100BX1310-20 Specifications

Standard Compliance 125 Mbps IEEE 802.3u 100BASE-FX compliant (SFP-100FX-2)
125 Mbps IEEE 802.3ah 100BASE-LX10 compliant (SFP-100LX-20)
125 Mbps IEEE 802.3ah 100BASE-BX10-U compliant (SFP-100BX1310-20
125 Mbps IEEE 802.3ah 100BASE-BX10-D compliant (SFP-100BX1550-20 )
1.25 G IEEE 802.3ah 1000BASE-BX10-U compliant (SFP-BX1310-10)
1.25 G IEEE 802.3ah 1000BASE-BX10-D compliant (SFP-BX1490-10)
Connectivity Technology Wired
Data Link Protocol Fast Ethernet
Data Transfer Rate 100 Mbps
Optical Wave Length 1310 nm
Interfaces 1 x network - Ethernet 100Base-BX
Compatible Slots 1 x SFP (mini-GBIC)
Operating Temperature 32deg.F - 158deg.F / 0deg.C - 70deg.C
Storage Temperature -40deg.F - 185deg.F / -40deg.C - 85deg.C
Relative Humidity 5% - 95%
Safety Certification Class 1 Laser
21 CFR 1040.10 and 1040.11 compliant
CSA
TUV
Dimensions (H x W x D) 0.49 x 2.20 x 0.53"/12.44 x 55.88 x 13.46 mm
