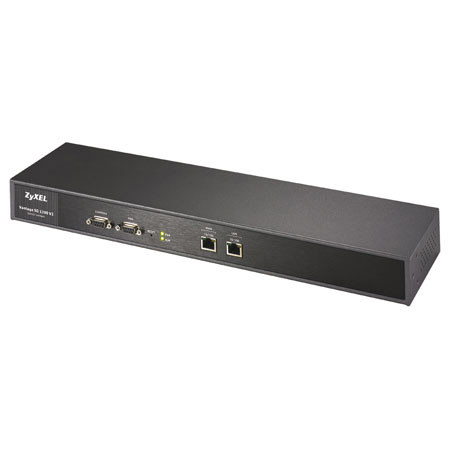

ZyXEL VSG-1200V2 Hospitality Gateway, 250 Users

SKU: ZYVSG1200V2 MFR: VSG1200V2
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,619.99
Free Shipping
Qty:

Add to Wishlist

About the ZyXEL VSG-1200V2

The VSG-1200 V2 is an access server that recognizes new users on a network and re-routes all the different IP settings pre-configured on users' computers. By re-routing settings such as DHCP, DNS and Proxy, in addition to a static or private IP, subscribers are able to gain access to the Internet without changing any settings. The VSG-1200 V2 also provides SMTP server re-direction, which helps users to send e-mail via the local SMTP server instead of the predetermined default server.

In today's business environment, companies increasingly support VPN (Virtual Private Network) to facilitate secure remote access to local networks. The VSG-1200 V2 allows VPN ( PPTP, IPsec and L2TP) traffic pass through, allowing telecommuters and other personnel to safely access important or confidential information while traveling. The VSG-1200 V2 allows secure passing of authentication information through SSL encryption for both web-based administration and user login.

The VSG-1200 V2 supports both RADIUS (Remote Authentication Dial-In User Service) and proprietary implementation to authenticate, authorize and record the Internet usage of customers. The RADIUS support gives service providers an easy way to manage and maintain a large group of subscribers over the Internet, while the built-in authentication server allows an administrator to control and authenticate a subscriber's access rights based on a login name and password. Internet usage can be easily charged by pre-defined billing plans (by either minute, hour, day or other options). With the PMS interface, the VSG-1200 V2 can easily provide information on the Internet usage of different customers to the existing property management system in a hotel application.

System configuration of the VSG-1200 V2 can be saved and exported to a file that can be used for subsequent re-configuration or configuration of another VSG. The VSG-1200 V2 supports port mapping, which allows system administrators to remotely manage and configure devices with private IP address. The Web-based management interface of the VSG-1200 V2 offers an easy-to-use platform, independent management and configuration options. The VSG-1200 V2 supports SNMP and MIBs, both of which can be managed via standard-based management software.

ZyXEL VSG-1200V2 Features

  • PMS Integration
  • RADIUS Authentication/Accounting
  • Time-based Billing (Billing by minute, hour, day, week, etc)
  • SSL Secure User Login process
  • VPN pass through (IPSec/PPTP/L2TP)
  • 802.1x pass through

ZyXEL VSG-1200V2 Specifications

Networking 1 IEEE802.3 10BaseT Ethernet
IEEE802.3u 100BaseTX Fast Ethernet
Supports 1024 Simultaneous Users
Supports all operation systems with TCP/IP support (Windows 95/98/NT/2000/XP, Mac OS, UNIX, Windows CE, Palm, IE, Netscape, Firefox)
IP Plug and Play (iPnP)
HTTP Proxy Support (Any proxy port)
SMTP Server Redirection
DHCP Server (RFC 2131)
DHCP Relay (RFC 1542)
Static IP WAN Client
DHCP WAN Client
Networking 2 PPPoE WAN Client (RFC2516)
PPTP WAN Client (RFC 2637)
NAT (RFC 1631)
NAT pool function can use the different Public address to access the same VPN Server
Maximum numbers of Session 16384
Maximum numbers of Local Account Static+Dynamic=1024
AAA RADIUS Authentication / Accounting
Secondary RADIUS Server
Proprietary Authentication / Accounting
Wed-based Account Manager
Built-in Web-Based Authentication
WISPr Smart Client Support Pass Smart Client
User-Based Bandwidth Management
Billing Proprietary Billing Profile Mechanism
Time-based Billing (Billing by minute, hour, day, week, etc. These billing options offer the customer choice and flexibility, allowing the Service Provider to control costs in a pay per use environment)
Usage-based Billing (Billing by usage enhances service by giving customers choice and billing flexibility) (Note: Only supported in Radius Authentication)
Online Credit Card Authentication
Billing log record Max.=5000
Security SSL Secure User Login process
SSL Secure Web-based administration
VPN pass through (IPSec/ PPTP/ L2TP)
IP/MAC/URL address pass through
802.1x pass through
PMS Integration Micro Fidelio Protocol compatible
Max. Throughput 72Mbps
Concurrent User 1024 (Static+Dynamic)
Management Administrator/Account Manager Management Access
Remote Web-based Configuration and Management
Authorized remote management
Firmware Upgrade(RFC 1350) via TFTP/ HTTP
Import/ Export Setting
Watchdog Mechanism
System Information Table
Real-time Current User List/ DHCP Client List/ Session List/ Account List
Syslog Application
Log by E-mail
SNMP MIB I/II
Private MIB(Read only)
LAN devices Management
Local Service Advertisement URL link
Walled garden
Login Page Redirection
Customize Login Page
Portal Page
Interface One RJ-45 connector for 10/100BaseTx WAN Ethernet port with Auto Cross-over
One RJ-45 connector for 10/100BaseT LAN Ethernet port with Auto Cross-over
Two serial port: DB9 Female RS232 for Console, PMS application
LED Power
Status
WAN: 100, LK/ACT, FD
LAN: 100, LK/ACT, FD
Power Internal universal switching power supply
100-240 VAC, 50/60 Hz
Maximum power consumption: 10W
Temperature Operating Temperature: 0deg.C - 50deg.C
Storage Temperature: -10deg.C - 60deg.C
Humidity 10% - 95% (non-condensing)
Dimensions (W x D x H) 440 x 116 x 44 mm / 17.32 x 4.56 x 1.73 in
Weight 1.7kg / 3.75 lbs
