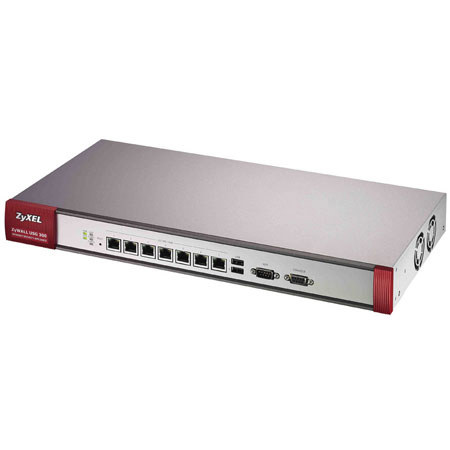

ZyXEL ZyWALL Usg300 Total Security, Unified Security Gateway with 200 VPN Tunnels, 1 Year CF, AV and IDP services


About ZyXEL Usg300

The ZyWALL USG (Unified Security Gateway) 300 (ZYUSG300TS) is the "third generation" ZyWALL featuring an all-new platform. It provides the performance 22 times faster than the previous-generation ZyWALL firewalls, as well as a deep packet inspection security solution for small businesses to enterprises alike. This multilayered security safeguards your organization's customer and company records, intellectual property and critical resources from external and internal threats.

ZyXEL Usg300 Features

  • Hybrid VPN, both SSL and IPSec VPNs supported for flexible deployment
  • Comprehensive threat protection with firewall, VPN, anti-virus, content filtering, Intrusion detection and prevention to secure front line threats
  • IM/P2P management can prevent P2P or Instant Messaging applications to increase productivity
  • Flexible security zone using VLAN technology to segregate local networks
  • User-aware policy engine can set bandwidth or network access based on user login
  • Bandwidth management for traffic prioritization for VoIP or mission critical applications
  • Network resilience with multiple WANs, 3G cellular support and device high availability

ZyXEL Usg300 Specifications

Gateway Anti-Virus
Stream-Based Gateway Anti-Virus Powered by Kaspersky Labs
Covers Top Active Viruses in the Wild List
Scans HTTP / FTP / SMTP / POP3 / IMAP4
Automatic Signature Update
No File Size Limitation
Blacklist / Whitelist
Intrusion Detection and Prevention
In-line Mode (Routing / Bridge)
Zone-Based IDP Inspection
Customizable Protection Profile
Signature-Based Deep Packet Inspection
Automatic Signature Update
Custom Signatures
Traffic Anomaly: Scanning Detection and Flood Protection
Protocol Anomaly: HTTP / ICMP / TCP / UDP
Content Filter
URL Blocking, Keyword Blocking
A Exempt List (Blacklist and Whitelist)
Blocks Java Applet, Cookies and Active X
Dynamic URL Filtering Database (BlueCoat)
Routing Mode / Bridge Mode / Mixed Mode
Layer 2 Port Grouping
Ethernet / PPPoE / PPTP
Tagged VLAN (802.1Q)
Virtual Interface (Alias Interface)
Policy-Based Routing (User-Aware)
Policy-Based NAT (SNAT / DNAT)
RIP v1 / v2
IP Multicasting (IGMP v1 / v2)
DHCP Client / Server / Relay
Built-in DNS Server
Dynamic DNS
Bandwidth Management
Bandwidth Priority
Policy-Based Traffic Shaping
Maximum / Guaranteed Bandwidth
Bandwidth Borrowing
Internal User Database
Microsoft Windows Active Directory
External LDAP / RADIUS User Database
ZyWALL OTP (One Time Password)
Force User Authentication (Transparent Authentication)
High Availability
Device HA (Active-Passive Mode)
Device Failure Detection
Link Monitoring
Auto-Sync Configurations
Multiple WAN Load Balancing
VPN HA (Redundant Remote VPN Gateways)
System Management 1
Role-Based Administration
Simultaneous Administrative Logins
Multi-Lingual Web GUI (HTTPS / HTTP)
Object-Based Configuration
Command Line Interface (Console / WebConsole / SSH / TELNET)
Comprehensive Local Logging
System Management 2
Syslog (4 Servers)
E-mail Alert (2 Servers)
Real-Time Traffic Monitoring
System Configuration Rollback
Text-Based Configuration File
Firmware upgrade via FTP / FTP-TLS / Web GUI
Advanced Reporting (Vantage Report 3.1)
Centralized Network Management (Vantage CNM 3.0)
256MB RAM / 256MB Flash
GbE x 7 (RJ-45, with LED)
Auto-Negotiation and Auto MDI/MDI-X
A Console
RS-232 (DB9F)
RS-232 (DB9M)
LED Indicator
Power Switch
Reset Pinhole
Extension Card Slot
Yes (2)
Yes (2)
Rack Mountable
Yes (19-inch, rack-mount kit included)
Input Voltage
100-240VAC, 50/60Hz, 0.55-0.3A
Power Rating
35W Max
Operating Temperature
32deg. F - 122deg. F / 0deg. C - 50deg. C
Storage Temperature
-22deg. F - 140deg. F / -30deg. C - 60deg. C
20% to 95% (non-condensing)
Dimensions (W x D x H)
17" x 8.3" x 1.7" / 430.0 x 201.2 x 42.0 mm
6.2lbs / 2800g
