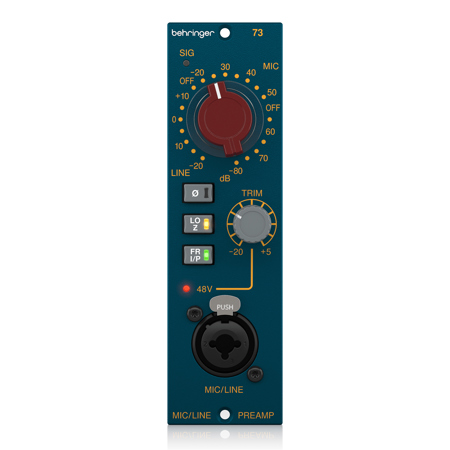

Behringer 73 Legendary Microphone Preamplifier with Custom-Built Midas Transformers

SKU: BEH0838AAY86 MFR: 0838-AAY86-001
Earn VIP Reward Points

Key Features

  • Experience pristine sound quality with custom-built Midas transformers for professional audio.
  • Achieve optimal gain control, perfect for recording vocals or instruments with precision.
  • Connect effortlessly with versatile XLR and 1/4" TRS inputs for any studio setup.
  • Utilize reliable +48V phantom power to energize your condenser microphones with ease.
  • Benefit from durable, professional-grade construction, ensuring longevity in your audio gear.
  • Enjoy a broad frequency response from 20 Hz to 20 kHz, capturing every sonic detail.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Behringer 73 Specifications

Audio Inputs

Audio Inputs

Jump to...
  • Microphone

    Type: XLR and 1/4" TRS combi socket, transformer balanced front Connection to 500 series rack input connector, transformer balanced rear
    Impedance: 1200 Ohm / 300 Ohm, balanced
    Max. input level: +10 dBu
    Sensitivity: -20 dB to -80 dB in 5 dB steps
    Mic EIN @ 80 dB gain, 22 Hz to 22 kHz: -125 dBu Unweighted

  • Line

    Type: XLR and 1/4" TRS combi socket, transformer balanced front Connection to 500 series rack input connector, transformer balanced rear
    Impedance: > 4 k Ohm, balanced
    Max. input level: +28 dBu
    Sensitivity: -20 dB to +10 dB in 5 dB steps
    Noise at unity gain, 22 Hz to 22 kHz: -83 dBu Unweighted

Audio Outputs

Jump to...
  • Type

    Connection to 500 series rack output connector, transformer balanced rear

  • Impedance

    < 100 Ohm balanced

  • Max. output level

    +28 dBu with 100 k Ohm load, +26 dBu with 600 Ohm Load

  • Frequency response

    20 Hz to 20 kHz, +/-0.5 dB

  • Distortion (THD+N)

    <0.07%, 50 Hz - 20 kHz, +4 dBu

  • Noise

    -83 dB, 22 Hz - 22 kHz unweighted

  • Circuit

    Discrete Class-A amplifiers

Controls

Jump to...
  • Buttons

    Phase/Polarity Reverse
    LO Z, 1200 Ohm/300 Ohm, operates on the mic input only
    FR I/P, switches between the 500 series rack input and front combi connectors

  • Controls

    Rotary sensitivity switch, +10 to -80 dB in 5 dB steps
    Trim control, -20 dB to +5 dB with unity gain center detent
    +48 V Phantom power, press trim control knob to enable/disable
    Off = < -25 dBu, Green = > -25 dBu, Red = > +26 dBu

Power Requirements

Jump to...
  • Voltage

    +16 V, -16 V and +48 V

  • Power consumption

    +16 V = < 200 mA, -16 V = < 15 mA

Physical

Jump to...
  • Standard operating temperature range

    41 Degree F - 113 Degree F (5 Degree C - 45 Degree C)

  • Dimensions (H x W x D)

    5.2 x 1.5 x 6.9" (132.1 x 37.9 x 176.4mm)

  • Weight

    2.4 lbs (1.1kg)

  • UPC Code

    4033653081900

About Behringer 73

The 1073 was an iconic piece of hardware that took the music industry by storm and transformed into a beloved fixture in studios worldwide. This unique-sounding mic preamp was a staple in renowned studios like Abbey Road, Sound City, and Capitol Studios, and helped shape the sound of some of the greatest legends like Led Zeppelin, the Beatles, Stevie Wonder and even Adele.

Today, we pay homage to that iconic studio cornerstone with the Behringer 73, a more compact version of the Behringer 1273. Developed with one of the original engineers, their valuable knowledge and experience ensure that the 73 not only maintains the great sound of the original but also meets the demands of modern production.

Compact
The 73 is a 1273 in a compact package and shares the same architecture. This makes it great for combining with your favorite EQ or compressor or building a whole array of preamps in one rack. The solid steel chassis gives it durability and provides isolation from other units in your setup.

Versatile Operation
The 73 is built around a Class A discrete circuit, which ensures the highest signal integrity with minimal coloration. The input and output stages are equipped with a high-quality, custom-built Midas transformer, which is great for maintaining signal clarity and integrity.

The First Steps
The 73 also has a versatile Gain control for various input types, such as mic, line and instrument, providing comprehensive control and flexibility for different recording scenarios. The stepped rotary Gain switch allows you to precisely set optimal input levels up to 80 dB with the least amount of noise and is also great for consistently recalling your settings for every mix scenario. The Trim control gives you even finer level control to your recording device. Combined with the precise 80 dB Gain control, you can get the perfect level for even the quietest of sources.

Additional Controls
• Phase Invert
• Hi/Lo Impedance
• Front/Rear Input Selection

An Amazing Value
The Behringer 73 imbues your sound palette with the depth, detail, and sonic richness reminiscent of classic modules. It's perfect for recording vocals or instruments. You can even have multiple 73s in a rack to dial in each mic in the chain exactly the way you need. Infuse your studio with the timeless analog warmth and textured layers that have defined generations of music.

Behringer 73 Features

  • High performance, compact 500 series premium microphone/line preamplifier based on the classic 1073 design
  • Class A, all discrete signal path for highest signal integrity
  • Custom-built Midas input and output transformers
  • Versatile Gain control to handle various type of inputs including mic, line and instrument
  • Electronically controlled resistor-stepped 80 dB rotary gain switch for extreme precision and low noise
  • Trim level control with integrated phantom power switch
  • Signal indicator and intuitive phantom power LED with protective automated switching
  • Illuminated switches for Phase, Hi/Lo Impedance and Front/Rear Input selection
  • Transformer-balanced inputs on combo connectors
  • Premium-quality components throughout for a crystal-clear audiophile signal path

Key Features

  • Experience pristine sound quality with custom-built Midas transformers for professional audio.
  • Achieve optimal gain control, perfect for recording vocals or instruments with precision.
  • Connect effortlessly with versatile XLR and 1/4" TRS inputs for any studio setup.
  • Utilize reliable +48V phantom power to energize your condenser microphones with ease.
  • Benefit from durable, professional-grade construction, ensuring longevity in your audio gear.
  • Enjoy a broad frequency response from 20 Hz to 20 kHz, capturing every sonic detail.

What's in the box:

  • Behringer 73 Legendary Microphone Preamplifier
  • Adorama 1 Year Limited Warranty
