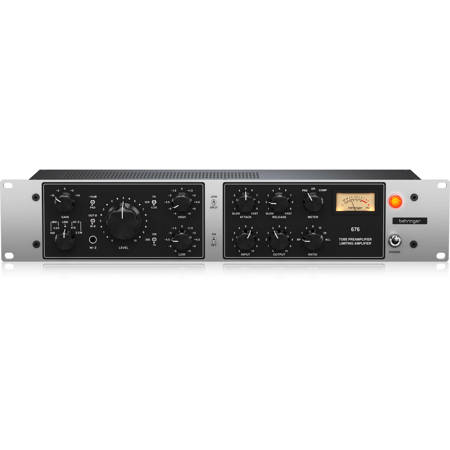

Behringer 676 Classic Vacuum Tube Preamplifier and FET-Style Compressor

SKU: BEH0838ABC86 MFR: 0838-ABC86-US1
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality for vocals and instruments with this tube preamplifier.
  • Dial in your perfect tone using precise gain control and versatile input impedance options.
  • Power your condenser microphones effortlessly with built-in +48V phantom power.
  • Experience enhanced audio clarity and warmth, ideal for professional studio recordings.
  • Connect seamlessly to your existing setup thanks to robust XLR connectivity.
  • Ensure consistent audio levels and dynamics with the integrated FET-style compressor.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Behringer 676 Specifications

Audio Inputs

Audio Inputs

Jump to...
  • Microphone

    Type: XLR, transformer balanced
    Impedance: 500 Ohm / 2 k Ohm
    Max. input level: +14 dBu pad in, -1 dB pad out
    CMRR: Typically -90 dBu @ 1 kHz, maximum gain
    Frequency response: 20 Hz - 20 kHz +/-1 dB
    EIN noise at maximum gain: -122 dBu, 22 Hz - 22 kHz unweighted

  • Microphone (Contd.)

    Distortion (THD+N): <0.25% 50 Hz - 20 kHz, +4 dBu output
    Maximum gain: +64 dB
    Pad: Toggle switch, 0 dB / -15 dB
    +48 V: Toggle switch, applies +48 V phantom power to the mic input XLR

  • Line

    Type: XLR, transformer balanced
    Impedance: 15 k Ohm
    Max. input level: +30 dBu
    CMRR: Typically -80 dBu @ 1 kHz, unity gain
    Frequency response: 20 Hz - 20 kHz +/-1 dB
    Noise at unity gain: -79 dBu, 22 Hz - 22 kHz unweighted
    Distortion (THD+N): <0.25% 50 Hz - 20 kHz, +4 dBu output
    Maximum gain: +20 dB

  • HI -Z

    Type: 6.35 mm (1/4") TRS jack, unbalanced
    Impedance: 47 k Ohm / 2.2 M Ohm
    Max. input level: +12 dBu
    Frequency response: 20 Hz - 20 kHz +/-1 dB
    EIN Noise at maximum gain: -105 dBu, 22 Hz - 22 kHz unweighted
    Distortion (THD+N): <0.25% 50 Hz - 20 kHz, +4 dBu output
    Maximum gain: +44 dB

  • Compressor

    Type: XLR, transformer balanced
    Impedance: 15 k Ohm / 600 Ohm
    Max. input level: +30 dBu
    CMRR: Typically -80 dBu @ 1 kHz, unity gain
    Frequency response: 20 Hz - 20 kHz +/-1 dB
    Noise at unity gain: -85 dBu, 22 Hz - 22 kHz unweighted
    Distortion (THD+N): <0.25% 50 Hz - 20 kHz @ unity gain, +4 dBu output
    Maximum gain: +40 dB

Audio Outputs

Jump to...
  • Preamplifier

    Type: XLR, transformer balanced
    Impedance: 90 Ohm balanced
    Max. output level: +21 dBu
    Phase reverse: Toggle switch, reverses the polarity of the output signal
    Split/Join: Toggle switch, join connects the preamp output directly to the compressor input

  • Compressor

    Type: XLR, transformer balanced
    Impedance: 110 Ohm balanced
    Max. output level: +26 dBu

Equalizer

Jump to...
  • Low frequency select

    Toggle switch, 70 Hz / 100 Hz / 200 Hz, shelving

  • Low frequency cut/boost

    Rotary switch, -9 dB, -6 dB, -4.5 dB, -3 dB, -1.5 dB, 0 dB, +1.5 dB, +3 dB, +4.5 dB, +6 dB, +9 dB

  • High frequency select

    Toggle switch, 4.5 kHz / 7 k Hz / 10 kHz, shelving

  • High frequency cut/boost

    Rotary switch, -9 dB, -6 dB, -4.5 dB, -3 dB, -1.5 dB, 0 dB, +1.5 dB, +3 dB, +4.5 dB, +6 dB, +9 dB

Limiting Amplifier (Compressor)

Jump to...
  • Attack, slow - fast control

    Range 800 micros to 20 micros

  • Release, slow - fast control

    Range 1.1 s to 50 ms

  • Input level

    Off to unity gain

  • Output level

    Off to +40 dB gain

  • Ratio

    Rotary switch, BP = true bypass, 1:1, 4:1, 8:1, 12:1, 20:1, All > 100:1

  • Meter source select

    Rotary switch, preamp output/gain reduction/compressor output

  • VU Meter

    -20 dB to +3 dB (0 VU = +4 dBu)

  • Meter calibration trimmer

    Set zero on the VU meter when in GR mode

Power Requirements

Jump to...
  • Mains Voltage

    100 - 240 V-, 50/60 Hz

  • Power consumption

    28 W max

  • Mains connector

    Standard IEC receptacle

  • Fuse

    T 1.6 A H 250 V

  • Power switch

    Toggle switch off/on with LED power indicator

Physical

Jump to...
  • Standard operating temperature range

    41 Degree F - 113 Degree F (5 Degree C - 45 Degree C)

  • Dimensions (H x W x D)

    3.47 x 19 x 6.30" (88 x 483 x 160mm)

  • Weight

    7.71 lbs (3.50kg)

  • UPC Code

    4033653081870

About Behringer 676

The classic 6176 tube mic preamp and FET compressor served as the secret sauce for some of music history's most well-known artists and recording engineers. From artists such as Norah Jones to John Mayer, and producers like Tony Visconti and Jack Puig, the 6176 has contributed to the recordings of numerous chart-topping hits and critically acclaimed albums, further solidifying its reputation in the industry.

We want to keep that classic alive with the Behringer 676, a classic mic/line tube preamp and compressor with custom-built Midas transformers, premium 12AX7/ECC83S and 12AT7/6072 tubes for a warm and rich sound. In just a single rack unit, the 676 provides a versatile range of tonal possibilities that can bring that same timeless quality to any recording.

Freedom to Fine-Tune
676 is made for simplicity and ease of use. The preamp section features controls for input gain, impedance, polarity, high or low frequency shelf, as well as high or low boost/cut. It can even be operated independently of the compressor with the flip of the Join/Split switch.

This circuit has been praised by so many producers and engineers for its ability to give you complete freedom to fine-tune and bring the best out of any vocal or instrument before it hits the compressor.

Effortless Dynamic Control
Featuring a powerful FET compressor with an ultra-fast attack time of 20 to 800 microseconds, 676 ensures precise control over transients. Its adjustable release time, from 50 to 1100 milliseconds, allows for tailored control over dynamics. A vintage-style meter displays both gain reduction and output levels, providing essential visual feedback. This blend of speed, versatility, and classic aesthetics makes 676 an invaluable asset for any audio setup. It can go from slow and smooth leveling for vocals up to a fast and aggressive snap for drums and bass.

Ready for Your Studio!
The 2U rackmount chassis of 676 is extremely sturdy and is designed to take up only a small portion of your valuable rack space. It happily sits in a rack case if you sometimes record on location or want to use it for live sound applications where portability and mobility are key. Either way, 676 is sure to be a perfect fit in your studio. You can even wire up the preamp and compressor completely independent of each other.

An Amazing Value
The Behringer 676 is perfect for recording vocals and instruments with the same analog warmth and detail that made it a favorite of engineers and helped make stars of countless artists throughout the years.

Behringer 676 Features

  • Classic microphone/line tube preamplifier based on the classic 6176 design
  • Classic FET-style compressor based on the legendary 6176 compressor
  • Preamplifier and compressor can be operated independently or simultaneously
  • Premium selection 12AX7/ ECC83S and 12AT7/6072 tubes
  • Custom-built Midas input and output transformers
  • Rotary input selector switch gives a choice of input impedance for the Mic and Hi-Z inputs
  • Input gain trim with +/-10 dB range and output level controls input and output stage coloration
  • 2-band shelving equalizer with switchable filters
  • Switchable pad, polarity reverse, and 48 V phantom power
  • Compressor with ultra-fast attack time: 20 to 800 microseconds
  • Compressor with adjustable release time: 50 to 1100 milliseconds
  • Vintage-style meter features both gain reduction and output
  • Transformer-balanced inputs and outputs on XLR connectors
  • Rugged 2U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply

Key Features

  • Achieve pristine sound quality for vocals and instruments with this tube preamplifier.
  • Dial in your perfect tone using precise gain control and versatile input impedance options.
  • Power your condenser microphones effortlessly with built-in +48V phantom power.
  • Experience enhanced audio clarity and warmth, ideal for professional studio recordings.
  • Connect seamlessly to your existing setup thanks to robust XLR connectivity.
  • Ensure consistent audio levels and dynamics with the integrated FET-style compressor.

What's in the box:

  • Behringer 676 Classic Vacuum Tube Preamplifier and FET-Style Compressor
  • IEC Power Cable
  • Adorama 1 Year Limited Warranty
