GDU-Tech S200 Series Dual-Camera Enterprise Drone with 3x ADC-200A Battery, ACD-200GJ Charger Kit and RTK Module

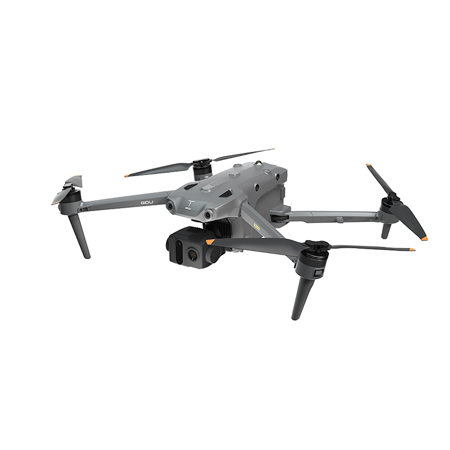

The GDU-S200 aircraft features a foldable design and is equipped with omnidirectional horizontal, upward and downward vision systems, as well as an infrared sensing system, allowing it to hover and fly stably both indoors and outdoors. It also supports auto RTH and omnidirectional obstacle avoidance. It can reach a maximum flight speed of the aircraft is 75.6 km/h (21 m/s) and offers a maximum flight time of approximately 38 minutes.

The aircraft is equipped with positioning beacons for easy identification during flight. The underside of the aircraft has an auxiliary light for improved visual positioning at night or in low-light conditions, enhancing safety during takeoff, landing, and flight. A PSDK interface on the top of the aircraft allows for various expansion options.

The PYK-200 Enterprise remote controller features a built-in 7-inch 1920 x 1080p high-brightness touchscreen and runs on the Android system. With the app pre-installed, it can connect directly to the aircraft for operation. When paired with complete buttons, it allows various aircraft and camera operations. It also supports Wi-Fi, Bluetooth, and satellite positioning. Its maximum operating time is approximately 3 hours.

- S200 Drone -

Industrial Flagship, New Level Application
• 720 Degree Obstacle Avoidance
• IP43 Ingress Protection Level
• 45min Flight Time
• AI Smart Recognition

The powerful power system design, more comprehensive industry application load, ultra-long battery life; equipped with the industry's leading octa-core chip, total computing power of 21T, with powerful visual intelligence AI recognition ability, can achieve cloud-edge-end collaborative work; streamlined body design, compact and portable, with powerful performance

Satellite Communication, Connect at Ease
It has the capability of direct satellite communication, which can realize message communication in the area without the coverage of ground communication network, break the limitation of traditional communication methods, solve the emergency communication problem in the scenario without network, and provide a strong communication guarantee for sea navigation, field exploration, disaster rescue and so on.

• Highly reliable
• Extremely safe
• Ultra compatible

5G Signal, 4K Live Streaming
5G link can achieve ultra-clear live streaming. Across the data link restrictions, it can also ensure that business is not interrupted, the status is visible, and the equipment is controllable in the interference environment, providing a new solution for traffic dredging, security inspection, emergency rescue, traffic logistics and other scenarios.

Visual Aid for Safe Return
It can accurately detect obstacles within the target range, and can automatically return to home when the positioning signal is weakened or lost. Excellent obstacle avoidance capabilities bring a reliable flight experience, and can flexibly cope with complex environments and various operating scenarios.

Visual Navigation for Indoor Inspection
The UAV is based on indoor autonomous inspection technology and has the ability to fly autonomous routes in indoor scenarios without GNSS signals such as substations and warehouses. It is expected to achieve fully automatic and intelligent unattended inspections with the combination of Docking Station.

250mm Telephoto Camera
Supports 10x optical zoom and 160x max hybrid zoom, enabling clear shooting of targets at different distances, greatly improving work efficiency

High Pixel Wide Angle Camera
50MP,Delicate and clear imaging, More details can be seen at a glance

AI Recognition System
Multi-sensor intelligent linkage can realize real-time automatic target recognition, image following and edge recognition, achieving efficient operation and accurate data collection at the same time.

100T Edge Computing Power
21T on-board computing power + 100T edge computing power can be customized and flexibly expanded AI scene recognition algorithms; the distributed AI platform supports cloud-edge-device collaboration.

Multiple Loads, Widely Applicable
It has multiple loads such as dual-sensor, trio-sensor, quadra-sensor cameras, megaphones, searchlights, AI boxes, etc. to meet the complex operation requirements of multi-task scenarios.

GDU Flight II
GDU Flight II is a companion app for S200 series UAVs. It integrates industry application functions and is simple and efficient to operate. You can use the flight planning function to set routes, control drones to operate autonomously, simplify work processes, and improve work efficiency.

Unmanned Duty, Efficient Flight Inspection
The S200 series drones are integrated with K02 Auto Docking Station. They have super adaptability for battery replacement/charging, and cloud control is always on standby, effectively empowering the drones to fly autonomously.

GDU UVER Smart Management Platform
UVER intelligent management and control platform integrates information aggregation, information processing and synchronization functions. When used with GDU Flight II, data can be uploaded to the cloud, data interoperability can be achieved, and aircraft capabilities can be expanded.

• Cloud deployment
• Date synchronization
• Open registration
• One-stop operation and maintenance monitoring

- Intelligent Flight Battery for S200 Series Drone -
The GDU ADC-200A Intelligent Flight Battery is a high-capacity power source designed specifically for the S200 Series drones. With an 8000mAh LiPo 4S cell providing 115Wh of energy, it ensures extended flight time and stable performance in demanding environments. Built-in intelligent protection features guard against over-current, over-voltage, short-circuit, and over-temperature risks, delivering safe and reliable operation.

Optimized for efficient charging with the official charging hub, the ADC-200A supports a maximum charging power of 272W, reaching a full charge in about 60 minutes under ideal conditions. The battery is engineered for wide operating temperatures (-20 Degree C to +55 Degree C) to meet the needs of diverse applications, from inspection to emergency response.

Features
• High Capacity Power: 8000mAh, 115Wh LiPo 4S cell for extended flight endurance
• Fast Charging: Supports up to 272W charging; full charge in 60 minutes (Approx.) (5-40 Degree C)
• Smart Safety Protection: Integrated safeguards against backflow, short-circuit, over-current, over-voltage, and overheating
• Durability & Reliability: Built to withstand rugged missions, with proper storage extending battery lifespan
• Official Compatibility: Designed for GDU S200 Series drones; ensure optimal performance with official chargers and hubs

- Smart Charging Hub for S200 Series UAV Battery -The GDU ACD-200GJ Smart Charging Hub is a high-efficiency charging solution designed for the S200 Series UAV batteries. Capable of charging up to three flight batteries in sequence, it intelligently detects battery power levels and prioritizes charging higher-powered batteries first.

With advanced safety features including anti-backflow, short-circuit, over-voltage, over-current, and over-temperature protection, the ACD-200GJ ensures reliable and secure charging in all conditions. The hub delivers up to 272W of output power and can fully charge a flight battery in just 60 minutes at room temperature. Compact and lightweight, it is ideal for professional field operations requiring efficient battery turnaround.

Features
• Optimized Multi-Battery Charging - Supports up to 3 S200 flight batteries, charging in intelligent sequence based on power level
• Fast Charging - Fully charges a flight battery in approximately 60 minutes, or restores from 20%-90% in about 25 minutes (at 25 Degree C)
• Intelligent LED Indicators - Provides clear status updates: charging, completed, temperature warning, or malfunction
• Comprehensive Protection - Built-in anti-backflow, short-circuit, over-voltage, over-current, and over-temperature safeguards
• Compact & Lightweight - At only 220g, it's portable and practical for professional UAV operations

- A-RTK-200 RTK Module -
The RTK module can be combined with network RTK or customized network RTK services to provide high-precision centimeter-level positioning functions.

Features
• Combines with network RTK for centimeter-level positioning accuracy
• Supports customized RTK services for high-precision location tracking
