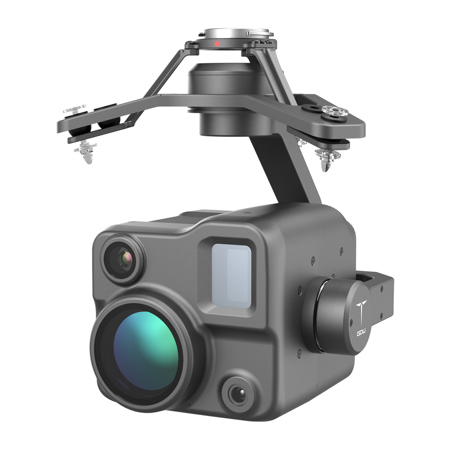

GDU-Tech PWG01-SE Quadruple Smart Gimbal Camera for S400 Series Drone

The integrated solution of four functional modules (excluding infrared thermal camera included in the five-module version) supports long-distance operations both day and night. The all-in-one design with a mechanically stabilized three-axis gimbal weighs no greater than 1.1 kg.

Wide Camera for Ultra-Clear Detail
1/0.98" wide-angle sensor and 50MP ultra-high resolution enable a larger photosensitive area and increased light intake, rendering purer and cleaner images. Combined with AI-powered hypersensitive technology, the solution delivers high dynamic range imaging even in night scenes or strong backlight, precisely reproducing both shadow details and highlight gradations.

34x Optical Zoom for Boundless Telephoto Capability
Featuring 34x continuous optical zoom and up to 544x hybrid zoom, this solution supports reading license plates as far as 800 m away, pushing the boundaries of telephoto imaging with exceptional clarity.

Three-Axis Mechanical Gimbal & EIS Technology
The three-axis mechanical gimbal and EIS technology ensures stable, sharp, and smooth video capture, even during telephoto shooting at magnification above 6x.

4K Night Vision for Seamless Operations in Total Darkness
4K AI-enhanced full-color night vision supports three selectable modes with ISO sensitivity reaching up to 2400000. IR Cut mode enables grayscale night vision by capturing the full 400-1000 nm light spectrum, delivering bright, clear imagery in complete darkness. When paired with the NIR auxiliary light, the system can clearly illuminate subjects up to 120 meters away in no-light environments.

AI Tracking with Relentless Precision
AI-advanced tracking function offers unerring accuracy. Once a target is selected, continuous tracking is maintained with precise positioning and automatic magnification adjustment. Seamless switching between targets is supported, and the target momentarily lost can be automatically reacquired.

Laser Range finding up to 2000m
The integrated laser rangefinder offers a maximum range of 2000m. With intelligent laser-assisted pinpointing, the target's coordinates (latitude and longitude) and distance from the aircraft can be measured with high accuracy.
