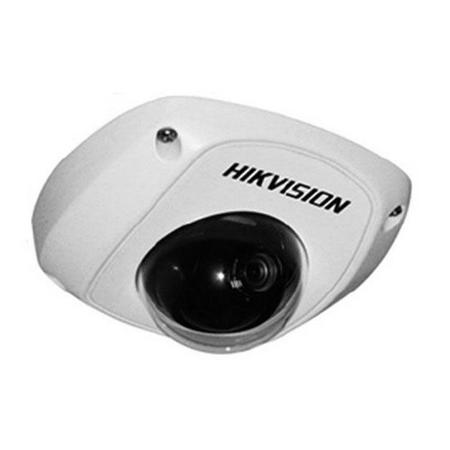

Hikvision 1.3MP Network Outdoor Mini Dome Camera with 4mm Lens
See all Hikvision items

Hikvision 1.3MP IP66 Network Outdoor Mini Dome Camera with 4mm Lens, H264, Elec. Day/Night, PoE/12VDC

SKU: HV2CD2510F
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Hikvision 1.3MP Network Outdoor Mini Dome Camera with 4mm Lens Specifications

  • Image Sensor

    1/3" progressive scan CMOS

  • Min. Illumination

    Color: 0.01 Lux a tF1.2, AGC On; 0.028 Lux at F2.0, AGC On
    B/W: 0.001 Lux at F1.2, AGC On; 0.0028 Lux at F2.0. AGC On

  • Shutter Time

    1/3s - 1/100,000s

  • Lens

    4mm at F2.0 (2.8mm, 6mm optional)
    Angle of view: 73.1 Degree (4mm)

  • Lens Mount

    M12

  • Day & Night

    Electronic

  • Adjustment Angle

    Pan: 15 Degree , Tilt: 0 - 90 Degree, Rotation: 15 Degree

  • Digital Nose Reduction

    3D DNR

  • Wide Dynamic Range

    Digital WDR

  • Backlight Compensation

    Yes, zone configurable

  • Video Compression

    H.264 / MJPEG

  • H.264 Compression Profile

    Baseline/ Main profile

  • Bit Rate

    32 Kbps - 8 Mbps

  • Dual Stream

    Yes

  • Max Image Resolution

    1280 x 960

  • Frame Rate

    50Hz: 25fps (1280 x 960), 25fps (1280 x 720), 25fps (704 x 576), 25fps (640 x 480)
    60Hz: 30fps (1280 x 960), 30fps (1280 x 720), 30fps (704 x 576), 30fps (640 x 480)

  • Image Settings

    Rotate mode, saturation, brightness, contrast adjustable by client software or web browser

  • Network Storage

    NAS

  • Alarm Trigger

    Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception

  • Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

  • Security

    User Authentication, Watermark, IP address filtering, anonymous access

  • System Compatibility

    ONVIF, PSIA, CGI, ISAPI

  • General Functionalities (Security)

    Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark

  • Communication Interface

    1 RJ45 10 M/100 M Ethernet port

  • On-board Storage

    Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

  • Reset Button

    Yes

  • Operating Conditions

    Minus 30 Degree C - 60 Degree C (-22 Degree F - 140 Degree F), humidity 95% or less (non-condensing)

  • Power Supply

    12 VDC 10%, PoE (802.3af)

  • Power Consumption

    Max. 4W

  • Weather Proof

    IP66

  • Impact Protection

    IEC60068-2-75Eh, 20J; EN50102, up to IK10

  • Dimensions

    3.93 x 3.84 x 1.83" (99.9 x 97.5 x 46.5 mm)

  • Weight

    0.88 lbs (400 g)

About Hikvision 1.3MP Network Outdoor Mini Dome Camera with 4mm Lens

Hikvision's great brand reputation is built on producing quality video and surveillance components, and although it may be small, this outdoor dome-style camera is no exception. With a whole host of smart functions, helpful interface points, additional security features, and a sturdy design, it's ready to keep a watchful eye on what's important to you all year long.

The camera is built around a 1.3MP progressive-scan CMOS sensor, which records HD video footage as well as still images. The unit supports expandable onboard storage, and transmits via Ethernet, with the onboard storage supporting expansion up to 64GB. Dual streaming is also supported. Additional security features include motion detection, a tampering alarm, network disconnect, and user authentication.

The housing of this camera is also noteworthy with its IP66 weatherproof rating, and it's also received an impact resistance rating of IK10, meaning it can handle inclement weather and would-be vandals or intruders equally well.

• Up to 1.3MP resolution
• DWDR & BLC
• 3D DNR
• On-board storage, up to 64GB
• IP66
• Vandal-proof

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1.3MP CMOS sensor
  • HD video capture
  • Still-image capture
  • IP66 weatherproofing
  • IK10 impact-resistance rating
  • Tampering alarm

What's in the box:

  • Hikvision 1.3MP Network Outdoor Mini Dome Camera with 4mm Lens
  • Hikvision 3 Year Limited Warranty
