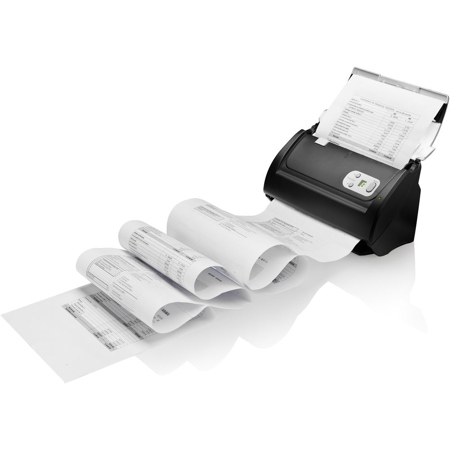

Plustek SmartOffice PS3060U Duplex Grayscale Document Scanner, 600 dpi Optical Resolution, 30 ppm/60 ipm Scanning Speed, 50 Sheets Paper Capacity

SKU: ICDPS3060U

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Plustek SmartOffice PS3060U Specifications

  • Image Sensor

    CCD x2

  • Light Source

    LED

  • Optical Resolution

    600dpi

  • Hardware Resolution

    600 x 600dpi

  • ADF Capacity

    50 sheets (A4/ Letter, 70 g/m2 or 18Lbs), Max. thickness under 5mm (0.2")
    20 sheets (Business Cards)
    Plastic Card, Max. thickness under 1.2mm.

  • Scanning Speed ( ADF )

    30ppm/ 60ipm (Grayscale mode, 200dpi, A4 Portrait)
    30ppm/ 60ipm (B&W mode, 200dpi, A4 Portrait)
    20ppm/ 40ipm (Color mode, 200dpi, A4 Portrait)

  • Scanning Area (W x L)

    Max: 8.5 x 200" / 216 x 5080mm
    Min: 0.52 x 0.52" / 13.2 x 13.2mm

  • Acceptable Paper Sizes (W x L)

    Max: 8.66 x 200" / 220 x 5080mm
    Min: 2.5 x 2" / 63.5 x 50.8mm

  • Acceptable Paper Weight (Thickness)

    50 to 105 g/m2 (14 to 28Lbs)

  • Multi-feed Detection

    With ultrasonic technology

  • Daily Duty Scan ( Sheets )

    4000

  • Roller Lifetime (Scans)

    300000

  • Pad Lifetime (Scans)

    50000

  • Action Button

    3 Buttons: Up, Down, Scan.
    9 Function Keys. All Customizable.

  • Interface

    USB 2.0

  • Protocol

    TWAIN Compliant

  • Operating System

    Windows XP / Vista / 7 / 8 / 10
    Mac OS X 10.8.x/ 10.9.x/ 10.10.x
    LINUX SANE for Systems Integrator.

  • Hardware Requirements

    Pentium IV 2.0GHz processor (Pentium IV 3.0GHz processor recommended)
    CD-ROM Driver
    One available USB Port (USB 2.0 recommended)
    1GB RAM or higher recommended
    800MB free HDD space (1GB or larger recommended)

  • Power Supply

    24V DC/ 0.75A

  • Dimensions (W x D x H)

    10.35 x 5.04 x 5.83" / 263 x 128 x 148mm

  • Weight

    3.66lbs / 1.66kg

  • UPC Code

    783064426312

About Plustek SmartOffice PS3060U

Intelligent Misfeed Function
A redesigned 50 page Automatic Document Feeder with a 4000 page per day duty cycle enable the PS3060U to be used in any application requiring frequent document or rigid card scanning. With the built-in ultrasonic multi-feed detection capability, the SmartOffice PS3060U scanner prevents multi-feeds by checking the thickness of documents and detecting overlapping pages. When a multi-feed is detected, the scan halts and a warning message is displayed. This feature is turned on by default so that it automatically improves the scanning experience and results.

• 30ppm/60ipm scan speed in grayscale mode
• 4000 pages per day duty cycle
• Ultrasonic multi-feed detection
• Robust paper handling
• Scans long documents up to 200" (5080mm)
• 50 sheet Automatic Document Feeder
• Small footprint - easily transportable and fits in crowed office
• Single touch scanning to popular formats including Searchable PDF, PDF/A, Word, Excel, JPEG and TIFF
• Automatically wakes up when documents are inserted in the feeder
• Scans rigid cards including insurance cards, ID cards, drivers licenses etc

Versatile Document Handling
Combining fast document feeding with the advantage of robust paper handling, the SmartOffice PS3060U is an ideal choice for workgroups who have a demanding workload and limited budget. Plastic and other rigid cards such as ID cards, Drivers Licenses, Membership Cards and Insurance Cards as well as long documents up to 200" are scanned without additional adjustments or additional set up. Mixed batches of documents can also be scanned without sorting, thanks to the class-leading paper handling and image processing of the PS3060U.

Easy to Use
With Plustek's exclusive software application DocAction, users need only to properly place the document on the scanner and press the "Scan" button. What's best is that the scanned image can then be sent directly to your desired destination application. The features allow you to access programs such as Excel, Word and your Email client and OCR and BCR seamlessly, as well as scan directly to searchable PDF, PDF/A, Copy and Save to File.

Exceptional Productivity
The SmartOffice PS3060U features one of the most advanced document feeding and separation system in the industry. Advanced Image Processing automatically detects color documents, adjusts, straightens and crops documents with no operator intervention. There is no need to separate documents by size or type, resulting in higher OCR accuracy and fewer rescans. Industry standard TWAIN and WIA drivers ensure compatibility with thousands of image enabled applications.

Functions
The SmartOffice PS3060U has the following features

Auto Threshold
Automatically thresholds the current image into a binary black and white image.

Auto Rotate
Automatically rotates document based on the contents of the document.

Auto Crop & Deskew
Automatically straightens and crops image to the document's actual size.

Auto Mode
Automatically detects document color and scans document in color, grayscale or black & white mode.

Multi-Image Output
Scans and saves documents in 2 or 3 modes at same time.

Color Dropout
Removes red, green or blue color when scanning forms.

Blank Page Removal
Automatically removes blank pages without manual editing.

Plustek DocAction
Button utility to simplify document scanning. DocAction enables you to specify your personalized scanning configuration settings and scan documents with the click of a button. Scanned documents are automatically sent directly to Printer, Email, Folder or FTP. DocAction also enables you to scan directly to many imaging and document management applications. DocAction saves scanned documents in all common imaging formats including: JPEG, TIFF and PDF.

ABBYY FineReader 12 Sprint
Unlocks the data inside paper-based documents, images and PDF files with enhanced accuracy that eliminates the need for retyping and reformatting. Tool that increases your productivity and efficiency which comes with simple user interface and supports recognition up to 183 languages.

NewSoft Presto! PageManager
Presto! PageManager 9 SE is an easy to use, front-end page client that provides for all your documents. Capabilities include Capture, Preview, Convert and Deliver all your paper and electronic documents to a designated location. You simply drag-&-drop to stack or merge files or use the embedded OCR (Optical Character Recognition) feature to convert them to a searchable PDF.feature to convert them to a searchable PDF.

30ppm/60ipm
Fast duplex scanning at speeds up to 30 pages per minute in Grayscale mode.

50 Pages
Effective scanning with large Automatic Document Feeder up to 50 pages.

Business Card
Digitize paper business cards into easily-managed and sorted contacts and turn your business cards into information.

ID Card
Scans embossed rigid cards such as ID cards, insurance cards, drivers licenses and credit cards up to 1.2mm. Perfect for vertical applications such as healthcare, pharmacy, accounting. hospitality, etc

Searchable Pdf
Save paper documents as searchable PDFs at the touch of a button and find your information faster.

Cloud
Allows you to easily upload files or scanned images to a compatible server of your choice including Google Docs, Microsoft SharePoint, Box, Dropbox, Twitter and FTP servers
