IOGEAR 8 Port PS2 MiniView Ultra KVM Switch Kit Specifications

  • Max Computer Connections

    (8) Direct connections or 512 Daisy Chain or Cascading

  • PC Connectors

    (8) HDB15 for Keyboard, Mouse and Monitor
    (8) Audio connectors
    (8) Microphone connectors

  • Console Connectors

    (1) Microphone
    (1) HDDB15 female Monitor
    (1) Audio
    (1) USB Type A Mouse
    (1) USB Type A Keyboard

  • Video Resolution

    2048 x 1536 @ 60 Hz; DDC2B

  • Scan Interval

    1-255 seconds

  • Port Selection

    Keyboard and mouse controlled; also supports special keys on Sun and Mac keyboards

  • Enclosure

    Metal

  • System Requirements 1

    Console: VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation
    USB mouse & keyboard
    The following equipment must be installed on each computer: VGA, SVGA, or Multisync card

  • System Requirements 2

    Either a Type-A USB port, or PS/2 mouse and keyboard ports
    To share audio, a multimedia sound card is required. Only support 2-piece, powered speakers systems
    Cables: For PS/2 computers, use IOGEAR part number G2L530XP; for USB computers, use IOGEAR part number G2L530XU

  • Power Requirements

    Voltage DC 5V
    2.6 Amp

  • Dimensions (W x H x D)

    17 x 1.75 x 6" / 43.18 x 4.45 x 15.24 cm

  • Weight

    7.8 lbs. (3.51 kg.)

  • UPC Code

    881317000699

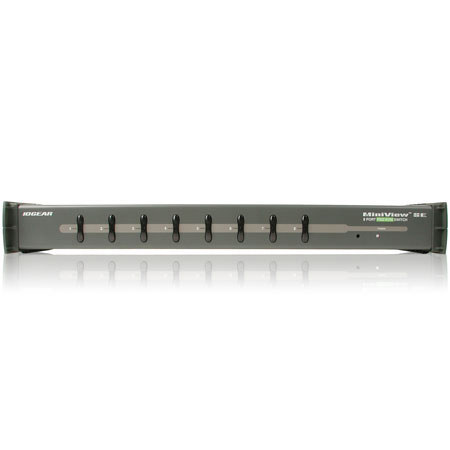

About IOGEAR 8 Port PS2 MiniView Ultra KVM Switch Kit

IOGEAR's eight-port MiniView Ultra is just the tool you need to help reduce the need for redundant hardware. Eight monitors, mice and keyboards are simply too expensive, bulky and downright inconvenient for most system administrators. Why bother when you can control all eight, or even up to 512 computers with a single keyboard, monitor and mouse.

But the MiniView Ultra is much more than a simple eight-port KVM switch. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while the On Screen Display technology allows you to assign a unique name to each computer and access it via a slick, menu-driven interface. With its 1U, 19" rack-mountable casing and status-monitoring LEDs, the MiniView Ultra is the perfect switch for your server room or any other multi-computer environment. Four 6' long and four 10' long KVM cables included.

IOGEAR 8 Port PS2 MiniView Ultra KVM Switch Kit Features

  • Use one keyboard, monitor and mouse to control 8 computers
  • Control up to 512 computers by connecting multiple GCS138s together
  • On Screen Display provides a convenient method for accessing the computers
  • Connected computers can be added or removed from the setup without disturbing the other computers
  • Keyboard/mouse translation allows PS/2 peripherals to control both PS/2 and serial-based computers
  • Plug-n-Play monitor support. High-resolution video support (up to 1920 x 1440)
  • Easy to install - no software required
  • Built in AutoScan mode
  • LED allow for easy status monitoring

Key Features

  • Use one keyboard, monitor and mouse to control 8 computers
  • Control up to 512 computers by connecting multiple GCS138s together
  • On Screen Display provides a convenient method for accessing the computers
  • Easy to install - no software required
  • Built in AutoScan mode
  • LED allow for easy status monitoring

What's in the box:

  • IOGEAR 1 x MiniView Ultra KVM Switch
  • 1 x Power Adapter
  • 1 x Rack Mount Kit
  • 1 x Installation Manual
  • 1 x Quick Start Guide
  • 1 x Warranty Registration Card
  • 4 x KVM Cables (6')
  • 4 x KVM Cables (10')
  • IOGEAR 3 Year Limited Warranty
