IOGEAR MiniView GCS1774 4-Port Symphony KVM Switch
See all Iogear items

IOGEAR MiniView GCS1774 4-Port Symphony KVM Switch, 2048 x 1536 Resolution, USB, VGA, SVGA Interface

SKU: IGGCS1774
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

IOGEAR GCS1774 Specifications

  • Max Computer Connections

    Direct: 4
    Daisy Chained: Up to 127

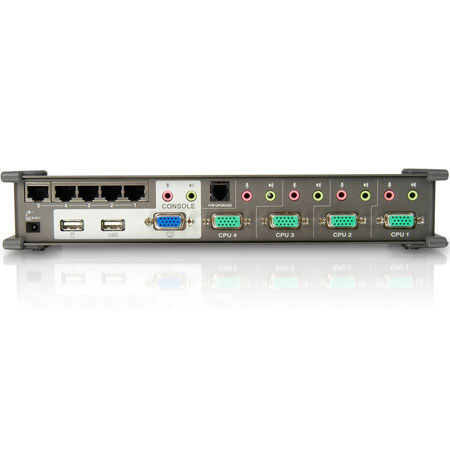

  • PC Connectors

    Monitor: HDB-15 x 1
    Peripheral: USB 2.0 x 4
    Keyboard: USB x 4
    Mouse: USB x 4
    10/100 Ethernet: RJ45 x 5
    Flash ROM Upgrade: RJ11 Socket x 1
    Audio: Speaker x 4
    Microphone Jack x 4

  • Console Connectors

    Keyboard: USB Type A socket x 1
    Monitor: HDB15 Female x 1
    Audio: Speaker x 1
    Microphone Jack x 1
    Mouse: USB Type A socket x 1

  • Video Resolution

    2048 x 1536

  • Scan Interval

    1-99 seconds (5 sec default)

  • Port Selection

    Hot keys and front panel switches

  • Enclosure

    Metal

  • System Requirements

    Console: VGA/SVGA Monitor
    1 x USB mouse
    1 x USB keyboard
    Computer: 1 x VGA, SVGA or MultiSync ports 1 x Type A USB port for keyboard/mouse cable
    1 x Type A USB 2.0 port for USB hub cable
    Audio: Requires 2-piece powered speaker system
    Operating Systems: Supports Windows 98SE/ME/2000/XP; Mac OS 8.6 or higher; Solaris; Linux

  • Voltage

    1 x DC 5.3V; 2.4A

  • Power Consumption

    DC 5.3V; 5W; 1000mA

  • Operating Temperature

    0-50 Celsius

  • Storage Temperature

    -20-60 Celsius

  • Humidity

    0-80% RH

  • Cable Length

    6 ft (1.8M)

  • LAN Connection

    10/100 Mbps

  • Link LEDs

    5 (green)

  • USB Peripherals LEDs

    2 (green)

  • LAN LEDs

    5 (green)

  • Dimensions (W x H x D)

    3.5 x 2.2 x 10.6" (8.9 x 5.6 x 26.9 cm)

  • Weight

    2.0 lbs (0.9 kg)

  • UPC Code

    881317004529

About IOGEAR GCS1774

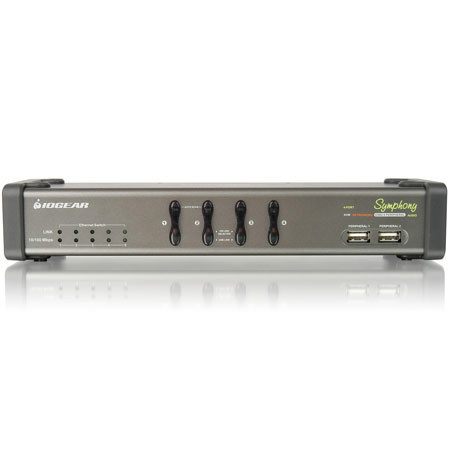

The IOGEAR GCS1774 4-Port Miniview Symphony Switch represents the new wave in KVM technology. The Symphony allows you to control four computers using a single VGA monitor, USB keyboard and mouse. In addition, it has a built-in USB 2.0 hub, Ethernet 10/100 switch and audio sharing capabilities. With its built-in USB 2.0 High Speed hub, slow transfer rates are a thing of the past. Fully compatible with USB 2.0 standards, this KVM allows you to share your USB peripherals and transfer data at up to 480 Mbps.

In addition, the audio ports allow you to connect one set of speakers and microphone and share them among your computers. To complement your KVM setup, IOGEAR's Symphony KVM sports a full-featured Ethernet 10/100 switch. This built-in Ethernet switch allows you to easily network and share internet with your computers. Among its many features, it supports auto-sensing, 10/100 Mbps speed and is fully compliant with 802.3 networking standard.

IOGEAR GCS1774 Features

  • Four 6 ft (1.8m) cables included
  • Multi-function USB KVM switch integrates a USB 2.0 hub, Ethernet switch and audio
  • Supports most wireless keyboards and mice
  • Controls four computers with a single VGA monitor, USB keyboard and mouse
  • Built-in USB 2.0 peripheral sharing to share printers, scanners, portable hard drives, etc., with data transfer rates of up to 480 Mbps
  • Built-in 5 port 10/100 Mbps Ethernet switch allows you to easily network and share Internet with your computers
  • Share one set of speakers with all your computers
  • Independent switching of KVM, USB peripherals and audio focus
  • Port selection via Hotkeys and front push-buttons
  • Auto scan mode for monitoring all computers
  • Power on detection - automatically switches to the first powered on port
  • Superior video quality - up to 2048 x 1536
  • Firmware upgradeable
  • Easy installation - no software required
  • Keyboard and mouse emulation for error-free boot up
  • Hot pluggable - add or remove computers without powering down the switch
  • Compatible with multiple operating platforms (PC, Mac and Sun)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Four 6 ft (1.8m) cables included
  • Supports most wireless keyboards and mice
  • Controls four computers
  • Share one set of speakers with all your computers
  • Independent switching of KVM, USB peripherals and audio focus
  • Port selection via Hotkeys and front push-buttons

What's in the box:

  • IOGEAR GCS1774 4-Port Miniview Symphony KVM Switch
  • 4 x Custom 3.9 feet (1.8m) KVM Cables
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x User Manual
  • 1 x Quick Start Guide
  • IOGEAR 3 Year Warranty
