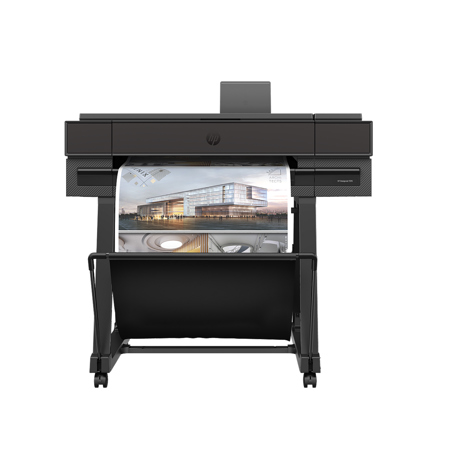

HP DesignJet T870 24" Wireless Large Format Color Thermal Inkjet Printer with 2 Year Warranty

SKU: IHPT870 MFR: AM0X9H
Earn VIP Reward Points

Key Features

  • Achieve stunning detail with 2400 x 1200 optimized dpi print resolution, perfect for professional blueprints and vibrant posters.
  • Boost your productivity with impressive print speeds of 120 D-size prints per hour, keeping your projects on schedule.
  • Enjoy seamless connectivity through Gigabit Ethernet or Wi-Fi, making it easy to print from any device in your office.
  • Experience versatile media handling with a 24" maximum media width, accommodating various paper types for all your design needs.
  • Benefit from HP Wolf Pro Security features, ensuring your sensitive documents and network remain protected.
  • Simplify your workflow with the intuitive HP Click App for multi-size printing, ideal for architects and graphic designers.
See More Product Details
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2026-01-05T19:00:00

Rated 5 out of 5

The HP DesignJet T870 24" printer is a durable, pr

The HP DesignJet T870 is a well-balanced, durable, and capable large-format printer with thoughtful connectivity, flexible media options, a manageable weight for its class, and an easy-to-use interface - a solid choice for anyone who needs professional results with reliable performance.

sueellentolman_4465

2026-01-05T19:00:00

Rated 3 out of 5

Great but be wary of ink costs

The set up of this very large printer was actually pretty simple. And when you use the correct settings and paper, the prints are spectacular. It's fairly quiet for the size too. Unfortunately it uses a lot of ink and the ink is very pricey so we'll see how much it actually gets used despite the cost.

brittneyb8_8355

2026-01-01T19:00:00

Rated 4 out of 5

Set designs and sewing plans are easy to print and

Silly setup process but it works pretty well so far. I tried the roll paper and the letter paper feed. There are adapters for 3" core rolls like mine was. No issues. Great for theatre makers, builders, crafters, and fabric engineers.

liloalpha_6531

2025-12-31T19:00:00

Rated 5 out of 5

Easy assembly instructions

It arrived nicely packed, everything was well protected, and the assembly was easy. You will need 2/3 people to help you to assemble though. The print quality is great, the colors look really nice and the lines are sharp. It is also easy to use and runs smoothly, which makes a big difference when you are printing larger projects. Overall, it feels like a solid printer that does a great job and makes printing large format stuff much easier.

gigigroschel_4413

2025-12-29T19:00:00

Rated 4 out of 5

Printer for big & small jobs!

I am happy to have gotten this printer. It prints standard paper in addition to rolls. The quality is great. It's worked perfectly since I got it last month. The reason it didn't get 5/5 stars is that I wish it had some kind of paper tray for standard paper instead of it falling into the basket. Other than that, it is great!

stephanier1111_5661

2025-12-19T19:00:00

Rated 3 out of 5

Good quality prints but expensive to maintain

The printer itself is actually great. The quality of the prints is top notch. The colors are vibrant and beautiful. Putting the printer together wasn't too difficult. That being said, I have a Mac and getting the software it needed wasn't something I was able to do. It kept giving errors. I ended up using something else to print. The printer did not come with any paper so that sucked. I would have been nice for it to come with even a small sample size to be able to test it right off the bat. I had to order it separately (it was expensive, but that was kind of expected) and wait before testing it out. Like I stated before, the printer and prints themselves were great but getting them to print the right size was a pain. (Probably easier without a Mac). I used it to print off photos to decorate my photography studio. The ink was low FAST. When I went to check on the price of ink to replace it, it was over $200 for just the black ink! That's over $600 to replace all the colors. In my case, it's cheaper to get my pictures printed off at Walgreens than to do it myself. All in all, I would not recommend this printer IF you are using it solely to print pictures but, given that the quality of the prints are nice, the printer is easy to assemble and it's a good size, I can't speak for its other possible uses.

egutierrez_2614

2025-12-11T19:00:00

Rated 5 out of 5

An excellent printer

I've been using the HP DesignJet T870 24-Inches Printer for my architecture work, and I'm genuinely impressed with its performance. The print quality is outstanding-my large-format posters come out crisp, accurate, and professional (I attached a sample of a recent project I printed). Error handling is excellent; the printer clearly displays any issues on the screen and guides you step-by-step, so nothing ever feels confusing or frustrating. The design is sleek and modern, and despite being a professional printer, the size is very manageable for a home studio or small office. It wakes up quickly, responds instantly to print commands, and the speed is surprisingly fast for high-resolution architectural drawings. Overall, it's a reliable, responsive, and efficient printer that has made my workflow so much smoother.

the_algerian_wife_8344

2025-11-14T19:00:00

Rated 5 out of 5

Reliable large-format printer with sharp output an

The HP DesignJet T870 delivers clean, accurate prints with consistent color and sharp detail. Setup was straightforward, and the interface is simple to navigate. It handles different paper types well, and the print speed is solid for a large-format machine. Reliability has been strong so far with no jams or errors. Consumables last reasonably long, which keeps the running cost manageable. A dependable choice for design work and large projects.

sharafiev_5812

2025-10-31T20:00:00

Rated 5 out of 5

Reliable Precision and Stunning Print Quality"

The HP DesignJet T870 is an excellent large-format printer - perfect for professional drawings, posters, and high-quality graphics. The print quality is outstanding, with sharp details and vibrant colors that stay true to the design. It's fast, reliable, and surprisingly quiet for its size. The setup was straightforward, and the touchscreen interface makes it super easy to use, even for someone who's not very tech-savvy. I especially appreciate the built-in Wi-Fi and the ability to print directly from my phone or tablet. The 2-year warranty adds peace of mind, showing HP's confidence in the printer's durability. It's a great investment for architects, designers, or anyone who needs precision and performance in every print. Highly recommend - efficient, professional, and worth every penny! ????

dianat238_8447

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

HP DesignJet T870 Specifications

Print
  • Print speed

    21 sec/page for D size, 120 D size prints per hour

  • Print resolution

    Up to 2400 x 1200 optimized dpi

  • Technology

    HP Thermal Inkjet

  • Margins

    Roll: 0.2 x 0.2 x 0.2 x 0.2" (5.08 x 5.08 x 5.08 x 5.08mm)
    Sheet: 0.2 x 0.2 x 0.2 x 0.2" (5.08 x 5.08 x 5.08 x 5.08mm)

  • Ink types

    Pigment-based (C, M, Y, mK)

  • Print Cartridges, Number

    4 (C, M, Y, mK) cartridges

  • Ink drop

    6 pl (C, M, Y); 12.6 pl (mK)

  • Print cartridge volume

    300 ml per cartridge; 130 ml per cartridge

  • Printheads

    1 (C, M, Y, mK)

  • Printhead nozzles

    1376 per color; 5504 in total

  • Line accuracy

    +/-0.1%

  • Minimum line width

    0.0008 in (via raster driver)

  • Max optical density

    15 L min/1.7 D

  • Applications

    Banners; Line drawings; Maps; Posters; Presentations; Renderings; Signage

  • Handling

    Roll feed, automatic sheet feeder(50 sheet capacity), media bin, automatic horizontal cutter, sheet organizer(optional accessory)

  • Maximum media width

    24" (60.96cm)

  • Media rolls

    1

  • Roll size

    14.5 to 24" (36.83 to 60.96cm)

  • Maximum roll weight

    13.2 lbs (5.98kg)

  • Maximum roll diameter

    5.1" (12.95cm) (rolls up to 300' (91.44m))

  • Sheet size

    Auto sheet feeder: 8.3 x 11 to 12 x 18" (21.08 x 27.94 to 30.48 x 45.72cm)
    Manual feed: 8.3 x 11 to 24 x 66" (21.08 x 27.94 to 60.96 x 167.64cm)

  • Standard media sizes supported

    Auto sheet feeder: A, B
    Manual feed: A, B,C, D

  • Media Weight Recommended

    0.01 to 0.057 lb/sq. ft (roll/manual feed); 0.01 to 0.045 lb/sq. ft (auto sheet feeder)

  • Media thickness (maximum)

    0.0118" (0.29mm)

  • Media types

    Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper(natural tracing), film (clear, matte, backlit), photographic paper(ID satin, ID gloss), self-adhesive (matte/gloss, polypropylene gloss, removable fabric), banner(polypropylene matte, PVC banner), fine art material (canvas)

Embedded controller

Jump to...
  • Memory

    1 GB

  • Hard disk

    None

  • Job storage memory

    2.7 GB reprint queue

  • Native print languages

    TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL,CALS G4

Connectivity

Jump to...
  • Interfaces

    Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n

  • Printing paths

    HP Click App for Windows and Mac, HP Click Driver for Windows 11, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, Wi-Fi Direct, remote printing, print from USB pen drive

  • Remote print enabled

    Yes

  • One-click multi-size printing

    Yes

  • Drivers

    Raster driver for macOS and Windows, HP Click Driver for Windows 11, HPGL/2 driver for Windows

  • Security features

    HP Wolf Pro Security, HP Secure Boot, Allowlisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS 1.3, HP Web JetAdmin, HP Security Manager, SIEM Integration

Environmental ranges

Jump to...
  • Operating temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Operating humidity

    20 to 70% RH (non-condensing)

  • Operating altitude

    Up to 9842.5' (2999.99m)

  • Storage temperature

    -13 to 131 Degree F (-25 to 55 Degree C)

  • Recycled plastic in printer

    45%

Acoustics

Jump to...
  • Sound pressure

    Printing: 40 dB (A) (operating)

  • Sound power

    Printing: 5.6 B (A) (operating)

  • Consumption

    35 W (printing), <5.5 W (ready), <2.5 W (sleep), <0.2 W (off); auto-scheduled printer on/off usage

  • Requirements

    Input voltage (auto ranging): 100-240 V ( +/-10%), 50/60 Hz ( +/-3 Hz),1.2 A max

Certifications & Compliance

Jump to...
  • Safety

    USA and Canada (CSA certified)
    EU (RED Directive, EN 62368-1 compliant)
    Singapore (PSB)
    China (CCC)
    Mexico (NYCE)
    Argentina (IRAM)
    India (BIS)

  • Electromagnetic

    Compliant with Class B requirements, including: USA (FCC rules),Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM),China (CCC), Japan (VCCI)
    Korea (KCC)

  • Environmental

    ENERGY STAR, EPEAT , UL ECOLOGO certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements

Physical

Jump to...
  • Dimensions (W x D x H)

    43.3 x 27.1 x 36.8" (109.98 x 68.83 x 93.47cm)

  • Weight

    85 lbs (38.55kg)

  • UPC Code

    199251089398

26 Accessories for HP DesignJet T870 24" Wireless Large Format Color Thermal Inkjet Printer with 2 Year Warranty

  • All Accessories (26)
  • Ink & Toner (8)
  • PrintHead (1)
  • Organizers (1)
  • Printer Paper (10)
  • Photo Paper (6)

About HP DesignJet T870

FEATURED REVIEWS

The HP DesignJet T870 24" printer is a durable, pr

By sueellentolman_4465

The HP DesignJet T870 is a well-balanced, durable, and capable large-format printer with thoughtful connectivity, flexible media options, a manageable weight for its class, and an easy-to-use interface - a solid choice for anyone who needs professional results with reliable performance.

Easy assembly instructions

By gigigroschel_4413

It arrived nicely packed, everything was well protected, and the assembly was easy. You will need 2/3 people to help you to assemble though. The print quality is great, the colors look really nice and the lines are sharp. It is also easy to use and runs smoothly, which makes a big difference when you are printing larger projects. Overall, it feels like a solid printer that does a great job and makes printing large format stuff much easier.

The HP Large Format team is expanding its portfolio assortment by introducing the new HP DesignJet T870 24” SFP. This versatile printer targets applications suitable to support market segments including Architectural, Engineering, & Construction (AEC), Education, and Light Retail (e.g. basic signs, posters, and presentations).

HP DesignJet T870 24” SFP

Versatile-Effortless, high-quality results across sizes and formats

Print it all-from renders and CAD drawings to educational posters and durable retail signage, you'll see high-quality results across print sizes with pigment-based HP Flex Tech Inks. Easily print multi-size A4/A to A1/D projects using the integrated input tray or roll, without manually changing from roll to sheet. Stay focused-print A1/D-sized plots in as fast as 21 seconds and experience fewer ink interruptions with 130/300 ml cartridges.


Connected-Seamless and secure by design

Simplify printing with HP Click-available as a driver and app. Save time with real-print preview and automatic error detection. Protect your printer and data from cyberthreats without any effort thanks to HP Wolf Pro Security.


Sustainable-Save energy and minimize waste

Invest in a compact, robust printer made with at least 45% recycled plastic and 10% recycled metal. Lower energy use by up to 60% with automatic on/off scheduling, and use up to 95% less ink during printhead cleaning routines. Reduce plastic waste with 100% polystyrene-free packaging and recycle your HP cartridges through HP's Planet Partners program.


Print It All

From CAD drawings and renders to vibrant posters and durable signage, see high-quality results across print sizes with HP Flex Tech Inks.


Easily Switch Formats

With the integrated input tray, print A4/A to A1/D projects without manually switching from roll to sheets.


Seamless and Secure by Design

Simplify printing with HP Click - available as a driver and app. Save time with real-print preview and auto error detection.


Save Energy and Minimize Waste

  • Printer made with at least 60% recycled plastic.
  • Lower energy use by up to 60% with automatic on/off scheduling.
  • Use up to 95% less ink during printhead cleaning routines.


Print with Precision

Pigment-based HP Flex Tech Inks bring prints to life with vivid colors, crisp lines, and durable results.

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve stunning detail with 2400 x 1200 optimized dpi print resolution, perfect for professional blueprints and vibrant posters.
  • Boost your productivity with impressive print speeds of 120 D-size prints per hour, keeping your projects on schedule.
  • Enjoy seamless connectivity through Gigabit Ethernet or Wi-Fi, making it easy to print from any device in your office.
  • Experience versatile media handling with a 24" maximum media width, accommodating various paper types for all your design needs.
  • Benefit from HP Wolf Pro Security features, ensuring your sensitive documents and network remain protected.
  • Simplify your workflow with the intuitive HP Click App for multi-size printing, ideal for architects and graphic designers.

What's in the box:

  • HP DesignJet T870 24" Wireless Large Format Color Thermal Inkjet Printer
  • Printhead
  • Introductory Ink Cartridges
  • Printer Stand
  • Power Cord
  • Spindle
  • User Manual
  • HP 2 Year Limited Warranty
