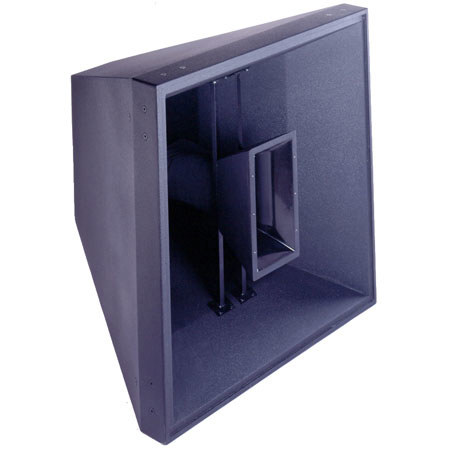

JBL PD764-WRX Very High Output Mid-High Loudspeaker System with Extreme Weather Protection Treatment

The JBL PD764-WRX Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764-WRX may be used in clusters with other PD family modules or singly as part of a distributed system.

The PD100 series low-frequency elements may be added to the array to extend bandwidth and pattern control to the lowest octaves. The JBL PD764-WRX transducer complement features JBL's most advanced technology. The 2250J NDD (neodymium Differential Drive) 8" midrange transducer features a high energy neodymium magnet based motor, dual voice coils and a large aluminum heat sink structure.

The 2430H compression driver utilizes the latest in magnet and diaphragm technology to pack the performance of a traditional 10.5 kg (23 lb), 25 cm (10") diameter compression driver into one weighing 1 kg (2.2 lb) and measuring 10.8 cm (4.25") in diameter. For outdoor applications, Extreme Weather Protection Treatment is available.
