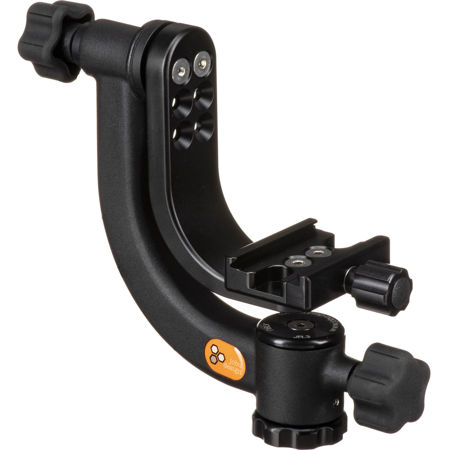

Jobu Design Jobu Jr.3 BWG-J3K Gimbal Kit with HM-J2 Swing-Arm
See all Jobu Design items

Jobu Design Jobu Jr.3 BWG-J3K Gimbal Kit with HM-J2 Swing-Arm, 12 Lbs Capacity

SKU: JDBWGJ3K

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Edwin D : Will this work with a Manfrotto 055 tripod?GOLDNER Z : Ed D, BWG-J3K Junior 3 Gimbal Kit will work with your Manfrotto 055 tripod.LAWRENCE C : Yes. I have it mounted on a Manfrotto 055CF.JON M : Yes, it will. Mine is attached to a Manfrotto 055XPROB (3/16"-18 thread) and so far has given little trouble, if any. Two caveats, though: 1) Since the gimbal head base is smaller than that on a Manfrotto head, the set screws under the tripod's mount won't work well. You will have to make sure the base is screwed in nice and tight. 2) Once installed, switching between the gimbal head and your current standard head won't be easy. I fastened a 3/16"-18 Arca-Swiss-compatible adaptor (shown below) to the head that originally came with my tripod so I can attach the standard head to the gimbal head as needed. It's not the best workaround, but it works for me.JOHN C : Don't on a manfretto but the gimbal is a universal threadBILL-SHIRLEY P : I have mine on a Bogen 3021 tripod, should be no problem.UDAY N : Yes, it will.ROBERT B : It will work with any tripod that has a 1/4 -20 or 3/8 mounting screw.
DAN F : will this work on a Slik tripod ?DAVID H : do not know. It should.ANTHONY V : it takes a 3/8" stud. A tripod with a 1/4''stud is not recommended. Hope this helps.JON M : It depends on the tripod model. If the existing tripod head is attached to the base by a 3/8" screw _and_ the base can support the combined weight of the Jobu head, your DSLR, the heaviest lens you plan on using, plus a few pounds (or kg) extra for insurance, this head should work.BILL H : As long as you have access to the 3/8" mounting screw it will work fine.LYNN F : I don't see why not. I have used it in a Gitzo 2227 but better on the biggest flashpointLAWRENCE C : Yes, provided the Slik tripod has a Standard 3/8"-16 Tripod screw. Most standard size tripods are equipped with this standard screw.SUSAN M : Sorry, I couldn't say. I'm using a benro tripod and it works great!!DAVID S : It will work with any tripod with a 3/8" mounting stud. If your tripod has a 1/4" stud you'll need to use the 1/4 to 3/8 adapter.MARTHA B : I don't know. I am not familiar with that brand of tripod.
MICHAEL A : oe does this model differ from the Deluxe model?GAIL C : I really love the Jobu I purchased -MICHEL L : The deluxe model seems to have an upgrade from the Junior 3 kit with swing arm HM-J2 (bought it with the 4.5'' lensplate - this depends on the lens you use with it), although I am not sure what the upgrade is. I find mine easy to use. If you don't get the answer you are looking for from buyers, you might want to call or write the company: 1-888-321-jobu or their website. Good luck!

Reviews about this item

Review Summary

2020-02-06T14:38:59

Rated 5 out of 5

Gimbal head

Works well

Rodney M.

2019-05-29T08:34:44

Rated 5 out of 5

Great with Fuji XT mirrorless system!

Works perfectly with a Fuji XT-3 with a 100-400 lens and a 4” RRS lens plate that I already had. I haven’t tried it with an extender yet. That may require a slightly longer lens plate to balance properly. It’s designed for a lighter load than the Wimberley, but within its weight ratings, it is a solid performer. Excellent quality!

Kathryn P.

2018-11-13T15:03:14

Rated 4 out of 5

Nice Gimbal with one flaw

Overall I like this Canadian-made Gimbal. It is quite smooth, not too heavy, and balances my Pentax 150-450 +K1 nicely. However, the one thing I don't like about this head are the two screws that attach the swing arm to the base. They come loose all the time. I suppose I shall have to use "locket" to keep them in, but this is an inconvenience nevertheless. Otherwise I need to have an allen wrench along with me all the time, one more thing to haul around.

DOUGLAS S.

2018-08-05T17:28:18

Rated 5 out of 5

This is a terrific Gimbal

Works perfectly. Secute fit and easy operation. A real winner.

LAURICE G.

2017-05-09T11:16:04

Rated 5 out of 5

Great Gimble Head

Very sturdy, well made and functional. Mine easily supports a heavy Nikon 300mm f28 telephoto lens (with 2x extender) mounted on a Nikon D300. Easy to balance lens and camera with slide clamp. Smooth panning and tilt with easy-to-set friction knobs. Couldn't ask for more. Very highly recommended.

KENNETH L.

2012-07-15T21:00:00

Rated 5 out of 5

Dynamite gimbal. I own two!

I use Jobu Design BWG-J3K Junior 3 Gimbal Kit with Swing-arm HM-J2 on a Cullman 525c tripod for my spotting scope and for my large Canon telephoto lenses. I would recomend the gimbal and tripod without hesitation.

Karl

2012-05-13T21:00:00

Rated 5 out of 5

Jobu Design BWG-J3K Junior 3 Gimbal Kit

Perfect for my needs.

ROBERT B.

2012-04-30T21:00:00

Rated 4 out of 5

does it all as needed !

Use it with Sigma 150-500 Bigma on D700. Balances nice with supplied foot on lens, even fully extended (lens +). Light weight for hauling around. Smooth movement for action shots, locks solid for still life. Cost was reasonable.

GREGORY M.

2012-03-07T19:00:00

Rated 5 out of 5

best accessorie I've bought period

i replaced my ball head with this device because my ball head wasn't firm enough for my gear. and this is so much smoother when panning eagles in flight

CH S.

2012-01-01T19:00:00

Rated 5 out of 5

Excellent head

This head has been an excellent value. I use it with my Nikor 300mm f4, sometimes with a 1.4x teleconverter added. Re: customer question. Mine came with an Arca Swiss style clamp. I have a Kirk photo plate on the lens, all works perfectly.

LYNN F.

2011-12-29T19:00:00

Rated 5 out of 5

Outstanding Gimbal Head

I have used this product with a digital body and lens up to 500mm f4.5 although more generally on a 400mm f5.6. Provided the lens mount is well placed the opperation is a dream. Very smooth. Very lightweight. Top rated product made in Canaga. The only issue some may have is the base is small as are the knobs. I love it, but if you want larger knobs it might be an issue for you.

Argo

2011-01-11T19:00:00

Rated 5 out of 5

Excellent product

Excellent gimbal head. Very secure , very smooth, very stable. Works very well with my 150-500 zoom lens.

David S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Jobu Design BWG-J3K + HM-J2 Specifications

  • Recommended for

    70-200 F2.8/F4, 300mm F4, 100-400 zoom, 150-500 zoom, 400mm F5.6 and other similar size lenses

  • Load Capacity

    12 lbs (5.44kg)

  • Tripod Mount

    3/8"-16

  • Dimensions

    9 x 8" (22.86 x 20.32cm)

  • Weight

    1.7 lbs (0.77kg)

  • UPC Code

    705105672175

2 Accessories for Jobu Design Jobu Jr.3 BWG-J3K Gimbal Kit with HM-J2 Swing-Arm, 12 Lbs Capacity

  • All Accessories (2)
  • Quick Release (1)
  • Quick Release Plates (1)
Arca Swiss Long Quick Release Plate with 2 1/4in Screws
Arca Swiss Long Quick Release Plate with 2 1/4in Screws
$103.53
Recommended
Acratech 2181 3 inch Long Quick Release Lens Plate
Acratech 2181 3 inch Long Quick Release Lens Plate
$44.95
Recommended

About Jobu Design BWG-J3K + HM-J2

FEATURED REVIEWS

best accessorie I've bought period

By CH S.

i replaced my ball head with this device because my ball head wasn't firm enough for my gear. and this is so much smoother when panning eagles in flight

Great Gimble Head

By KENNETH L.

Very sturdy, well made and functional. Mine easily supports a heavy Nikon 300mm f28 telephoto lens (with 2x extender) mounted on a Nikon D300. Easy to balance lens and camera with slide clamp. Smooth panning and tilt with easy-to-set friction knobs. Couldn't ask for more. Very highly recommended.

The Jobu Jr.3 gimbal (BWG-J3K) is smaller, lighter, smoother and more compact than our earlier BWG-J2K head. Needle roller bearings allow smoother tilting under heavy loads and better adjustment of friction. Lockout force has been improved 200% and overall durability has been improved in all aspects. The perfect travel companion, it easily fits into small pockets of your existing bags.

Jobu Design BWG-J3K + HM-J2 Features

  • One-piece hollow, cast, heat treated body
  • Extreme stiffness for a small gimbal head
  • Overall 1.0" reduced height from Jr.2 head
  • 30 grams lighter than Jr.2 head
  • Includes NEW removable swing-arm (HM-J2) - Fully CNC Machined, not cast. More room for camera clearance
  • Includes Arca-Swiss compatible quick release clamp
  • Needle roller bearings in tilt axis for smoothness
  • Rubberized knobs for cold and wet weather usage
  • Standard 3/8" tripod mount
  • Camera/Lens Capacity of 5-10lbs recommended
  • Maximum weight: 12lbs for occasional usage (continual overloading your gimbal head will void your warranty)

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Jobu Design Jobu Jr.3 BWG-J3K Gimbal Head with HM-J2 Removable Swing-Arm
  • Arca-Swiss Compatible Quick Release Clamp
  • Jobu Design 1 Year Limited Warranty
