Questions & Answers

Shopper : The 4Gb of memory is that 2 - 2Gb memory chips or 1 - 4Gb memory chip? I would like to upgrade it to 8Gb total.ALEXANDER H : It's 1 chip, 4 GB.PAULA M : That's 1 - 4Gb. I added 1- 8Gb and now have a fast 12Gb.RONALD H T : it should only be 1
Shopper : is product new?ALLEN W : Yes it was new and it works great. Wanted Windows 7
Diane S : What is the weight of this laptop? I'm probably going to be carrying it around most of the day. Thanks.GREG E : Lenono specs state 5.4 lb. weight

Reviews about this item

Review Summary

Lenovo ThinkPad E540 Specifications

  • Processor

    2.4GHz Intel Core i3-4000M Dual-Core 4th-Gen Haswell

  • Cache

    L3: 3MB

  • Memory

    Slots: 2x SO-DIMM 204-Pin
    Type: PC3-12800 1600MHz DDR3L SDRAM
    Installed: 4 GB
    Capacity: 16 GB

  • Graphics Card

    Type: Integrated
    Installed: Intel HD Graphics 4600 Shared

  • Display Type

    Widescreen

  • Display Size

    15.6"

  • Backlight

    LED

  • Aspect Ratio

    16:9

  • Finish

    Antiglare

  • Native Resolution

    1366 x 768

  • Brightness

    200cd/m2

  • Hard Drive

    Installed: 500GB 7200rpm
    Type: SATA

  • Optical Drive

    Tray-Load SuperMulti DVD Burner

  • Ports

    2x USB 3.0 (A)
    1x USB 2.0 (A) (powered)
    1x Docking Connector (OneLink)

  • Display

    1x HDMI
    1x VGA

  • Audio

    Integrated Stereo Speakers
    Integrated Microphone
    1x 1/8" (3.5mm) Headphone/Microphone Combo Jack

  • Flash Media Slot

    1x MMC
    1x SD
    1x SDHC
    1x SDXC

  • Network

    10/100/1000Mbps Gigabit Ethernet (RJ-45)

  • Wi-Fi

    802.11b/g/n

  • Bluetooth

    Bluetooth 4.0

  • Webcam

    Yes

  • Operating System

    Windows 7 Professional (64-bit)

  • Security

    HDD User Password Protection, Power-On Password, Infineon TPM Software Professional Package, Kensington Lock Slot, Fingerprint Reader

  • Keyboard

    Type: Standard Notebook Keyboard
    Features: Numeric Keypad

  • Pointing Device

    TouchPad & TrackPoint with Multi-Touch Control

  • Battery

    6-Cell Lithium-Ion Providing up to 6.2 Hours per Charge (48Wh)

  • Dimensions (W x H x D)

    14.8 x 1.1 x 9.8" / 376 x 28 x 249mm

  • Weight

    5.4lbs / 2.45Kg

  • UPC Code

    888631287683

4 Accessories for Lenovo ThinkPad E540 15.6" Notebook Computer, Intel Core i3-4000M 2.4GHz, 4GB RAM, 500GB HDD, Windows 7 Pro (Upgradable to Win 8 Pro)

  • All Accessories (4)
  • Bags & Cases (2)
  • Speakers (1)
  • Cables & Adapters (1)

About Lenovo ThinkPad E540

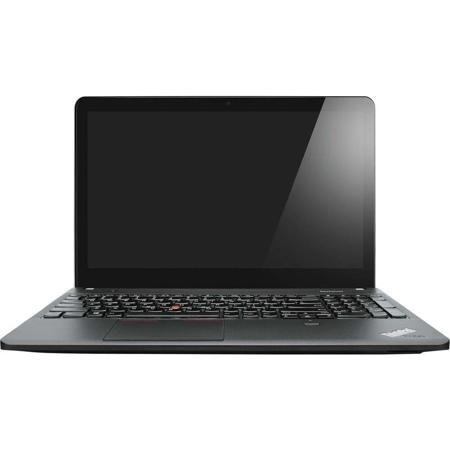

The Lenovo ThinkPad E540 20C600AAUS 15.6" Notebook Computer from Lenovo delivers both in terms of performance and mobility. The ThinkPad E540 provides a 6-cell lithium ion battery for up to 6.2 hours per charge (battery life may vary). The ThinkPad E540 features an ABS plastic lid for a portable yet durable design.

The 15.6" widescreen display is backlit with LED lamps, which brighten faster, use less power and last longer than their CCFL counterparts. The screen has a 16:9 aspect ratio, which is also the standard for HDTVs. The HD 1366 x 768 native resolution is supported by integrated Intel HD Graphics 4600. The native resolution allows you to play back 720p HD content without upscaling or letterboxing.

The system is powered by a 4th generation Haswell dual-core 2.4 GHz Intel Core i3-4000M processor. It also has 4GB of 1600 MHz DDR3L RAM, a 500GB 7200 rpm hard drive, a SuperMulti DVD burner, a 4-in-1 media card reader, a fingerprint reader, 802.11b/g/n Wi-Fi, Bluetooth 4.0, an integrated webcam and microphone. There are also built-in stereo speakers with Dolby Advanced Audio v2 technology.

Windows 7 Professional (64-bit) is the installed operating system. This version of Windows 7 Professional is preinstalled through the downgrade rights in Windows 8 Pro (64-bit).

4th-Gen Haswell Intel Core Performance
The Lenovo ThinkPad E540 houses a 4th generation Haswell Intel Core i3-4000M processor. Its dual cores can reach a stock speed of 2.4 GHz. The 4th generation Haswell processor uses low voltage to extend battery life without sacrificing performance. With a dedicated 3MB L3 cache, 4GB of 1600 MHz DDR3L RAM and Intel Hyper-Threading technology, you'll be able to push the dual cores up to four virtual cores for quick and efficient multitasking.

15.6" Antiglare LED-Backlit Display
The 15.6" display features a 16:9 aspect ratio and has a 1366 x 768 native resolution, powered by integrated Intel HD Graphics 4600. The native resolution allows you to play back 720p HD content natively without upscaling or letterboxing. The screen also has a matte, antiglare finish, which allows you to use the ThinkPad E540 in brightly-lit environments with ease. You can also output video to an external display via the HDMI port.

Wireless Connectivity
The Lenovo ThinkPad E540 supports 802.11b/g/n Wi-Fi, which provides a high-speed connection to your home or office wireless network. There is also Bluetooth 4.0 technology for connecting to Bluetooth-compatible devices, such as a wireless mouse.

USB 3.0 - 10x Faster than USB 2.0
USB 3.0 can reach data transfer speeds of up to 5 Gbps, which is up to ten times faster than USB 2.0. USB 3.0 is also backwards compatible with USB 2.0 devices so you don't have to worry about losing access to your older peripherals. Also, one of the USB ports is powered so you can charge your portable device for added convenience.

4-in-1 Media Card Reader
The Lenovo ThinkPad E540 has a 4-in-1 media card slot that can read Secure Digital (SD), Secure Digital High Capacity (SDHC), Secure Digital extended Capacity (SDXC) and MultiMediaCard (MMC).

SuperMulti DVD Burner
The Lenovo ThinkPad E540 houses a SuperMulti DVD burner, which allows you to read and write both CDs and DVDs.

Windows 7 Professional (64-bit)
This version of Windows 7 Professional is preinstalled through the downgrade rights in Windows 8 Pro (64-bit).

What's in the box:

  • Lenovo ThinkPad E540 20C600AAUS 15.6" Notebook
  • AC Adapter
  • Power Cord
  • 6-Cell Lithium Ion Battery
  • Lenovo 1 Year Limited Warranty
