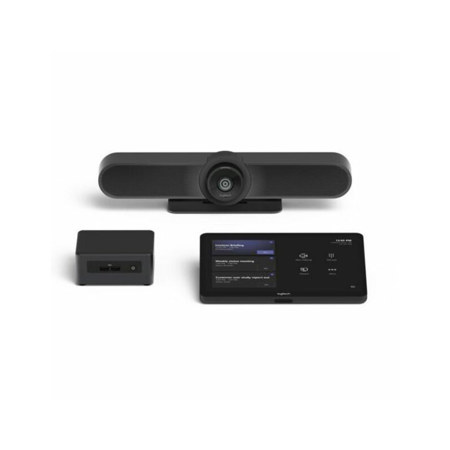

Logitech MeetUp 4K UHD All-in-One Conference Camera with ASUS NUC Mini PC and 10.1" TAP Touch Controller for Small Microsoft Teams Meeting Room

SKU: LOTAPMUPMSU2 MFR: TAPMUPMSTASU2
Earn VIP Reward Points

Key Features

  • Experience crystal-clear visuals with 4K UHD video, perfect for engaging remote participants.
  • Enjoy expansive coverage with a 120-degree field of view, ensuring everyone is seen in small meeting rooms.
  • Simplify your setup with this all-in-one conference camera, including a powerful ASUS NUC Mini PC.
  • Control your meetings effortlessly using the intuitive 10.1" TAP Touch Controller for Microsoft Teams.
  • Benefit from advanced audio features like acoustic echo cancellation for clear, distraction-free conversations.
  • Seamlessly integrate with Microsoft Teams Rooms, providing a reliable and efficient collaboration experience.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Logitech MeetUp + NUC + TAP Specifications

MeetUp: Overall

MeetUp: Overall

Jump to...
  • Field of View

    120 Degree

  • Built-in Speakerphone

    3x Built-in microphones
    1x Optional microphone-ready expansion

  • Supported Resolutions

    Video calling with supported clients:
    4K30: 3840 x 2160
    1080p30: 1920 x 1080
    720p30: 1280 x 720

  • Overall Functions

    All-in-one design
    Motorized pan/tilt
    Logitech lens
    3 camera presets
    Bluetooth wireless technology
    RF remote control
    Multiple mounting options, including table and wall mount; optional TV mount available
    Kensington security slot

  • Remote Control

    RF Remote: Camera control, volume, mute/unmute
    Bluetooth: Smartphone control and speaker usage

  • Ports

    USB 2.0 (separately available USB 3.0/3.1 Gen 1 required for 4K video)

MeetUp: Microphone

Jump to...
  • Pickup Range

    8' (2.44m)
    With Expansion Mic: 14' (4.27m)

  • Sensitivity

    -27dB

  • Frequency Response

    90Hz to 16kHz for full voice reproduction and high intelligibility without noise

  • Sample Rate

    Pro-audio 32kHz

  • Functions

    Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
    AEC (Acoustic echo cancellation)
    VAD (Voice activity detector)
    Microphone background noise suppression

MeetUp: Speaker

Jump to...
  • Adjustable Volume

    95dB SPL at 0.5m peak

  • Sensitivity

    86.5+/-3dB SPL at 0.5meter

  • Distortion

    200 Hz-300Hz < 3%, 3000Hz-10KHz < 1%

  • Functions

    Powerful rare-earth magnet
    Acoustically suspended speaker enclosure
    Peak-limiting algorithm prevents even momentary speaker clipping to prevent distortion

MeetUP: Compatibility & Integrations

Jump to...
  • Compatibility and Integrations

    Plug-and-play USB connectivity
    Works with most any video conferencing application or meetings service
    Skype for Business certified
    Microsoft Cortana certified
    Cisco Jabber and WebEx compatible
    Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, Life-size Cloud, Vidyo and Zoom

MeetUP: System Requirements

Jump to...
  • System Requirements

    Windows 7, Windows 8.1, or Windows 10
    macOS 10.10 or higher
    Chrome OS Version 29.0.1547.70 and higher
    USB 2.0 port (USB 3.0 required for 4K video)

MeetUP: General

Jump to...
  • Dimensions (H x W x D)

    Camera: 4.09 x 15.75 x 3.35" (104 x 400 x 85mm)
    Remote Control: 3.27 x 3.27 x 0.39" (83 x 83 x 10mm)

  • Weight

    2.3 lbs (1.04kg)

NUC Mini PC

Jump to...
  • Processor

    Intel Core i5-1350P (up to 4.7 GHz, Quad Core, 12 MB Cache, 28 W TDP)

  • Memory

    16GB (2x 8 GB) DDR4 SO-DIMM

  • Wireless Connectivity

    Intel Wi-Fi 6E (Gig+), Bluetooth 5.3 (can be disabled in BIOS)

  • Operating System

    Microsoft Teams Rooms for Windows 11 IoT Enterprise SAC for Collaboration

  • Display Outputs

    Dual HDMI 2.1 TMDS and dual Thunderbolt (supports up to 8K resolution and multi-display flexibility)

TAP Touch Controller

Jump to...
  • Color

    Graphite

  • Room Solutions Compatibility

    Microsoft Teams Rooms on Windows

  • Screen size

    10.1" (25.65cm) diagonal touch display
    1280 x 800 pixels

  • Screen type

    Capacitive Touch with Oleophobic Coating

  • Power

    Included Power Supply inline via Cat5e

  • Connectivity

    Cat5e ethernet kit (9.7' (2.97m)
    22' (7m) Cat5e cables)

  • Content-Sharing

    HDMI ingest

  • Motion sensor

    Yes

  • Built-in cable

    Yes (retention and strain relief)

  • Headphone jack

    Yes

  • Compatible Accessories

    Riser, Table, Wall Mounts

  • Dimensions (W x D x H)

    9.60 x 7.04 x 2.28" (244 x 179 x 58mm)

  • Weight

    2.75 lbs (1.25kg)

Compute Mount

Jump to...
  • Compatible Devices

    Logitech RoomMate
    Small form factor (SFF) computer with a 100x100 or 75x75 VESA pattern

  • Dimensions (H x W x D)

    1.37 x 6.45 x 13.77" (35 x 164 x 350mm)

  • UPC Code

    0715663129561

About Logitech MeetUp + NUC + TAP

Logitech Solutions For Microsoft Teams Rooms
Transform any space into a Microsoft Teams Room on Windows with one-touch join or Proximity Join, wired and wireless content sharing, and center-of-room control with Tap. Logitech room solutions for small rooms size with accessories to suit each space.

Pre-Configured Video Conferencing For Meeting Rooms
Logitech Room Solutions for Microsoft Teams Rooms include everything you need to build out meeting rooms of any size or shape - a mini PC, an Ultra-HD Logitech conference Cam with RightSense technologies, and the Logitech Tap touch controller. Plus, device management has never been easier through the Microsoft Teams Admin Center or Logitech Sync.

- MeetUP -
Create plug-and-play video conferencing with MeetUp, an all-in-one USB conference camera for small rooms and spaces. MeetUp packs big features and unbeatable value in a compact form factor that is simple to set up and easy to install.

Meet Easy
Compatible with virtually any video conferencing software app, MeetUp easily connects to PC, Mac, and Chrome devices with no additional software required.

With an ultra-wide motorized lens, integrated audio, and a two-way table stand / wall mount, MeetUp reduces cross-room cabling and maximizes usable space in huddle rooms and other small spaces. Three advanced beamforming mics and a custom-tuned speaker with full duplex ensure that meetings sound as great as they look.

All-in-one design
Compact all-in-one form factor takes up less space and minimizes cable clutter.

Plug-and-play USB connectivity
Easily connects to PC, Mac and Chrome devices with no additional software required.

Works with most video conferencing applications
Compatible with virtually any video conferencing software app, including the ones you already use.

Certified for Business
Business-grade certifications mean you can launch your next presentation or video meeting with complete confidence.

TAA Compliant
MeetUp is TAA compliant.

Razor-sharp optics
Advanced Logitech lens technology delivers remarkable video quality with superb resolution, speed, fluidity, color balance, and detail.

Motorized pan/tilt
Expand your field of view even further - up to 170 Degree - to pan to the white board or view other areas of interest.

Ultra HD 4K image sensor
Supports multiple resolutions, including 4K (Ultra HD), 1080p (Full HD), and 720p (HD) to best support the quality offered by your application and monitor.

5x HD zoom
Zero in on close-ups of objects and whiteboard content with outstanding detail and clarity.

120 Degree field of view
Allows everyone in the room to be seen, even those close to the camera or seated at the edges of the room.

Camera presets
Select up to three preset locations for the camera view and return to any of them with the push of a button on the remote control.

Rightsense Technologies
RightSound optimizes the human voice and enhances conversational clarity. RightSight automatically moves the camera and adjusts the zoom so no one gets left out of the picture. And RightLight helps everyone look their best on camera, regardless of lighting conditions.


- TAP Touch Meeting Room Controller -
Make video meetings simple to join with a USB-connected touch controller with an included Cat5e Kit for flexible cabling.

Deploy Room Solutions with Ease
Transform your space into a Microsoft Teams Room, Zoom Room, or Google Meet room with Logitech Tap. Deliver one-touch join, calendar integration, easy content-sharing, and a consistent experience across all rooms.

Clean and Convenient Setup

Just the Right Presence
With a spacious 10.1" display, low profile, and motion sensor for always-on readiness, Tap has a sleek and unobtrusive presence in the room.

Simple and Secure Cabling
Route cables out the back or through the bottom. Keep connections tight with built-in strain relief and retention mechanisms.

Multiple Mounting Options
Install Tap almost anywhere in the room with Table and Riser Mounts that fit standard grommets and rotate 180 Degree for visibility and convenience, or save table space in small rooms with the Wall Mount.

Clean Installation
Use the included or compatible category cabling to position the controller flexibly, up to 131 ft (40 m) away. This allows Tap to be conveniently placed near participants for easy operation, while installing the host computer in a cabinet, beneath a table, or behind a display.

Share Effortlessly
Bring instant content sharing via wireless or HDMI connections to video meetings rooms with Tap.

- Compute Mount -
Mounting bracket with cable retention for Logitech RoomMate and other video conferencing compute devices.

A Clean and Secure Mounting Option
Securely mount your compute device out of sight and out of harm's way. Designed for discreet installation behind displays, inside cabinets, or on carts, Compute Mount is a great fit for any video conferencing space - and perfect for Logitech RoomMate, Google Meet compute system, Intel NUC, and other video conferencing compute devices.

Fits Roommate and Other SFF Computes
Robust steel mount fits Logitech RoomMate and other compatible small form factor compute devices using the standard 2.9 in (75 mm) or 3.9 in (100 mm) VESA mounting patterns.

Integrated Cable Retention
Cable retention clamp relieves cable strain and keeps connections tight and secure, including USB, HDMI, power, and network cables - The two-piece clamp is elevated for greater flexibility and less strain.

Hideaway Design
Compute Mount includes hardware to discreetly mount RoomMate or other compatible compute devices out of sight and out of harm's way.

Logitech MeetUp + NUC + TAP Features

  • One-touch join and content sharing for Microsoft Teams Rooms
  • Pre-configured video conferencing kits for rooms of Small size
  • MeetUp all-in-one 4K conference camera for small meeting spaces
  • Ultra-wide 120 Degree FOV with motorized pan/tilt and 5x HD zoom
  • RightSight, RightLight, and RightSound for optimized video and audio
  • Tap touch controller with 10.1" display for simple, consistent meetings
  • Flexible, clean installation with secure, strain-relief cabling
  • Compute Mount hides and secures small-form compute devices
  • Integrated cable retention for tight, reliable connections

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear visuals with 4K UHD video, perfect for engaging remote participants.
  • Enjoy expansive coverage with a 120-degree field of view, ensuring everyone is seen in small meeting rooms.
  • Simplify your setup with this all-in-one conference camera, including a powerful ASUS NUC Mini PC.
  • Control your meetings effortlessly using the intuitive 10.1" TAP Touch Controller for Microsoft Teams.
  • Benefit from advanced audio features like acoustic echo cancellation for clear, distraction-free conversations.
  • Seamlessly integrate with Microsoft Teams Rooms, providing a reliable and efficient collaboration experience.

What's in the box:

  • ASUS NUC Mini PC (LOG13L3KV5)
  • User Manual
  • Logitech 2 Year Limited Warranty
