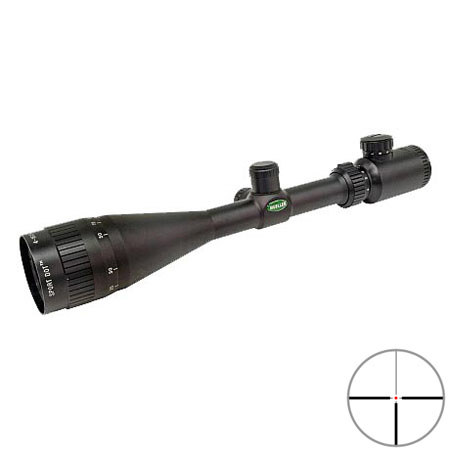

Mueller Optics 4-16x50mm Sport Dot Riflescope, Illum German #4 Ret, AO, 1" Tube
See all Mueller Optics items

Mueller Optics 4-16x50mm Sport Dot Series Rifle Scope, Matte Black Finish with Illuminated German #4 Reticle, Adjustable Objective, 1" Center Tube

SKU: MU41650IGR

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Ryan M : Where do I get a flip up scope cover for this scope? Also how do I take off the rear lens as there is tiny water droplets inside on the lensTED P : Ryan, You can get flip covers at many sporting goods stores and websites. Measure the diameter of your eyepiece and objective bell and pick the corresponding cap. Butler Creek is a manufacturer that comes to mind. As for the water droplets inside your lens, it may be best to call Mueller and tell them the problem. There is a warranty and that scope is supposed to be waterproof. If you would damage the seal in any way your warranty could be voided.WILLIAM W : You will have to send it to the manufacturer to have any repairs including water spots. Bass pro shops and many other stores that carry guns will have butler creek or other brands or flip up scope covers . There is different sizes of covers for different scope brands so you might want to measure or take your scope with you. RAYMOND B : Ryan: answering your second question first ....if you see water drops inside the lenses , that means the chemical gas that should be sealed inside to prevent condensation, has been compromised. Either the seals have failed, a prior owner removed the lenses assembly, or it came this way as defective from the manufacture. Suggest contacting seller for exchange approval. If this is not an option, contact manufacture for approval to mail to them. They are a reputable company and will probably offer free repair or replacement. First question: your objective lenses is 50 mm. Check the specifications in owners manual for diameter of eyepiece lenses. Flip up lenses covers can be purchased at Gander Mountain, Scheels, or Dicks Spirting a Goods, on line or in their stores. Good luck and good shooting.
Shopper : Why Did You Choose This?PETE B : was very interested in the german #4 reticle.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Mueller Optics 4-16x50 Rifle Scope Specifications

  • Magnification

    4x - 16x

  • Objective / Field of View

    50mm / 30.6' (9.3m) @ 4x at 100 yds.(100m), 7.5' (2.3m) @ 16x at 100 yds.(100m)

  • Main (Center) Tube Diameter

    1"

  • Objective Tube Diameter

    2.45"

  • Eyepiece Tube Diameter

    1.75"

  • Lens Coatings

    Fully Multi-Coated

  • Reticle

    Illuminated German #4

  • Reticle Image Plane (Magnifying)

    Second

  • Brightness Adjustments

    Eleven (11) dot brightness intensity settings

  • Twilight Performance

    Not Specified by Manufacturer

  • Exterior Finish

    Matte Black

  • Windage & Elevation Adjustments (MOA)

    1/8 MOA Windage & Elevation

  • Maximum Adjustment

    80moa @ 100 Yards Windage / 80moa @ 100 Yards Elevation

  • Exit Pupil

    13.3mm @ 4x, 4.4mm @ 16x

  • Eye Relief

    3.25" @ 4x, 3.25" @ 16x

  • Parallax Correction Control

    Adjustable Objective

  • Diopter Adjustment

    Not Specified by Manufacturer

  • Battery

    CR-2032

  • Battery Life

    About 40 Hours Depending on Brand & Usage.

  • Material

    Aluminum Alloy

  • Nitrogen Filled

    Yes

  • Waterproof / Fogproof

    Yes

  • Length

    14.53", (369.1mm)

  • Mounting Length

    5.0"

  • Weight

    20.9 oz., 592.5g

  • Special Features

    Reticle Image in the Second Focal Plane
    1/8" fine-tune, windage and elevation adjustments with audible click stops
    Target Style Turrets
    Adjustable objective

  • UPC Code

    857727001083

1 Accessories for Mueller Optics 4-16x50mm Sport Dot Series Rifle Scope, Matte Black Finish with Illuminated German #4 Reticle, Adjustable Objective, 1" Center Tube

  • All Accessories (1)
  • Rings (1)
UTG Leapers UTG Max Strength 1" Picatinny Rings, Medium Profile, 2 Pcs
UTG Leapers UTG Max Strength 1" Picatinny Rings, Medium Profile, 2 Pcs
$22.80
Recommended

About Mueller Optics 4-16x50 Rifle Scope

• More Features than any Red Dot Rifle Scopes on today's market!
• Mueller Sport Dot series scopes are used primarily for the big game hunter and built to withstand the larger caliber recoils of today's new hunting rifles. The illuminated glass etched reticle utilizes a German #4 (heavy duplex/fine post) for quick target acquisition. An 11-position rheostat to illuminate the micro-dot to aid in precise shot placement during low light conditions. All Sport Dot scopes feature fully multi-coated optics for maximum brightness and contrast, a fast focus eyepiece for quick reticle clarity adjustments, and easy finger adjustable target style turrets (no tools required). All Sport Dot series scopes also feature fine tune 1/8 moa windage/elevation adjustments and are fully waterproof, fogproof and shockproof.

Mueller Optics 4-16x50 Rifle Scope Features

  • Euro Coated: Fully multi-coated camera-quality crystal lenses for superior brightness and contrast
  • Large diameter ocular lens for wider field of view
  • All-weather, high-torque power change ring
  • Adjustable objective
  • Exit pupil range: 13.3 - 4.4 mm
  • Fast-focus eyebell
  • Eleven (11) dot brightness intensity settings
  • 1/8" fine-tune, windage and elevation adjustments with audible click stops and easy fingertip turrets; no tools required
  • Overall length: 14.53 inches long, well balanced.
  • 1-inch tube construction with One-piece tube & matte black finish to minimize glare
  • Nitrogen-filled, water-proof, fog-proof and shock-proof
  • Limited Lifetime Warranty
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Large diameter ocular lens for wider field of view
  • All-weather, high-torque power change ring
  • Adjustable objective
  • Exit pupil range: 13.3 - 4.4 mm
  • Fast-focus eyebell
  • Eleven (11) dot brightness intensity settings

What's in the box:

  • Mueller 4-16x50mm AO Sport Dot Riflescope
  • Mueller Warranty
