New Arrival

NanLite PavoSlim 60B 1x1 60W Bi-Color LED Panel 3-Light Kit

SKU: NNPS60B3KLST MFR: PS60B3KITLSST
Earn VIP Reward Points

Key Features

  • Achieve stunning visuals with accurate bi-color lighting, ensuring true-to-life colors for every shot.
  • Experience versatile power options, including V-mount and NP-F batteries, for on-location flexibility.
  • Effortlessly control your lighting with the Nanlink app via Bluetooth, adjusting settings with ease.
  • Enjoy exceptional brightness and consistent illumination, perfect for professional photography and videography.
  • The slim, durable design of these LED panels makes them highly portable for any creative project.
  • Precisely dim your lighting from 0-100% to create the perfect ambiance and mood for your scenes.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

NanLite PavoSlim 60B Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    3

  • Fixture Type

    Light panel

  • Photometrics

    7433 lux (690.5 fc) @1M 3200K
    8156 lux (757.7 fc) @1M 5600K

  • Color Accuracy Standard

    CRI 95
    TLCI 97

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    2700-6500K

  • Display

    Yes

  • Beam Angle

    60 Degree

  • Built-In Flash

    No

  • Cooling System

    No

  • Dimming

    0 - 100%

Connectivity

Jump to...
  • Remote Control Type

    Bluetooth (Nanlink)
    Radio/RF (Remote Not Included)
    Wireless DMX

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: Nanlink
    Functionality: Adjust Settings, Remote Control, Setup

Battery

Jump to...
  • Battery Connection

    NP Mount, V Mount

  • Battery

    1x V-Mount Rechargeable (Not Included)
    2x Sony-Type L-Series / NP-F Rechargeable (Not Included)

  • Power Source

    AC/DC

  • Power Consumption

    60W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    14.4 to 26 VDC

Mounting

Jump to...
  • Fixture Mount

    1x 5/8" Receiver (Via Bracket)

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    12" x 12"

  • Dimensions

    12 x 11.8 x 0.7" (30.6 x 30 x 1.9cm) (Fixture)
    6.89 x 5.77 x 4.39" (17.5 x 14.66 x 11.15cm) (Power Supply/Controller)

  • Weight

    2.01 lbs (910g) (Fixture)
    3.02 lbs (1.37kg) (Power Supply/Controller)

  • UPC Code

    6949987426806

About NanLite PavoSlim 60B

The Nanlite PavoSlim 60B is an exceptionally thin and lightweight 1x1 LED panel light that provides impressive output (8156 lux, 757.7 fc @1M 5600K), 0-100% dimming, a bi-color CCT range of 2700K-6500K, power through AC, NP-F or V-Mount battery, and includes Control Units, pop-up softboxes, 6 sets of diffusion, eggcrate grids, swivel mounts, quick-release clamps, light stands, and a rolling padded case that safely holds everything.

Space-Efficient & Fast
This is a portable fixture that easily fits into tight spaces and quickly sets up and breaks down. It has durable, heat-dissipating metal construction that operates without a fan and was designed to provide years of reliable service. The included pop-up softbox sets up and packs up in seconds.

Thin yet Powerful
PavoSlim 60B is only 0.73" (30.6 cm) thick, yet it features an advanced optical system that's capable of outputting a sizable amount of light: 7433 lux (690.5 fc) @1M 3200K, 8156 lux (757.7 fc) @1M 5600K.

Complete Control
The Control Unit has easy-to-use buttons, knobs, and a screen. Put the panel high up on a stand while being able to access the controls and swap out batteries easily. Features a locking metal DMX/RDM port, Bluetooth for the free NANLINK app, and 2.4G for the WS-RC-C2 handheld remote or WS-TB-1 Transmitter Box (both sold separately).

Swivel Mounts
The body of PavoSlim is metal with multiple 4-pin locking plates incorporated into the back. The included mounts slide into the plates and lock securely. The mounts have two ball joints that can be swiveled and locked in a wide range of vertical and upward angles. The corners of the light have 1/4"-20 mounting points for the separately available AS-MBA-1/4-SET magnetic mounting adapters.

Softbox & Case
The rolling padded case has room for all the included accessories, like the pop-up softboxes, grids, 1.5 stop, and 2.5 stop diffusers (which set up and break down in seconds). It won't weigh you down in transit or storage.

Flicker-Free Accuracy
Every Nanlite fixture delivers highly accurate performance that remains flicker-free even at incredibly high frame rates, and PavoSlim is no different. With the 60B, you can always have confidence in your colors: CRI average 95, TLCI average 97, TM-30 Rf average 95 and Rg average 102, SSI 3200K 83 and 5600K 73.

Thin, Bright & Tough
Exceptionally slim and lightweight yet it provides impressive an output of 8156 lux (757.7 fc) @1M 5600K, and it has solid construction that was designed to last.

Fast Set Up & Break Down
Designed for speed and efficiency, PavoSlim 60B and the included pop-up softbox and grid can be set up and put away impressively quickly.

Accurate & Flicker Free
With a CRI of 95, TLCI of 97, 3200K SSI of 83 and 5600K SSI of 73, your colors and skin tones will always be accurate, and even if you're shooting with ultra-high frame rates, your footage will always be flicker free.

AC Or Battery
Run continuously on an AC outlet and features 2 NP-F and 1 V-Mount battery plate for working on location.

NanLite PavoSlim 60B Features

  • Exceptionally thin 1x1 bi-color LED panel with 8156 lux output at 1m
  • 2700K-6500K bi-color range with 0-100% dimming for precise ambient matching
  • Runs on AC, dual NP-F, or V-Mount battery for flexible studio and location use
  • Fanless metal body with high CRI 95 / TLCI 97 for accurate, flicker-free color
  • DMX/RDM, Bluetooth app, and 2.4G wireless control with included softbox and grid kit

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve stunning visuals with accurate bi-color lighting, ensuring true-to-life colors for every shot.
  • Experience versatile power options, including V-mount and NP-F batteries, for on-location flexibility.
  • Effortlessly control your lighting with the Nanlink app via Bluetooth, adjusting settings with ease.
  • Enjoy exceptional brightness and consistent illumination, perfect for professional photography and videography.
  • The slim, durable design of these LED panels makes them highly portable for any creative project.
  • Precisely dim your lighting from 0-100% to create the perfect ambiance and mood for your scenes.

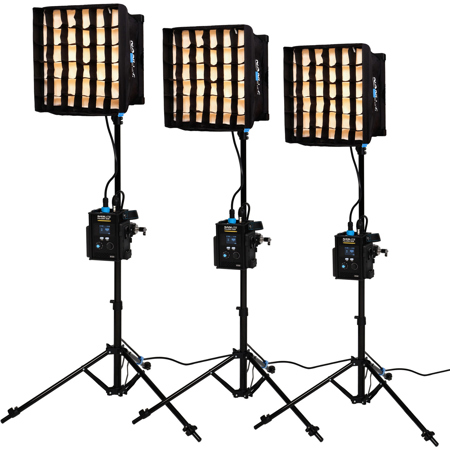

What's in the box:

  • 3x NanLite PavoSlim 60B Bi-Color LED Panels
  • 3x Control Units with 2x NP-F Battery Plates and V-Mount Battery Plate
  • 3x Swivel Holders
  • 3x DC Connection Cables 8.5'
  • 3x AC Power Cables 14.7'
  • 3x Pop-Up Softboxes
  • 6x Diffusers (2.5 Stop Lite Diffuser/1.5 Stop Standard Diffuser)
  • 3x Egg Crates
  • 3x Quick-Release Clamps
  • 3x LS-186-5/8 Light Stands
  • Rolling Padded Case
  • User Manual
  • NanLite 2 Year Limited Warranty (Extend 1 Year Warranty with Registration)
