Audio-Technica 2000 Series ATW-2192XC Omnidirectional Headworn Microphone System, S: 508.125-526.825MHz, Black

SKU: ATW2192XCS MFR: ATW-2192XCS
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this Audio-Technica wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with a 300' operating range, ideal for dynamic stage performances.
  • The omnidirectional headworn microphone ensures consistent sound pickup from any direction.
  • Achieve professional sound quality with a wide frequency response of 20 Hz to 20 kHz.
  • Benefit from long-lasting battery life, offering up to 9 hours of use on a single charge.
  • This durable wireless microphone system includes rack-mount adapters for easy integration.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Audio-Technica ATW-2192XC Specifications

System
  • Operating Frequencies

    UHF: 508.125-526.825MHz

  • Modulation Mode

    FM

  • Maximum Deviation

    +/-40 kHz

  • Frequency Response

    100 Hz to 15 kHz (+1 dB, -3 dB)

  • Operating Range

    100 m (300'), typical (Open range environment with no interfering signals)

  • Total Harmonic Distortion

    < 1% (at 1 kHz, +/-20 kHz deviation)

  • Operating Temperature Range

    41 to 113 Degree F (5 to 45 Degree C) (Battery and LCD performance may be reduced at very low temperatures)

  • Number Of Channels

    10 total

Receiver

Jump to...
  • Receiving System

    True diversity

  • Image Rejection

    60 dB nominal, 55 dB minimum

  • RF Sensitivity

    20 dBuV at 60 dB S/N ratio (50 ohms termination)

  • Maximum Output Level

    XLR, balanced: +9 dBV, 1/4" (6.3 mm), unbalanced: +4 dBV

  • Antenna Input

    BNC-type, 50 ohms
    Bias voltage 12V DC, 60 mA, each

  • Power Requirements

    12-18V DC, 500 mA

  • Audio Output Attenuator (ATTN)

    Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB

  • Dimensions (W x D x H)

    8.27 x 6.39 x 1.73" (210 x 162.2 x 44mm) (Not including BNC connectors or feet)

  • Weight

    35.3 oz (1.0kg) (without accessories)

Bodypack Transmitter

Jump to...
  • RF Power Output

    High: 30 mW, Low: 10 mW (switchable), at 50 ohms

  • Battery Life

    High: 7 hours (alkaline)
    Low: 9 hours (alkaline), Depending on battery type and use pattern.

  • Battery

    Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
    Recharging power for NiMH batteries (with ATW-CHG2), 2x 3.2 V DC, 230 mA

  • Input Connections

    Four-pin Locking Connector
    Pin 1: GND
    Pin 2: INST INPUT
    Pin 3: MIC INPUT
    Pin 4: DC BIAS +9V

  • Spurious Emissions

    Following federal and national regulations

  • Battery Info

    Required, Not included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (W x D x H)

    2.60 x 0.89 x 3.63" (66 x 22.5 x 92.3mm)

  • Weight

    2.9 oz (81g) (without batteries)

BP892xcW Microphone

Jump to...
  • Element

    Fixed-charge back plate, permanently polarized condenser

  • Polar Pattern

    Omnidirectional

  • Frequency Response

    20-20,000 Hz

  • Low Frequency Roll Off

    80 Hz, 18 dB/octave (wired only)

  • Open Circuit Sensitivity

    -43 dB (7.2 mV) re 1V at 1 Pa

  • Output Impedance

    250 ohms (wired only)

  • Maximum Input Sound Level

    136 dB SPL, 1 kHz at 3% T.H.D.

  • Dynamic Range

    104 dB, 1 kHz at Max SPL (wired only)

  • Signal-to-Noise Ratio

    63 dB, 1 kHz at 1 Pa

  • Phantom Power Requirements

    11-52V DC, 2 mA typical (wired only)

  • Switches

    Flat, roll-off (wired only)

  • Current Consumption

    0.2 mA typical at 5V (wireless only)

  • Voltage Range

    2.5-10V (wireless only)

  • Cable

    Detachable 1.4 m (55") long, 1.6 mm (0.06") diameter, 2- or 3-conductor shielded cable (termination dependent)

  • Output Connector (Power Module)

    Integral 3-pin XLRM-type (wired only)

  • Audio-Technica Case Style

    M31

  • Dimensions (Dia. x L)

    Microphone: 0.10 x 0.37" (2.6 x 9.5mm)
    Boom: 0.04 x 3.88" (1.07 x 98.5mm)
    Power Module: 0.74 x 3.94" (18.9 x 100mm) (wired only)

  • Weight

    Microphone, boom & earpiece: 0.09 oz (2.6g)
    Power Module: 3 oz (85g) (wired only)

About Audio-Technica ATW-2192XC

Just imagine experiencing rock-solid, dependable performance with the Audio-Technica 2000 Series ATW-2192XC Omnidirectional Headworn Microphone System. This 10-channel frequency-agile UHF wireless system is expertly designed to cater to a wide range of applications, including musical instrument/live performance, fixed installations, public address systems, A/V rental services, and places of worship. Offering the advantages of a high-quality, professional wireless system, it is both versatile and accessible.

The 2000 Series features switchable antenna power and is compatible with the optional ATW-CHG2 two-bay recharging station, which efficiently recharges NiMH batteries in ATW-T210 body-pack transmitters. With 10 selectable channels and True Diversity UHF wireless technology, this system ensures seamless operation. Its automatic frequency scanning function simplifies setup by automatically determining and setting the best available frequency at the touch of a button. You can use any of the 10 channels simultaneously without worrying about frequency coordination or group selection issues. Additionally, the system incorporates Audio-Technica's Tone Lock squelch and an easy-to-read LCD information display for enhanced usability.

The BP892xcW Microphone, part of this system, is a testament to Audio-Technica's commitment to high-performance audio. The high-SPL BP892x MicroSet offers clear and accurate sound in a discreet, ultra-lightweight design. It hooks securely behind either ear, providing comfort for extended wear. For added stability, the included AT8464x dual-ear adapter kit converts the MicroSet to a dual-ear-worn unit. The subminiature omnidirectional condenser capsule delivers extremely intelligible, natural audio with a flat, extended frequency response, making it ideal for stage and television talent, lecturers, and worship leaders.

Engineered for durability, the BP892x includes a detachable, field-replaceable cable with a robust connector at the earset and various output terminations. The 55" (1.4 m) detachable cable is terminated with a locking 4-pin connector, compatible with Audio-Technica cW-style body-pack wireless transmitters. The microphone handles high sound pressure levels effortlessly, and the wired version's power module (AT8545) includes a high-pass filter for improved sound pickup without affecting voice quality. Constructed from hypoallergenic materials, the headset is designed for comfort and longevity.

In summary, the Audio-Technica 2000 Series ATW-2192XC Omnidirectional Headworn Microphone System is a reliable choice for professionals seeking superior audio performance in a lightweight, ergonomic package.

Audio-Technica ATW-2192XC Features

  • Serious advances in affordable professional wireless
  • Clear sound quality and rock-solid, dependable performance
  • Automatic frequency scanning
  • 10 compatible user-switchable channels
  • Antenna power available for powered antennas & other in-line RF devices
  • True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
  • Tone Lock tone squelch system fights interference
  • Rugged metal half-rack receiver with soft-touch controls and LCD display
  • Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
  • Switchable transmitter power output with high and low settings offered
  • Includes rack-mount kit and detachable UHF antennas
  • Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
  • ATW-T210 Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this Audio-Technica wireless microphone system, perfect for presentations.
  • Enjoy freedom of movement with a 300' operating range, ideal for dynamic stage performances.
  • The omnidirectional headworn microphone ensures consistent sound pickup from any direction.
  • Achieve professional sound quality with a wide frequency response of 20 Hz to 20 kHz.
  • Benefit from long-lasting battery life, offering up to 9 hours of use on a single charge.
  • This durable wireless microphone system includes rack-mount adapters for easy integration.

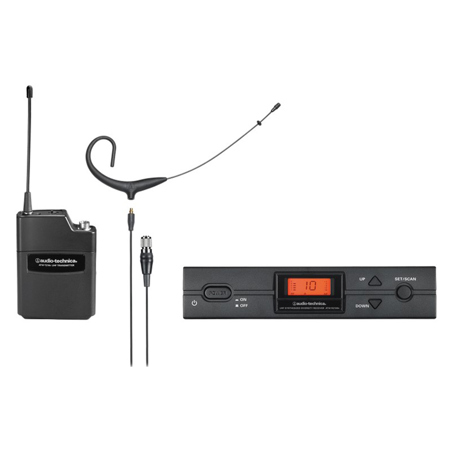

What's in the box:

  • ATW-R2100 Receiver
  • ATW-T210 Bodypack Transmitter
  • BP892xcW MicroSet Omnidirectional Condenser Headworn Microphone (Black)
  • 2x Flexible UHF Antennas
  • AC Adapter
  • Rack-Mount Adapters
  • AT8545 Power Module (Wired Only)
  • (Battery Not Included)
  • Audio-Technica 2 Year Limited Warranty
