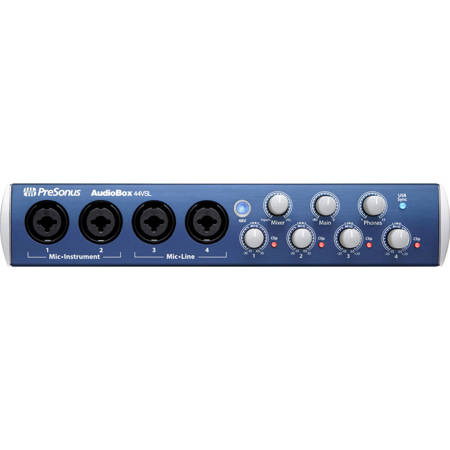

PreSonus AudioBox 44VSL USB 2.0 Recording System
See all PreSonus items

PreSonus AudioBox 44VSL USB 2.0 Recording System with Real-time Monitoring Effects

SKU: PSAB44VSL
(1)

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2017-06-06T09:45:44

Rated 5 out of 5

Good Seller, fast, just as described

I would reccomend this product to any one looks to build a home studio on a fixed budget. The software is really nice and worth the price of the hardware. Cant beat the value.

Jack R.

PreSonus AudioBox VSL Specifications

  • Mic Preamps

    4

  • Converters

    24-bit

  • Sample Rates

    44.1, 48, 88.4 and 96kHz

  • Inputs

    4 x Combo XLR female

  • Input Impedance

    Microphone: 10k ohm
    Line: 10k ohm
    Instrument: 1M ohm

  • Maximum Input Level

    +21dBu, <0.5% THD

  • Gain

    Microphone: -15dB to +65dB
    Line: -20dB to +20dB
    Instrument: -30dB to +50dB

  • Outputs

    6 x 1/4" TRS phone
    1 x 1/4" TRS phone Headphone

  • Output Impedance

    Line: 51 ohm

  • Maximum Output Level

    Line: +10dBu, <0.5% THD
    Headphone: 120mW/channel @ 60 ohm load

  • MIDI

    2 x 5-pin DIN I/O

  • Dynamic Range

    114dB (ADC and DAC) @ 48kHz, A-weighted

  • THD + N

    Microphone: 0.002%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Line Input: 0.002%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Instrument Input: 0.003%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Line Output: 0.003%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Headphone: 0.01%, +4dBu, 1kHz, unity gain, 20kHz BW, A-weighted

  • S/N Ratio

    Microphone: 98dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Line Input: 98dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Instrument Input: 89dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Line Output: 109dB, 1kHz, 22kHz BW, A-weighted
    Headphone: 90dB, 1kHz, maximum gain, 20kHz BW, unweighted

  • Noise

    Microphone EIN: -133dB, 20kHz BW, maximum gain, Rs=40 ohm, A-weighted

  • Frequency Response

    Microphone: 20Hz to 22kHz, +/-0.25dB, unity gain
    Line Input: 20Hz to 22kHz, +/-0.25dB, unity gain
    Instrument Input: 20Hz to 22kHz, +/-0.25dB, unity gain
    Line Output: 20Hz to 22kHz, +/-0.25dB
    Headphone: 20Hz to 22kHz, +/-0.5dB, maximum gain

  • Phantom Power

    48V, global switching

  • Controls

    Trim
    Mains
    Phones
    Mixer
    48V

  • Power

    12 VDC external power supply (included) 1A, center-positive

  • Compatibility

    ASIO, Core Audio, WDM, MME and multi-client drivers

  • System Requirements

    Windows:
    Windows Vista, Windows 7 (32- and 64-bit)
    Intel Pentium 4 1.6 GHz processor or AMD Athlon 64 3000+ (Turion) (2.8 GHz or faster recommended)
    1GB RAM (2GB or more recommended)Macintosh:
    Mac OS X 10.6 (Snow Leopard) or later (32- and 64-bit)
    Intel Core 1 Solo 1.5 GHz processor (Intel Core Duo or Intel Xeon processor recommended)
    1GB RAM (2GB or more recommended)

  • Specialties

    Latency: 2.8mS to 6mS, analog in to out

  • Dimensions (W x D x H)

    1/2 rack space

  • Weight

    2.6 lb (1.2kg)

  • UPC Code

    673454001284

20 Accessories for PreSonus AudioBox 44VSL USB 2.0 Recording System with Real-time Monitoring Effects

  • All Accessories (20)
  • Cables & Adapters (13)
  • Headphones (2)
  • Gaffer Tape (2)
  • Keyboard Accessories (3)
Audio-Technica AT8390-6 Premium 6ft Instrument Cable
Audio-Technica AT8390-6 Premium 6ft Instrument Cable
$8.95
Hosa 5' Pro Balanced 1/4" TRS Male to 1/4" TRS Male Interconnect Audio Cable
Hosa 5' Pro Balanced 1/4" TRS Male to 1/4" TRS Male Interconnect Audio Cable
$17.95
Hosa 20' Pro Balanced 1/4" TRS Male to 1/4" TRS Male Interconnect Audio Cable
Hosa 20' Pro Balanced 1/4" TRS Male to 1/4" TRS Male Interconnect Audio Cable
$30.95
Hosa Technology Hosa 5' MIDI to MIDI (STD) Cable, Black
Hosa Technology Hosa 5' MIDI to MIDI (STD) Cable, Black
$10.95
Hosa Technology Hosa 15' MIDI to MIDI (STD) Cable, Black
Hosa Technology Hosa 15' MIDI to MIDI (STD) Cable, Black
$13.95
AKG AKG K 240 MKII Studio Headphones with Speaker
AKG AKG K 240 MKII Studio Headphones with Speaker
$199.00
Behringer HPS3000 High-Performance Studio Headphones
Behringer HPS3000 High-Performance Studio Headphones
$14.90
Pro Tapes Gaffer Tape 30 Yards x 2" Black
Pro Tapes Gaffer Tape 30 Yards x 2" Black
$17.65
Pro Co Sound Ameriquad 20' XLR (M) to XLR (F) Lo-Z Microphone Cable
Pro Co Sound Ameriquad 20' XLR (M) to XLR (F) Lo-Z Microphone Cable
$36.88
Audio-Technica Instrument Cable, 1/4" - 1/4" Phone Plug, 10'
Audio-Technica Instrument Cable, 1/4" - 1/4" Phone Plug, 10'
$14.50
Audio-Technica AT8390-15, Premium 15ft Instrument Cable
Audio-Technica AT8390-15, Premium 15ft Instrument Cable
$19.00
Audio-Technica AT8390-20, Premium 20ft Instrument Cable
Audio-Technica AT8390-20, Premium 20ft Instrument Cable
$18.50

About PreSonus AudioBox VSL

FEATURED REVIEWS

Good Seller, fast, just as described

By Jack R.

I would reccomend this product to any one looks to build a home studio on a fixed budget. The software is really nice and worth the price of the hardware. Cant beat the value.

The AudioBox 44VSL is the second model in a new generation of PreSonus USB 2.0 audio/MIDI interfaces that take hardware/software integration to the logical next step. Using your computer CPU and PreSonus Virtual StudioLive (VSL) software, AudioBox VSL-series interfaces provide reverb and delay effects and the same Fat Channel compression, limiting, semi-parametric EQ and high-pass filter, as the PreSonus StudioLive 16.0.2 digital mixer-all with inaudible latency.

The AudioBox 44VSL includes an 8x4 software mixer. As a result, with just an AudioBox 44VSL and your laptop or other computer running VSL, you can mix a studio session or a live show featuring, say, a guitar duo with vocals, a small band, a DJ rig with mixer and stereo synthesizer, or a panel discussion-all while monitoring and recording with or without real-time processing. And you can do it simply and easily, with no hardware mixer, no outboard effects rack and minimal wiring, thanks to the tight integration between PreSonus hardware and software.

To top it off, while the classic PreSonus AudioBox USB is a fine-sounding unit, the new AudioBox VSL series sounds even better, with 24-bit, 96 kHz recording and top-of-the-line PreSonus XMAX preamps.

PreSonus AudioBox VSL Features

  • 4 input/4 output 24-bit/96kHz USB 2.0 recording interface
  • 2 Class-A XMAX microphone/instrument preamps
  • 2 Class-A XMAX microphone/line preamps
  • Individual input channel-trim controls with 0 to +35dBu microphone gain range
  • 2 balanced 1/4" TRS phone main outputs with level control
  • 4 balanced 1/4" TRS phone auxiliary line outputs
  • Headphone amplifier with level control
  • Mixer control (blends the input signal with the computer playback stream for zero-latency analog monitoring)
  • VSL (Virtual Studio Live) 8 x 4 Kernel mode DSP mixer with StudioLive 16.0.2 Fat Channel dynamics processing and EQ for each analog input and its DAW return and two stereo effects buses with reverb and delay
  • VSL includes more than 50 Fat Channel DSP presets for enhancing instrument and vocal recordings
  • Near-zero-latency monitoring with extensive signal processing
  • Analog monitor mixing with playback/input mix control knob
  • Power/USB sync LED
  • Clip lights for each channels
  • Globally-switchable phantom power
  • MIDI I/O
  • Rugged metal chassis
  • 1/2-rack unit form factor
  • Includes Studio One Artist software with unlimited track count and over 4GB of third-party resources

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 2 Class-A XMAX microphone/instrument preamps
  • 2 Class-A XMAX microphone/line preamps
  • 4 balanced 1/4" TRS phone auxiliary line outputs
  • Headphone amplifier
  • Power/USB sync LED
  • Clip lights for each channels

What's in the box:

  • PreSonus AudioBox 44VSL USB 2.0 Recording System
  • External Power Supply
  • USB Cable
  • 8x4 Software Mixer
  • Studio One Artist digital Audio Workstation Software
  • Virtual StudioLive (VSL) Control Software
  • PreSonus Warranty
