New Arrival

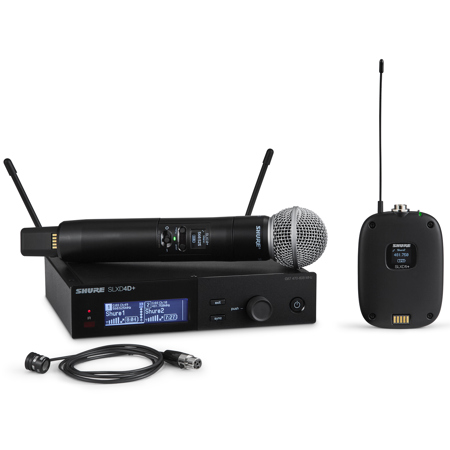

Shure SLXD124+ Digital Wireless Combo System with SLXD2+/SM58 Handheld and WL185M Lavalier Microphone, G57: 470-608MHz

SKU: SHSLXD12485M MFR: SLXD124+/85M-G57
Earn VIP Reward Points

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD124+/85M Specifications

System: RF

System: RF

Jump to...
  • Working Range

    328' (100m)

  • RF Tuning Step Size

    JB Band: 125 kHz
    All Other Bands: 25 kHz

  • Image Rejection

    >85 dB

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    2.8 ms

  • High-Pass/Low Cut Filter

    160 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    118 dB @1% THD (A-weighted, 20 Hz-20 kHz, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" (6.35mm) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

System: General

Jump to...
  • Country of Origin

    China

SLXD4+ Receiver: General

Jump to...
  • Color

    Black

  • Material

    Galvanized Steel

  • Number of Channels

    Single

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Audio conversion

    24 bit

  • Encryption

    AES-256

  • Length

    Cable: 22" (55.8cm)

  • Power Requirements

    15 VDC @ 360 mA

SLXD4+ Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4+ Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.1 k Ohm (550 Ohm Unbalanced)
    XLR (line): 500 Ohm (250 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +18 dBV differentially (+12 dBV single)
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4+ Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4+ Receiver: Physical

Jump to...
  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    2 lbs (900g) (without antennas)

SLXD2+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138 MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit/48 kHz

SLXD2+ Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    8.2 dBV

SLXD2+ Transmitter: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD2+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD2+ Transmitter: Physical

Jump to...
  • Dimensions

    Transmitter: 1.46 x 6.93" (3.71 x 17.60cm)

  • Weight

    Transmitter: 5.08 oz (144g)

SM58 Microphone Capsule

Jump to...
  • Color

    Black

  • Material

    Enamel-painted, die cast metal; matte-finished, silver colored, spherical steel mesh grille

  • Type

    Dynamic

  • Frequency Response

    50 to 15,000 Hz

  • Polar Pattern

    Cardioid

  • Sensitivity

    -54.5 dBV/Pa (1.85 mV) (at 1,000 Hz Open circuit voltage)
    1 Pa = 94 dB SPL

  • Impedance

    Rated impedance is 150 Ohm (300 Ohm actual) for connection to microphone inputs rated low impedance

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Connector

    Three-pin professional audio connector (male XLR type)

  • Dimensions

    6.37 x 2" (162 x 51mm)

  • Weight

    10.51 oz (298g)

SLXD1+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    PC/ABS

  • Transmitter Type

    Bodypack

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138 MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit/48 kHz

SLXD1+ Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent

    Input Noise (EIN):-118 dBV

SLXD1+ Transmitter: RF Output

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD1+ Transmitter: Physical

Jump to...
  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.4mm)

  • Weight

    3.1 oz (88g)

WL185M Microphone

Jump to...
  • Color

    Black

  • Microphone Capsule

    Condenser

  • Polar Pattern

    Cardioid

  • Frequency Response

    70 Hz - 20 kHz

  • Sensitivity (1 Pa = 94 dB SPL)

    -43.0 dBV/Pa

  • Self-Noise A-Weighted

    20 dB SPL (Equivalent Acoustical)

  • Signal-to-Noise Ratio

    74 dB (Using RPM400 Preamp)

  • Maximum SPL (1% THD)

    140.5 dB SPL

  • Dynamic Range

    120.5 dB

  • Microphone Current Draw

    140-240 microA

  • Recommended Operating Voltage

    5 VDC Bias

  • Polarity

    Positive pressure produces positive voltage on pin 3 with respect to pin 1

  • Cable Diameter

    0.09" (2.2mm)

  • Cable Length

    48.5" (1.23m)

  • Dimensions (L x D)

    Capsule: 0.53 x 0.50" (13.55 x 12.74mm)

  • Weight

    With Cable: 0.71 oz (20g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

  • UPC Code

    042406885515

About Shure SLXD124+/85M

The SLXD124+/85M Wireless Combo System unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering transparent, 24-bit digital audio and rock-solid RF performance, wide-tuning SLX-D+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.


- SLXD4+ Single-Channel Digital Wireless Rackmount Receiver -
The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates, Link 2nd transmitter to a receiver channel

Features
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur
• Single channel half-rack design with rugged metal construction


- SLXD2+/58 Wireless Handheld Transmitter -
The SLXD2+/58 Wireless Handheld Transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With rugged metal construction, wide-tuning SLX-D+ handheld transmitters stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates

SM58 Vocal Microphone
If you've ever heard someone sing or speak into a live microphone, there's an excellent chance it was an SM58. Rock stars. Pop idols. Comedians. Presidents. Popes. Immortal words have passed through its iconic grille for generations. And with engineering and durability that set the world standard, it's sure to keep turning up at legendary performances.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoor

How It Works
Made to handle voice with clarity and care, the uniform cardioid polar pattern reproduces every note as it was intended. And it leaves background noise behind. On any stage - from the club show to the stadium - the SM58 delivers warm, crisp sound, time after time.

Why It's Better

Roll with no shake or rattle
Handling noise gets absorbed by the pneumatic shock mount, keeping the sound free of vibration.

Screen out unwanted air
When wind and plosives try to take over, the spherical mesh grille and built-in pop filter keep them out of the mix.

Rugged for the road ahead
Taking the show on tour The mic's durable construction and the break-resistant stand adapter keep the SM58 going strong through the toughest performances.

Features
• Frequency response tailored for vocals, with brightened midrange and bass roll off
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Cardioid (unidirectional) dynamic


- SLXD1+ Digital Wireless Bodypack transmitter -
The SLXD1+ Digital Wireless Bodypack transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With a durable and sleek design, wide-tuning SLX-D+ bodypack transmitters are easily concealed on-talent or as a part of wardrobe and stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link.

Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device. The TA4F/TQG connector accepts a wide range of lavalier, instrument and headset microphones.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates


- WL185M Cardioid Condenser Lavalier Microphone -
Find the perfect audio solution for your presentations and performances with the Shure WL185M Cardioid Condenser Lavalier Microphone. Designed for professional use, this low-profile lavalier microphone is ideal for seamless integration with compatible wireless bodypack transmitters. The WL185M is 8 mm shorter than its predecessors, ensuring a discreet appearance without compromising on sound quality. Experience full and accurate audio reproduction with an enhanced presence response that captures crystal-clear vocals, making it an excellent choice for speakers, presenters, and performers.

Its innovative tie clip can be rotated in 90-degree intervals, allowing for precise and flexible microphone placement. This ensures optimal positioning for capturing the best sound possible. Each microphone comes equipped with a snap-fit windscreen to minimize wind noise, a single tie clip for secure attachment, and a zippered bag for convenient storage and transport.

Elevate your audio experience with the Shure WL185M Cardioid Condenser Lavalier Microphone, a reliable choice for those seeking professional-grade sound quality and adaptability.

Features
• Professional low-profile lavalier condenser microphones
• Cardioid (WL185m) polar pattern options
• 8mm shorter than original WL18X series
• Higher dynamic range with improved max SPL, self-noise, and general sound quality when compared to original WL18X series
• TA4F connector

Shure SLXD124+/85M Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference

What's in the box:

  • SLXD1+ Bodypack Transmitter
  • WL185M Cardioid Condenser Lavalier Microphone
  • 4x AA Batteries
  • Antenna
  • Rack Mounting Hardware
  • Shure 2 Year Limited Warranty
