New Arrival

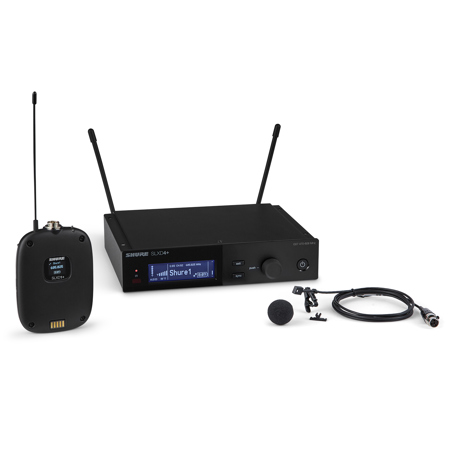

Shure SLXD14+ Single-Channel Digital Wireless Bodypack System with WL93 Omnidirectional Condenser Lavalier Microphone, G57: 470-608MHz

SKU: SHSLXD1493 MFR: SLXD14+/93-G57
Earn VIP Reward Points

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD14+/93 Specifications

System: RF

System: RF

Jump to...
  • Working Range

    328' (100m)

  • RF Tuning Step Size

    JB Band: 125 kHz
    All Other Bands: 25 kHz

  • Image Rejection

    >85 dB

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    2.8 ms

  • High-Pass/Low Cut Filter

    160 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    118 dB @1% THD (A-weighted, 20 Hz-20 kHz, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" (6.35mm) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

System: General

Jump to...
  • Country of Origin

    China

SLXD4+ Receiver: General

Jump to...
  • Color

    Black

  • Material

    Galvanized Steel

SLXD4+ Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4+ Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.1 k Ohm (550 Ohm Unbalanced)
    XLR (line): 500 Ohm (250 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +18 dBV differentially (+12 dBV single)
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4+ Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4+ Receiver: Physical

Jump to...
  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    2 lbs (900g) (without antennas)

SLXD1+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    PC/ABS

  • Transmitter Type

    Bodypack

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138 MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit/48 kHz

SLXD1+ Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent

    Input Noise (EIN):-118 dBV

SLXD1+ Transmitter: RF Output

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

SLXD1+ Transmitter: Physical

Jump to...
  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.4mm)

  • Weight

    3.1 oz (88g)

WL93 Microphone

Jump to...
  • Connector

    TA4F, for Use with the Shure Wireless Transmitters

  • Frequency Response

    50 to 20,000 Hz

  • Polar Pattern

    Omnidirectional, uniform with frequency

  • Output Impedance

    3000 ohms

  • Output Level (1 Pascal = 94 dB SPL)

    Open Circuit Voltage: -38 dBV/Pa (13 mV)

  • Output Clipping Level (at 1,000 Hz)

    0.25 V at 120 dB

  • Total Harmonic Distortion

    Less than 1% at 120 dB

  • Maximum SPL

    120 dB

  • Dynamic Range

    102 dB

  • Output Noise (equivalent SPL)

    18 dB typical, A-weighted

  • Signal-to-Noise Ratio

    76 dB at 94 dB SPL (IEC 651)

  • Polarity

    Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1

  • Recommended Operating Voltage

    2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)

  • Current Drain

    40 microA typical

  • Operating Temperature

    0 to 135 Degree F (-18 to 57 Degree C)

  • Storage Temperature

    -20 to 165 Degree F (-29 to 74 Degree C)

  • Dimensions (Dia. x L)

    0.23 x 0.37" (5.84 x 9.40mm)

  • UPC Code

    042406885843

About Shure SLXD14+/93

The SLXD14+/93 Digital Wireless Bodypack System unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering transparent, 24-bit digital audio and rock-solid RF performance, wide-tuning SLX-D+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.


- SLXD4+ Single-Channel Digital Wireless Rackmount Receiver -
The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates, Link 2nd transmitter to a receiver channel

Features
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur
• Single channel half-rack design with rugged metal construction


- SLXD1+ Digital Wireless Bodypack Transmitter -
The SLXD1+ Digital Wireless Bodypack transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With a durable and sleek design, wide-tuning SLX-D+ bodypack transmitters are easily concealed on-talent or as a part of wardrobe and stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link.

Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device. The TA4F/TQG connector accepts a wide range of lavalier, instrument and headset microphones.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates

Features
• Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Ergonomic and durable plastic construction


- WL93 Omnidirectional Condenser Lavalier Microphone -
• Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency roll off reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Uniform omnidirectional polar pattern
• Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
• Wide-range phantom powering (SM93) accepts all commonly used voltages

Shure SLXD14+/93 Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance

What's in the box:

  • WL93 Omnidirectional Condenser Lavalier Microphone
  • 2x AA Batteries
  • Antenna
  • Rack Mounting Hardware
  • Shure 2 Year Limited Warranty
