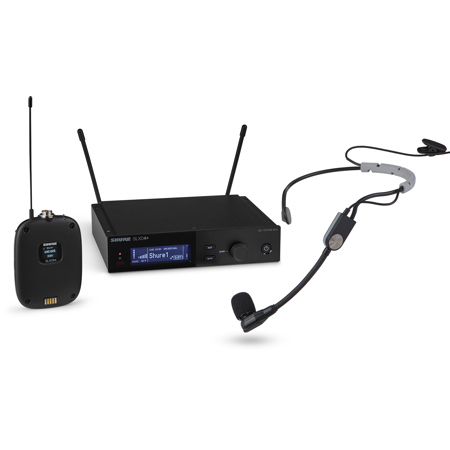

Shure SLXD14+ Single-Channel Digital Wireless Bodypack System with SM35 Headworn Microphone, G57: 470-608MHz

SKU: SHSLXD14SM35 MFR: SLXD14+/SM35-G57
Earn VIP Reward Points

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - linked SLX-D+ units stay connected despite RF interference
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD14+/SM35 Specifications

System: RF

System: RF

Jump to...
  • Working Range

    328' (100m)

  • RF Tuning Step Size

    JB Band: 125 kHz
    All Other Bands: 25 kHz

  • Image Rejection

    >85 dB

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    2.8 ms

  • High-Pass/Low Cut Filter

    160 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    118 dB @1% THD (A-weighted, 20 Hz-20 kHz, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" (6.35mm) with respect to the ring of the 6.35 mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

System: General

Jump to...
  • Country of Origin

    China

SLXD4+ Receiver: General

Jump to...
  • Color

    Black

  • Material

    Galvanized Steel

SLXD4+ Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4+ Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35 mm): 1.1 k Ohm (550 Ohm Unbalanced)
    XLR (line): 500 Ohm (250 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35 mm): +18 dBV differentially (+12 dBV single)
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35 mm): Yes
    XLR: Yes

SLXD4+ Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4+ Receiver: Physical

Jump to...
  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    31.74 oz (900g)

SLXD1+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    PC/ABS

  • Transmitter Type

    Bodypack

  • Frequency

    G57: 470-608MHz

  • Tuning range

    138 MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit/48 kHz

SLXD1+ Transmitter: Audio Input

Jump to...
  • Connector

    4-Pin male mini connector (TA4M)

  • Configuration

    Unbalanced

  • Impedance

    1 M Ohm

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

  • Preamplifier Equivalent

    Input Noise (EIN):-118 dBV

SLXD1+ Transmitter: RF Output

Jump to...
  • Antenna Type

    1/4 Wave

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD1+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

SLXD1+ Transmitter: Physical

Jump to...
  • Dimensions (H x W x D)

    3.86 x 2.68 x 1" (98 x 68 x 25.4mm)

  • Weight

    3.1 oz (89g)

SM35 Microphone

Jump to...
  • Type

    Electret Condenser

  • Frequency Response

    40 Hz to 20,000 Hz

  • Polar Pattern

    Unidirectional (Cardioid)

  • Output Impedance at 1 kHz, typical

    2400 Ohms

  • Audio Output Level

    -59.0 dBV/Pa

  • Signal-To-Noise Ratio at 1 kHz

    55 dB

  • Maximum SPL 1000 Ohms load, at 1% THD

    153.0 dB

  • Dynamic Range at 1 kHz, 1000 Ohms load

    114.0 dB

  • Cable

    3.6' (1.1m)

  • Equivalent Output Noise

    39 dB (Typical, A-Weighted)

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1

  • Power Requirements

    +5 V DC (nominal), 10 V maximum (DC bias)

  • Weight

    2.53 oz (72g)

  • UPC Code

    042406885935

About Shure SLXD14+/SM35

The SLXD14+ Digital Wireless Bodypack System unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering transparent, 24-bit digital audio and rock-solid RF performance, wide-tuning SLX-D+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.


- SLXD4+ Single-Channel Digital Wireless Rackmount Receiver -
The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates, Link 2nd transmitter to a receiver channel

Features
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur
• Single channel half-rack design with rugged metal construction


- SLXD1+ Digital Wireless Bodypack Transmitter -
The SLXD1+ Digital Wireless Bodypack transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With a durable and sleek design, wide-tuning SLX-D+ bodypack transmitters are easily concealed on-talent or as a part of wardrobe and stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link.

Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device. The TA4F/TQG connector accepts a wide range of lavalier, instrument and headset microphones.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates

Features
• Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Ergonomic and durable plastic construction


- SM35 Cardioid Condenser Lavalier Microphone -The SM35 Performance Headset Condenser Microphone gives multi-instrumentalists the freedom to express themselves without sacrificing sound quality. A tight, unidirectional cardioid polar pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed onstage, whether in use in small clubs, large installations, or arena tours.

Feature
• Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
• Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
• Flexible gooseneck design allows for optimized placement that further improves source isolation
• Lightweight and low-profile form enables comfortable, long-wearing use
• TA4F (TQG) connector is compatible with any Shure wireless bodypack
• Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound
• Tailored frequency response refined for clear, crisp vocal reproduction
• Included in BLX and GLX-D wireless systems, renowned for their ease of use and reliable performance
• Legendary Shure precision engineering for durability and performance

Shure SLXD14+/SM35 Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - linked SLX-D+ units stay connected despite RF interference

What's in the box:

  • SLXD4+ Single-Channel Digital Wireless Rackmount Receiver
  • SM35 Headworn Microphone
  • Rackmount Accessories
  • 2x AA Batteries
  • 2x 1/4" Antenna
  • 2x Bulkhead Adapter
  • 2x 22" BNC Cable
  • Power Supply
  • Zippered Carrying Pouch
  • Shure 2 Year Limited Warranty
