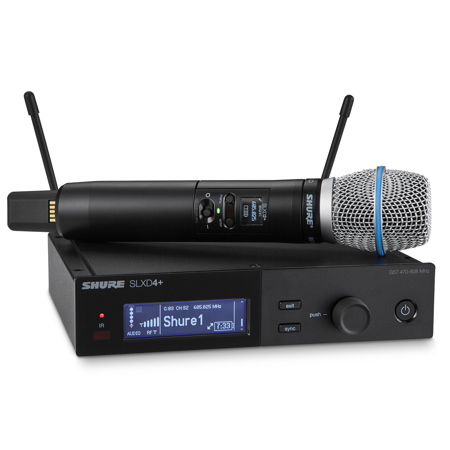

Shure SLXD24+/B87A Single-Channel Digital Wireless Handheld System with B87A Microphone Capsule, G57: 470-608MHz

SKU: SHSLXD24B87A MFR: SLXD24+/B87A-G57
Earn VIP Reward Points

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD24+/B87A Specifications

System: RF

System: RF

Jump to...
  • Working Range

    328' (100m)

  • RF Tuning Step Size

    JB Band: 125 kHz
    All Other Bands: 25 kHz

  • Image Rejection

    >85 dB

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    2.8 ms

  • High-Pass/Low Cut Filter

    160 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    118 dB @1% THD (A-weighted, 20 Hz-20 kHz, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" (6.35mm) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

System: General

Jump to...
  • Country of Origin

    China

SLXD4+ Receiver: General

Jump to...
  • Color

    Black

  • Material

    Galvanized Steel

SLXD4+ Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4+ Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.1 k Ohm (550 Ohm Unbalanced)
    XLR (line): 500 Ohm (250 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +18 dBV differentially (+12 dBV single)
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4+ Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4+ Receiver: Physical

Jump to...
  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    2 lbs (900g) (without antennas)

SLXD2+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Transmitter Type

    Handheld

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit

SLXD2+ Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

SLXD2+ Transmitter: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD2+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

SLXD2+ Transmitter: Physical

Jump to...
  • Dimensions (Dia. X L)

    1.46 x 6.93" (37.1 x 176mm)

  • Weight

    5.08 oz (144g)

Beta 87A Microphone Capsule

Jump to...
  • Cartridge Type

    Electret Condenser

  • Frequency Response

    50 to 20,000 Hz

  • Connector

    Three-pin professional audio (XLR), male

  • Polar Pattern

    Supercardioid

  • Output Impedance

    150 ohms

  • Sensitivity

    -52.5 dBV/Pa (2 mV) 1 Pascal=94 dB SPL (at 1kHz, open circuit voltage)

  • Maximum SPL

    140.5 dB (1 kHz at 1% THD, 1k ohms load)

  • Signal-to-Noise Ratio

    70.5 dB (referenced at 94 dB SPL at 1 kHz)
    S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

  • Dynamic Range (at 1 kHz, 1 k ohms load)

    117 dB

  • Clipping Level

    -6 dBV (0.5 V) (1 kHz at 0.25% THD, 1k ohms load)

  • Self Noise

    23.5 dB typical (typical, equivalent SPL, A-weighted)

  • Power Requirements

    11 to 52 Vdc phantom (1.2 mA)

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Weight

    7.3 oz (207g)

  • UPC Code

    042406897129

About Shure SLXD24+/B87A

The SLXD24+/B87A Digital Wireless Handheld System unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering transparent, 24-bit digital audio and rock-solid RF performance, wide-tuning SLX-D+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.


- SLXD4+ Single-Channel Digital Wireless Rackmount Receiver -
The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates, Link 2nd transmitter to a receiver channel


- SLXD2+/B87A Wireless Handheld Transmitter -
The SLXD2+/B87A Wireless Handheld Transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With rugged metal construction, wide-tuning SLX-D+ handheld transmitters stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates

Beta 87A Vocal Microphone
Add some studio-grade clarity to the live mix. Designed to capture brighter vocals with sparkling accuracy, the BETA 87A brings more crisp to the concert. And the increased presence will have everyone singing your praises.

The Shure BETA87A is a premium quality supercardioid hand-held electret condenser vocal microphone with exceptionally smooth frequency response and high sound pressure level capability. Used for professional sound reinforcement, broadcasting, and studio recording applications, the Beta 87A combines superb performance with the ruggedness needed for touring and field production.

The Beta 87A features a controlled low-frequency roll-off that compensates for proximity effect and prevents the "boomy" sound often associated with close pick-up. The characteristic Shure presence rise brightens the upper midrange. The tight supercardioid pattern, with null points at approximately 125 degrees, provides maximum isolation from other vocalists or instruments while offering minimal off-axis coloration. The Beta 87A operates on phantom power.

How It Works
One of the world's best-selling, single-element, condenser mic, the BETA 87A puts singers on a pedestal. Tailored frequency response concentrates on the upper midrange to raise vocal presence in the mix. So voices cut through clearly and resonate deeply with your audience.

Why It's Better

Set your singing apart
The supercardioid pattern provides maximum isolation of your voice, giving you the chance to shine.

Never overpowered
Get right up on the mic without overwhelming the sound. Electronically controlled low-end roll-off keeps your bass from blasting over the mix.

Resists rattle
The advanced cartridge shock-mount system lets you handle the mic a little harder while absorbing any mechanical noise.

Features
• Smooth frequency response with gradual presence rise
• Highly consistent supercardioid polar pattern provides superior gain-before-feedback
• Electronic low-frequency roll-off compensates for proximity effect
• Wide dynamic range (117 dB) and low distortion characteristics
• Very low susceptibility to RFI and electromagnetic hum
• Advanced cartridge shock-mount system absorbs mechanical shocks and reduces handling noise
• Built-in pop filter reduces undesirable wind and breath sounds
• Legendary Shure quality and reliability

Shure SLXD24+/B87A Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Delivering transparent, 24-bit digital audio and rock-solid RF performance

What's in the box:

  • 2x AA Batteries
  • Antenna
  • Rack Mounting Hardware
  • Shure 2 Year Limited Warranty
