New Arrival

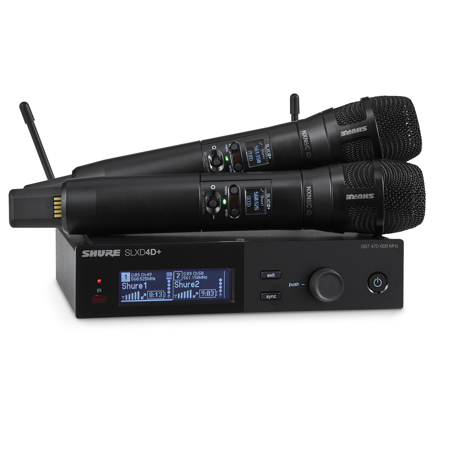

Shure SLXD24D+/N8C Dual-Channel Digital Wireless Handheld System with 2x N8C Microphone Capsule, G57: 470-608MHz

SKU: SHSLXD24DN8C MFR: SLXD24D+/N8C-G57
Earn VIP Reward Points

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Manage interference, scan for new channels and update for clear transmission automatically
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD24D+/N8C Specifications

System: RF

System: RF

Jump to...
  • RF Carrier Frequency Range

    470-937.5 MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    JB Band: 125 kHz
    All Other Bands: 25 kHz

  • Image Rejection

    >85 dB

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    2.8 ms

  • High-Pass/Low Cut Filter

    160 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    118 dB @1% THD (A-weighted, 20 Hz-20 kHz, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" (6.35mm) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

System: General

Jump to...
  • Country of Origin

    China

SLXD2+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Transmitter Type

    Handheld

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit

SLXD2+ Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    8.2 dBV (2.57 Vrms, 7.27 Vpp)

SLXD2+ Transmitter: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD2+ Transmitter: Physical

Jump to...
  • Dimensions

    1.46 x 6.93" (3.71 x 17.60cm)

  • Weight

    5.08 oz (144g)

SLXD2+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

Nexadyne 8/C Microphone Capsule

Jump to...
  • Color

    Black

  • Material

    Aluminum and steel grille

  • Type

    Dynamic (moving coil)

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 to 20,000 Hz

  • Polarity

    Positive pressure on diaphragm produces positive voltage into transmitter with respect to ground

SLXD4D+ Receiver: General

Jump to...
  • Color

    Black

  • Material

    Galvanized Steel

  • Number of Channels

    Dual

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Audio conversion

    24 bit/48 kHz

  • Encryption

    AES-256

  • Length

    Cable 22" (55.8cm)

  • Power Requirements

    15 VDC @ 360 mA

SLXD4D+ Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Connector Type

    BNC

  • Impedance

    50 Ohm

SLXD4D+ Receiver: Audio Output

Jump to...
  • Gain Adjustment Range

    -18 to +42 dB in 1 dB steps

  • Configuration

    1/4" (6.35mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
    XLR: Balanced (1=ground, 2=audio +, 3=audio -)

  • Impedance

    1/4" (6.35mm): 1.1 k Ohm (550 Ohm Unbalanced)
    XLR (line): 500 Ohm (250 Ohm Unbalanced)
    XLR (mic): 150 Ohm

  • Full Scale Output

    1/4" (6.35mm): +18 dBV differentially (+12 dBV single)
    XLR (LINE setting): +18 dBV
    XLR (MIC setting): -12 dBV

  • Mic/Line Switch

    30 dB pad

  • Phantom Power Protection

    1/4" (6.35mm): Yes
    XLR: Yes

SLXD4D+ Receiver: Networking

Jump to...
  • Network Interface

    Single Port Ethernet 10/100 Mbps

  • Network Addressing Capability

    DHCP or Manual IP address

  • Maximum Cable Length

    328' (100m)

SLXD4D+ Receiver: Physical

Jump to...
  • Dimensions (H x W x D)

    1.65 x 7.76 x 5.98" (42 x 197 x 152mm)

  • Weight

    2.1 lbs (952g) (without antennas)

  • UPC Code

    042406921725

About Shure SLXD24D+/N8C

The SLXD24D+/N8C Digital Wireless System unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering transparent, 24-bit digital audio and rock-solid RF performance, wide-tuning SLX-D+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.


- SLXD2+/N8C Wireless Handheld Transmitter -
The SLXD2+/N8C Wireless Handheld Transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With rugged metal construction, wide-tuning SLX-D+ handheld transmitters stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates


- Nexadyne 8/C Cardioid Dynamic Vocal Microphone -
• Acoustic signal processing of the dual engine design enables exceptional signal clarity, reducing the need for typical corrective EQ
• Industry-leading Shure reliability standards provides innovation with confidence
• Dent-resistant hardened grille
• Comes with protective zipper case, mic clip and brass stand adapter
• XLR connection with black finish


- SLXD4+ Single-Channel Digital Wireless Rackmount Receiver -
The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Includes SLXD4+ Single Channel Receiver, two 1/4" antennas, two bulkhead adapters, two 22" BNC cables, rack mount kit and power supply.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates, Link 2nd transmitter to a receiver channel

Shure SLXD24D+/N8C Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Manage interference, scan for new channels and update for clear transmission automatically

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Manage interference, scan for new channels and update for clear transmission automatically

What's in the box:

  • 2x SLXD2+/N8C Digital Wireless Handheld Transmitter with Nexadyne 8/C Microphone Capsule
  • 4x AA Batteries
  • 1/4 Wave Antenna
  • Rack Mounting Hardware
  • Shure 2 Year Limited Warranty
