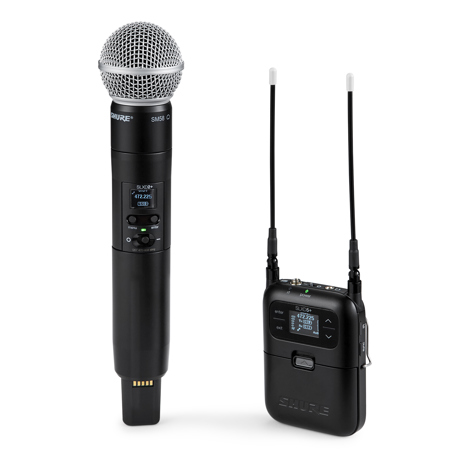

Shure SLXD25+/SM58 Portable Digital Wireless Handheld System with SM58 Microphone Capsule, G57: 470-608MHz

SKU: SHSLXD2558 MFR: SLXD25+/58-G57
Earn VIP Reward Points

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • SLXD+ wide-tuning transmitters & receivers sync via ShowLink Ease control link
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD25+/SM58 Specifications

System: RF

System: RF

Jump to...
  • RF Carrier Frequency Range

    470-937.5 MHz

  • Working Range

    328' (100m)

  • RF Tuning Step Size

    JB Band: 125 kHz
    All Other Bands: 25 kHz

  • Image Rejection

    >85 dB

  • RF Sensitivity

    -97 dBm at 10-5 BER

System: Audio

Jump to...
  • Latency

    2.8 ms

  • High-Pass/Low Cut Filter

    160 Hz, -12 dB/octave

  • Audio Frequency Response

    20 Hz-20 kHz (+1, -2 dB)

  • Audio Dynamic Range

    118 dB @1% THD (A-weighted, 20 Hz-20 kHz, typical)

  • Total Harmonic Distortion

    <0.02%

  • System Audio Polarity

    XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 1/4" (6.35mm) with respect to the ring of the 6.35mm output.

  • Mic Offset Range

    0 to 21 dB (in 3 dB steps)

System: Temperature Range

Jump to...
  • Operating Temperature Range

    0 Degree F to 122 Degree F (-18 Degree C to 50 Degree C)

  • Storage Temperature Range

    -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)

System: General

Jump to...
  • Country of Origin

    China

SLXD5+ Receiver: General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Number of Channels

    Single

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Audio conversion

    24 bit/48 kHz

  • Encryption

    AES-256

  • Length

    3.5mm-to-XLR Cable: 18" (45.7cm)
    3.5mm Audio extender cable: 16" (40.6cm)

  • Power Requirements

    Battery: Rechargeable Li-Ion or1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery
    Eliminator, or 5 VDC via USB-C

SLXD5+ Receiver: RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

SLXD5+ Receiver: Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    2x 1/8" (3.5mm)

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

SLXD5+ Receiver: Physical

Jump to...
  • Dimensions (H x W x D)

    4.21 x 2.68 x 1.0" (107 x 68 x 25.3mm)

  • Weight

    6.41 oz (182g)

SLXD2+ Transmitter: General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138 MHz

  • Dynamic range

    118 dB

  • Audio conversion

    24 bit/48 kHz

SLXD2+ Transmitter: Audio Input

Jump to...
  • Configuration

    Unbalanced

  • Maximum Input Level

    8.2 dBV

SLXD2+ Transmitter: RF Output

Jump to...
  • Antenna Type

    Integrated Single-Band Helical

  • Occupied Bandwidth

    <200 kHz

  • Modulation Type

    Shure Proprietary Digital

  • Power

    1 mW/10 mW

SLXD2+ Transmitter: Battery

Jump to...
  • Battery

    Rechargeable Li-Ion or 1.5 V AA batteries

SLXD2+ Transmitter: Physical

Jump to...
  • Dimensions

    Transmitter: 1.46 x 6.93" (3.71 x 17.60cm)

  • Weight

    Transmitter: 5.08 oz (144g)

SM58 Microphone Capsule

Jump to...
  • Color

    Black

  • Material

    Enamel-painted, die cast metal; matte-finished, silver colored, spherical steel mesh grille

  • Type

    Dynamic

  • Frequency Response

    50 to 15,000 Hz

  • Polar Pattern

    Cardioid

  • Sensitivity

    -54.5 dBV/Pa (1.85 mV) (at 1,000 Hz Open circuit voltage)
    1 Pa = 94 dB SPL

  • Impedance

    Rated impedance is 150 Ohm (300 Ohm actual) for connection to microphone inputs rated low impedance

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Connector

    Three-pin professional audio connector (male XLR type)

  • Dimensions

    SM58 Microphone: 6.37 x 2" (162 x 51mm)

  • Weight

    SM58 Microphone: 10.51 oz (298g)

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    4

  • UPC Code

    042406904520

About Shure SLXD25+/SM58

The SLXD25+/58 Portable Digital Wireless Handheld System delivers wireless excellence, wherever required, in videography, ENG and field production, film and location sound applications. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.


- SLXD2+/58 Wireless Handheld Transmitter -
The SLXD2+/58 Wireless Handheld Transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With rugged metal construction, wide-tuning SLX-D+ handheld transmitters stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates

SM58 Vocal Microphone
If you've ever heard someone sing or speak into a live microphone, there's an excellent chance it was an SM58. Rock stars. Pop idols. Comedians. Presidents. Popes. Immortal words have passed through its iconic grille for generations. And with engineering and durability that set the world standard, it's sure to keep turning up at legendary performances.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoor

How It Works
Made to handle voice with clarity and care, the uniform cardioid polar pattern reproduces every note as it was intended. And it leaves background noise behind. On any stage - from the club show to the stadium - the SM58 delivers warm, crisp sound, time after time.

Why It's Better

Roll with no shake or rattle
Handling noise gets absorbed by the pneumatic shock mount, keeping the sound free of vibration.

Screen out unwanted air
When wind and plosives try to take over, the spherical mesh grille and built-in pop filter keep them out of the mix.

Rugged for the road ahead
Taking the show on tour The mic's durable construction and the break-resistant stand adapter keep the SM58 going strong through the toughest performances.

Features
• Frequency response tailored for vocals, with brightened midrange and bass roll off
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Cardioid (unidirectional) dynamic


- SLXD5+ Single-Channel Portable Digital Wireless Receiver -
The SLXD5+ Portable Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package for use with digital cameras or in audio bag applications. Featuring pristine 24-bit digital audio clarity, a wide 138 MHz tuning range and easy-to-use setup features, the SLXD5+ is at home on top of your camera or in an audio bag.

With a dedicated ShowLink Ease control link, the SLXD5+ stays in sync with SLX-D+ transmitters to manage interference, scan for new channels and update for clear transmission automatically. Coordinate and monitor large channel configurations with many sources using Multi-Mic Mode.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates

Shure SLXD25+/SM58 Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • SLXD+ wide-tuning transmitters & receivers sync via ShowLink Ease control link

What's in the box:

  • 4x AA Batteries
  • 2x Carrying Bag
  • Shure 2 Year Limited Warranty
