New Arrival

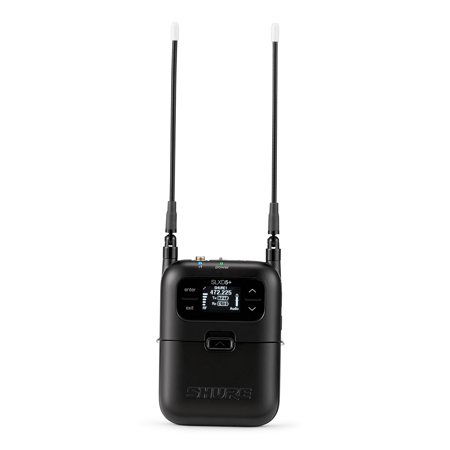

Shure SLXD5+ Single-Channel Portable Digital Wireless Receiver, G57: 470-608MHz, TAA Compliant, Black

SKU: SHSLXD5TA MFR: SLXD5+TA=-G57
Earn VIP Reward Points

Key Features

  • Portable single-channel wireless receiver for camera shoe & audio bag use
  • Transparent 24-bit digital audio quality
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Multi-Mic Mode: IR sync, monitor multiple sources, front-panel control
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shure SLXD5+ TAA Specifications

General

General

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Number of Channels

    Single

  • Frequency Band

    G57: 470-608MHz

  • Tuning range

    138MHz

  • Audio conversion

    24 bit/48 kHz

  • Encryption

    AES-256

  • TAA Compliant

    Yes

  • Length

    3.5mm-to-XLR Cable: 18" (45.7cm)
    3.5mm Audio extender cable: 16" (40.6cm)

  • Power Requirements

    Battery: Rechargeable Li-Ion or1.5 V AA batteries
    Power Supply: SBC-DC-903 Battery
    Eliminator, or 5 VDC via USB-C

  • Country of Origin

    Mexico

RF Input

Jump to...
  • Spurious Rejection

    >75 dB

  • Impedance

    50 Ohm

  • Phantom Power Protection

    Yes

  • Antenna Type

    1/4 Wave Whip

Audio Output

Jump to...
  • Audio Frequency Response

    20 Hz - 20 kHz (+1, -3 dB)

  • Connector Type

    2x 1/8" (3.5mm)

  • Configuration

    Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
    Dual Mono: Tip = left, Ring = Right, Sleeve = Ground

  • Impedance (Camera)

    Balanced (Mono) Line: 450 Ohm
    Balanced (Mono) Mic: 240 Ohm
    Dual Mono Line: 400 Ohm
    Dual Mono Mic: 200 Ohm

  • Full Scale Output

    Camera (Balanced Line): 15 dBV
    Headphone: 13 mW @ 64 Ohm Load

Battery

Jump to...
  • Battery

    SB903 Rechargeable Li-Ion Battery

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Physical

Jump to...
  • Dimensions (H x W x D)

    4.21 x 2.68 x 1.0" (107 x 68 x 25.3mm)

  • Weight

    1.8 lbs (182g)

  • UPC Code

    042406931571

About Shure SLXD5+ TAA

The SLXD5+ Portable Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package for use with digital cameras or in audio bag applications. Featuring pristine 24-bit digital audio clarity, a wide 138 MHz tuning range and easy-to-use setup features, the SLXD5+ is at home on top of your camera or in an audio bag.

With a dedicated ShowLink Ease control link, the SLXD5+ stays in sync with SLX-D+ transmitters to manage interference, scan for new channels and update for clear transmission automatically. Coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. Includes SLXD5+ Portable Wireless Receiver, zippered carrying pouch, non-conductive cold shoe mount adapter, two AA alkaline batteries, 18" locking 3.5 mm-to-XLR cable, locking 3.5mm audio extender cable.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Automatically find and deploy new frequency to both receiver and transmitter upon interference, Lock and unlock transmitter controls, Transmitter firmware updates

Shure SLXD5+ TAA Features

  • Single channel, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
  • Transparent 24-bit digital audio quality
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
  • Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind
  • Up to 5.5 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Portable single-channel wireless receiver for camera shoe & audio bag use
  • Transparent 24-bit digital audio quality
  • Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
  • Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
  • Once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Multi-Mic Mode: IR sync, monitor multiple sources, front-panel control

What's in the box:

  • Shure SLXD5+ Single-Channel Portable Digital Wireless Receiver (TAA Compliant/Black)
  • WA311 Non-Conductive Cold Shoe Mount Adapter
  • 18" Locking 3.5mm-to-XLR Cable
  • 16" Locking 3.5mm Audio Extender Cable
  • 2x AA Batteries
  • Carrying Bag
  • Shure 2 Year Limited Warranty
