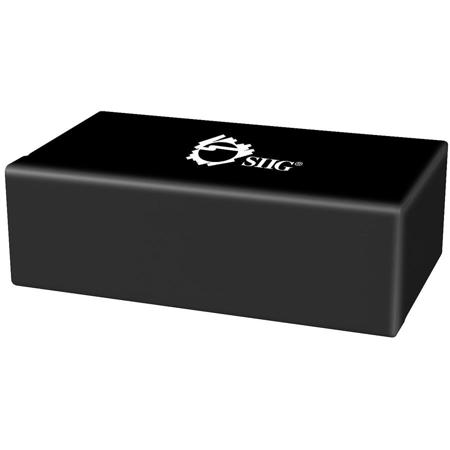

SIIG 1x2 VGA Splitter, 1920x1440 Resolution, 300MHz Video Bandwidth

SKU: SICEVG0911S1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG 1x2 VGA Splitter Specifications

  • Supports

    VGA, SVGA, XGA, UXGA and multi-sync monitors
    up to 1920x1440 resolution

  • Video bandwidth

    300MHz

  • Display mode

    Mirror

  • Connectors

    Input: VGA, 15-pin, DB15, Male
    Output: 2x VGA, 15-Pin, DB15, Female

  • Operating temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage temperature

    23 to 160 deg. F (-5 to 70 deg. C)

  • Humidity

    0% - 80% RH, Non-condensing

  • Power adapter

    Input: 100-240VAC, 50/60 Hz
    Output: 9VDC, 300 mA

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (W x H x D)

    5.14 x 2.98 x 1.67" / 130.55 x 75.69 x 42.41mm

  • Weight

    0.84lbs / 0.38kg

  • UPC Code

    662774013107

About SIIG 1x2 VGA Splitter

The SIIG 1x2 VGA Splitter allows you to simultaneously distribute VGA video signal from a single source to two VGA monitors, delivering vivid picture quality. It supports up to 1920 x 1440 resolutions, VGA, SVGA, XGA, UXGA and multi-sync monitors and 300 MHz video bandwidth with operating distance up to 50M (164ft). This VGA splitter is designed with metal housing for efficient heat dissipation to ensure durability and long life. Additionally, this easy to use splitter can be daisy-chainable to expand beyond 2 monitors while maintaining signal strength in all applications.

SIIG 1x2 VGA Splitter Features

  • Video signal splitter, Simultaneously distributes VGA video signal, while maintaining vivid picture quality
  • Maintains signal strength in all applications up to 1920x1440
  • Works with any hardware platform and with all operating systems
  • Metal housing ensures the most durable and reliable setup
  • Extends video signal up to 50M (164ft)
  • Daisy-chainable to expand beyond 2 monitors

Key Features

  • Maintains signal strength in all applications up to 1920x1440
  • Metal housing ensures the most durable and reliable setup
  • Extends video signal up to 50M (164ft)
  • Daisy-chainable to expand beyond 2 monitors

What's in the box:

  • SIIG 1x2 VGA Splitter
  • Power Adapter
  • 4x Rubber Pads
  • Installation Guide
  • SIIG 2 Year Limited Warranty
