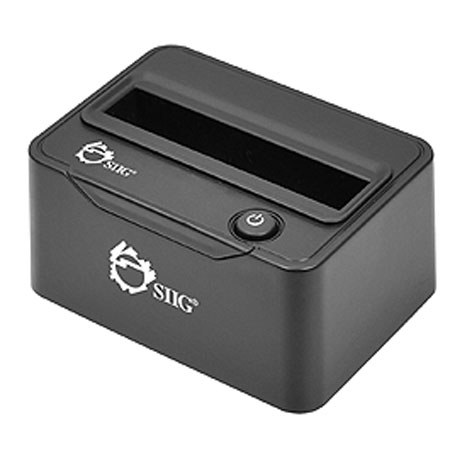

SIIG USB 3.0 to 2.5" SATA HDD/SSD Mini Docking
See all SIIG items

SIIG USB 3.0 to 2.5" SATA HDD/SSD Mini Docking

SKU: SIJUSA0L11S1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG USB 3.0 to 2.5" SATA HDD/SSD Mini Docking Specifications

  • Chipset

    Asmedia ASM1051

  • Ports

    1, 10-pin, Micro B, USB 3.0, Female, Downstream

  • Housing

    Plastic

  • USB 3.0 Y-split cable

    1 x 5-pin, Type A, USB 3.0, Male, Upstream
    1 x 4-pin, Type A, USB 2.0, Male, Upstream (for additional USB power)
    1 x 10-pin, Micro B, USB 3.0, Male, Downstream
    Length: 39.38" / 1000.25 mm

  • Operating temperature

    32 to 104 deg.F (0 to 40 deg.C)

  • Operating humidity

    5% to 85 % RH

  • Operating altitude

    -1,000 to 10,000 Ft

  • Storage temperature

    -4 to 122 deg.F (-20 to 50 deg.C)

  • Storage humidity

    5% to 95% RH

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (W x H x D)

    3.35" x 1.69" x 2.4" / 85.09 x 42.93 x 60.96 mm

  • Weight

    0.2 lbs / 0.091 kg

  • UPC Code

    662774014692

About SIIG USB 3.0 to 2.5" SATA HDD/SSD Mini Docking

The SIIG USB 3.0 to 2.5" SATA HDD/SSD Mini Docking is designed to quickly add more storage space to your USB-enabled PC (USB 3.0 recommended). It delivers SuperSpeed USB 3.0 5 Gb/s data transfer rate, supports up to 3 TB hard disk capacity and works with 2.5" 12.5 mm thick SATA hard disk drives (HDDs) or solid-state drives (SSDs). This mini docking is easy to set up, with the simple tool-less design that no driver installation is required.

Also, it is compact and draws low power consumption with no power adapter is needed. The USB 3.0 to 2.5" SATA HDD/SSD Mini Docking is compliant with Serial ATA Specification, SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification. It is FCC & CE regulatory approved and RoHS-compliant. In addition, it is fully compatible with a wide variety of Windows operating systems.

SIIG USB 3.0 to 2.5" SATA HDD/SSD Mini Docking Features

  • Quickly adds more storage space to your USB-enabled PC (USB 3.0 recommended)
  • Simple tool-less installation with no driver installation needed
  • SuperSpeed USB 3.0 5Gb/s data rate
  • Low power consumption - No power adapter required
  • Compact and low power consumption with no power adapter needed
  • Works with 2.5" 9.5mm & 12.5mm SATA hard disk drives (HDDs) or solid-state drives (SSDs)
  • Supports 3TB hard disk capacity
  • Compliant with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification
  • Compliant with Serial ATA Specification

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Simple tool-less installation
  • Supports 3TB hard disk capacity

What's in the box:

  • SIIG USB 3.0 to 2.5" SATA HDD/SSD Mini Docking
  • USB 3.0 Y-Split (Data & Power) Cable
  • User's Manual
  • SIIG 5 Years Limited Warranty
