SIIG High-speed Dual-channel PCI-to-Serial ATA Host Adapter
SKU: SISCSAT212S4
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About SIIG High-speed Dual-channel PCI-to-Serial ATA Host Adapter
The SIIG Serial ATA PCI host adapter is an ideal solution for expanding your SATA storage capacity to your desktop computer. It is designed to add two SATA channels for connecting up to two additional SATA hard disk drives. The Serial ATA PCI host adapter delivers data transfer rates of up to 1.5Gb/s and breaks the barrier to support hard disk drives larger than 137GB. It comes with two independent bus master DMA channels with 256-byte FIFOs per channel for host reads and writes and flash memory BIOS making future upgrades possible. It can be configured as a boot or secondary controller and co-exists with on-board Ultra ATA controllers.
SIIG High-speed Dual-channel PCI-to-Serial ATA Host Adapter Features
- Supports two Serial ATA hard disk drives with high-speed data transfer rates up to 1.5Gb/s (150MB/s)

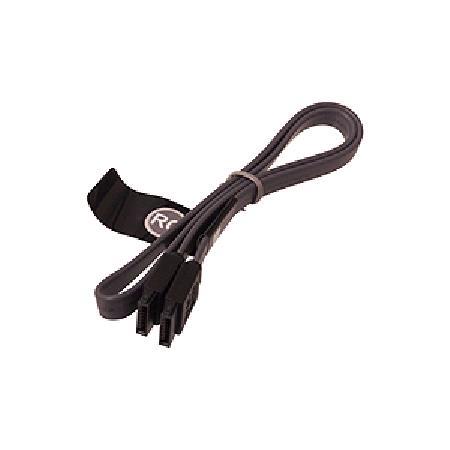

- The thin, flexible Serial ATA cable is easier to install and provides better air circulation
- Breaks the 137GB barrier! Supports various brands of large capacity Serial ATA hard disk drives
- Configure as boot or secondary controller with flash memory for future BIOS upgrades
- Lower pin count and voltage requirement, plus better cabling over traditional Parallel ATA make Serial ATA the controller of the future
- Co-exists with Ultra ATA controller
- Compliant with Serial ATA Specification, Revision 1.0
- Compliant with PCI Specification, Revision 2.3
- Features independent 256-byte FIFOs per channel for host reads and writes
- Features Watch Dog timer for fault resiliency and flash memory for future BIOS updates
- Supports 32-bit wide PCI bus at 66MHz
- Supports data transfer rates up to 1.5Gb/s (150 MB/s)
- Supports 48-bit LBA and verified to work with up to 4TB drives
