StarTech Conference Table Connectivity Box, HDMI/VGA/Mini DisplayPort to HDMI Output with Fast Charge USB Port, 1080p Resolution Support

SKU: STBOX4HDECP

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2015-12-24T19:00:00

Rated 4 out of 5

Quality product

We bought a couple of these for a major project without pre-testing. We were not disappointed and we have a very happy customer.first and smooth switching for the digital inputs. We shall continue to specify these.

Douglas

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

StarTech Conference Table Connectivity Box Specifications

  • Ports

    4

  • Audio

    Yes

  • Output Signal

    HDMI

  • Connector A

    1 - HDMI (19 pin) Female
    1 - VGA (15 pin; High Density D-Sub) Female
    1 - 3.5 mm Mini-Jack (3 Position) Female
    1 - Composite Video (1 x RCA) Female
    1 - RJ-45 Female
    1 - USB A (4 pin) Female
    1 - Mini-DisplayPort (20 pin) Female
    1 - Stereo Audio (2 x RCA)

  • Connector B

    1 - HDMI (19 pin) Male
    1 - RJ-45 Female

  • Maximum Analog Resolutions

    1920x1080

  • Maximum Digital Resolutions

    1920x1080

  • Supported Resolutions

    1920x1080 (1080p)

  • Wide Screen Supported

    Yes

  • Audio Specifications

    7.1 Surround sound (HDMI, Mini DisplayPort)
    2-Channel Stereo (3.5mm, RCA)

  • nput Voltage

    100 - 240 AC

  • Output Voltage

    12 DC

  • Output Current

    2A

  • Operating Temperature

    0 deg. C to 40 deg. C (32 deg. F to 104 deg. F)

  • Storage Temperature

    -20 deg. C to 60 deg. C (-4 deg. F to 140 deg. F)

  • Humidity

    10% to 85% (Non-condensing)

  • Dimensions (L x W x H)

    6.7 x 3.9 x 3.9" / 170.18 x 99.06 x 99.06mm

  • Weight

    58.6oz / 1661.28g

  • UPC Code

    065030858359

About StarTech Conference Table Connectivity Box

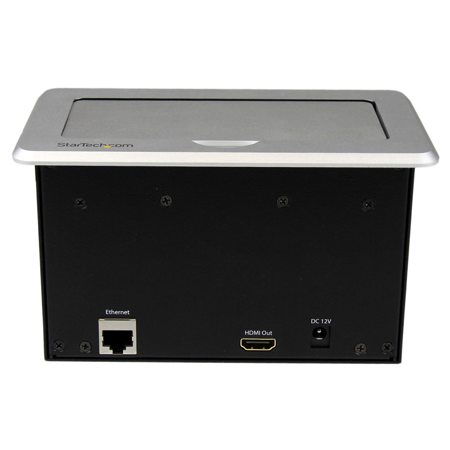

The StarTech features a concealed, in-table design that lets you connect a VGA, Mini DisplayPort, HDMI or composite video source device to an HDMI display or projector. When the video switch isn't in use, you can simply slide the stylish cover panel over the connectors, hiding them inside the table or podium surface.

Convenient Accessibility
Presenters can conveniently share content from their own device with the table top switch automatically converting any attached audio/video source device source into a single HDMI output. The switch box also offers stylish integration into your modern boardroom or classroom with a discreet hideaway panel. For added convenience the Conference Table Connectivity Box features a USB charging port to charge your mobile device and an Ethernet pass-through port for Internet connectivity in boardrooms where Wi-Fi is not available.

Connectivity Options
With support for different video inputs including: HDMI, VGA, Mini DisplayPort and composite, the video switch ensures support for almost any laptop, Ultrabook or mobile device such as MacBook, Microsoft Surface Pro 2 & 3 and Lenovo X1. The switch panel even works with legacy audio/video devices such as DVD player and supports the use of video adapters for your iPhone or iPad.

Collaborate Easily
The A/V switch makes your large display accessible to any presenter's video source device, by installing directly into the surface of your table or podium and automatically outputs the most recently connected video source. Plus, support for high-definition video resolutions up to 1920x1080 (1080p) ensures the quality of your presentation is maintained.

What's in the box:

  • StarTech Conference Table Connectivity Box
  • Universal Power Adapter
  • DieCut Outline
  • Instruction Manual
  • StarTech 2 Year Warranty
