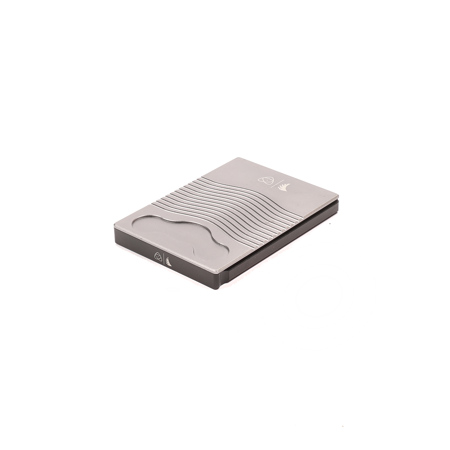

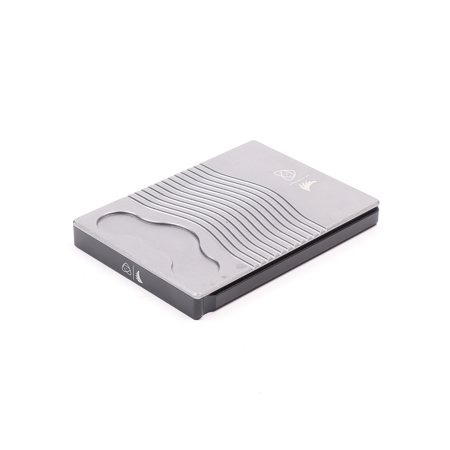

Angelbird Atomos Master Caddy 4K RAW 500GB Internal Solid State Drive, SATA 6Gb/s

Picture does not represent the actual item

See all Angelbird items
Used Condition: Average

Used Angelbird Atomos Master Caddy 4K RAW 500GB Internal Solid State Drive, SATA 6Gb/s

SKU: US2016097 MFR: 4KRAWATOM500
Be the first to review this item
$189.00
Earn VIP Reward Points
See all Used options (2) from $189

What`s in the box:

  • Angelbird AtomX 4K RAW 500GB Atomos SATA III Recording SSD
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$18.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Angelbird AtomX 4K RAW Specifications

  • Compatibility

    Shogun
    Shogun Inferno
    Shogun Flame
    Ninja Assassin
    Ninja Flame Recorders

  • Capacity

    500GB

  • Sustained Read Speed

    Up to 560 MB/s

  • Sustained Write Speed

    Up to 520 MB/s

  • IOPS 2

    Up to 86,000

  • Access Time (R/W)

    Approx. 65 Mus, 40 Mus

  • MTBF

    1,500,000 hours

  • Data Reliability

    Built-in EDC
    ECC function

  • Data Retention

    10 years at 25 deg.

  • Endurance

    Up to 120TBW

  • Certifications

    RoHS, CE and FCC compliant, REACH

  • DC input voltage

    5V +/- 10%

  • Power usage

    Idle: 1.35W
    Max: 4.7W

  • Interface

    SATA 6Gb/s, 3Gb/s and 1.5Gb/s supported, SATA 3.0 compliant

  • Over provisioning

    Approx. 9 %

  • Functions

    Temperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ, adaptive thermal protection

  • Shock resistance

    1000 G/0.5ms (operating)

  • Vibration resistance

    2.17 GRMS (operating)

  • Operating Temperature

    -20 to 105 deg. C (-4 to 221 deg. F)

  • Storage Temperature

    -40 to 85 deg. C (-40 to 185 deg. F)

  • Operating Humidity

    5 % to 95 % non-condensing

  • Dimensions

    104 x 75.5 x 11.7mm (4.09 x 2.97 x 0.46")

  • Weight

    Approx. 220g (7.76 oz)

About Angelbird Atomos Master Caddy 4K RAW 500GB Internal Solid State Drive, SATA 6Gb/s

Ready for anything your Atomos recorder can throw at it. Records high frame rates and raw CDNG files with ease, thanks to the unique feature set and its sustained write speed up to 510MB/s. The Master Caddy 4K RAW is a custom designed SSD for Atomos products that integrates the Master Caddy rails into a rock solid aluminum body, quick grip release and unique Angelbird Stable Stream design for recording high data rate CDNG RAW and 4Kp60 video recordings.

Note:

For full compatibility please ensure that your Atomos recorder is upgraded to at least firmware V8.1.

Angelbird Atomos Master Caddy 4K RAW 500GB Internal Solid State Drive, SATA 6Gb/s Features

  • Up to 560 MB/s, Up to 86.000 IOPS
  • Adaptive thermal protection
  • Power smoothing
  • ESD & overload protection
  • CNC worked
  • Host power loss protection
  • Shock & temperature proof
  • Sticker-free environmentally friendly
  • Rock-solid build
  • Stable Stream
  • Developed for ATOMOS
  • X-ray & magnetic proof
  • 4K60P / HD240 / 4K30P / CDNG
  • 3-Year limited warranty
