Used Tilta Hydra Alien Car Mounting System Pro Kit, V-Mount

SKU: US1988865 MFR: HDA-T02-A-V
$879.00
New: $1,619.10
Used Savings: $740.1 (46%)
OR
Earn VIP Reward Points

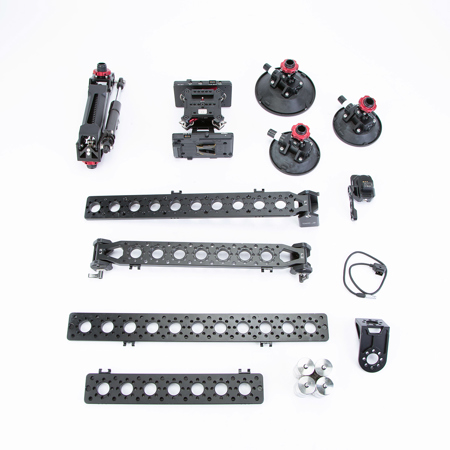

What`s in the box:

  • Hydra Alien Dovetail Plate L1 (HDA-T02-L1)
  • Hydra Alien Dovetail Plate L2 (HDA-T02-L2)
  • Hydra Alien Dovetail Plate L3 (HDA-T02-L3)
See more

Key Features

  • Achieve smooth, dynamic car shots with the Tilta Hydra Alien car mounting system.
  • Mount your DJI Ronin RS 2 securely with this Pro Kit's robust, vibration-free platform.
  • Capture cinematic footage using the shock-absorbing arm and hydraulic damping pole.
  • Enjoy versatile power options with the V-Mount battery plates for extended shoots.
  • Easily adjust your setup with the 90-degree adapter for optimal camera angles.
  • Trust the durable aluminum build & multiple suction cups for payloads up to 220 lbs.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Tilta Hydra Alien Car Mounting System Pro Kit, V-Mount Specifications

Hydra Alien Car Mounting System

Hydra Alien Car Mounting System

Jump to...
  • Additional Includes

    Power Supply Base Plate (TGA-PBP)
    8x 220g Counterweight (TGA-CW-220)
    Hydra Alien Cable Clamp Suction Cup (HDA-T02-CSC)
    Hydra Alien Tool Hardware (HDA-T02-TK)
    Safety Belt (219-000000-089)
    Hydra Dual Battery Plate Cradle Head (V-Mount/HDA-BCH-V)
    2x Hydra Alien V-Mount Battery Plate (HDA-T02-BP-V)
    Hydra Alien 90 Degree Adapter (HDA-T02-ASA)

  • Additional Includes (Contd.)

    Hydra Alien Shock Absorbing Head (HDA-T02-SAH)
    Hydra Alien Dual Battery Plate Support Bracket (HDA-T02-DPS)
    Hydra Alien Car Mounting Hard Shell Waterproof Safety Case (HDA-T02-WSC)
    Hydra Alien Monitor Bracket (HDA-T02-MB)
    Remote Control Handle (TGA-RCH)
    Remote Control Receiver Module (TGA-RCR)
    6-Pin Lemo to 6-Pin Lemo Cable (500cm) (TCB-6LE-6LE-500)

  • Compatibility

    DJI Ronin RS 2

  • Power Source

    Battery (Not Included)

  • Battery Mount Type

    V-Mount

  • Material

    Aluminum

  • Mounting

    Multiple Suction Cups

  • Payload

    Small Suction Cup: 121.25 lbs (55kg)
    Large Suction Cup: 220.46 lbs (100kg)

  • Dimensions

    32.67 x 13 x 6.69" (83 x 33 x 17cm)

  • Weight

    14.3 lbs (6.5kg)

Power Supply Base Plate

Jump to...
  • Color

    Black

  • Material

    Aluminum Alloy

  • Mounting

    1x 1/4"-20 with Anti-Twist Divots
    2x 1/4"-20
    2x 3/8"-16

  • Output

    Voltage: 13 to 17 VDC
    Port: 2-Pin

  • Dimensions

    2.75 x 1.92 x 1.69" (7 x 4.9 x 4.3cm)

  • Weight

    3.88 oz (110g)

Counterweight (7.76 oz/220g)

Jump to...
  • Material

    Stainless Steel

  • Compatibility

    DJI RS 2 and RSC 2 Gimbal

  • Weight

    7.76 oz (220g)

Hydra Alien V-Mount Battery Plate

Jump to...
  • Color

    Black

  • Material

    Aluminum, Stainless Steel, Plastic

  • Power Outputs

    1x 14.8 VDC D-Tap
    2x 12 VDC Barrel
    1x 8 VDC Barrel

  • Battery Info

    Required, not included

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

  • Battery Type

    V-Mount

Hard Shell Waterproof Safety Case

Jump to...
  • Color

    Black

  • Material

    Plastic

Hydra Alien Monitor Bracket

Jump to...
  • Color

    Black

  • Material

    Aluminum-alloy, stainless steel

  • Dimensions

    58.66 x 20.86 x 40.35" (149 x 53 x 102.5cm)

  • Weight

    4.93 oz (140g)

About Tilta Hydra Alien Car Mounting System Pro Kit, V-Mount

Just when you thought car-mounted cinematography couldn't get any more advanced, the Hydra Alien Car Mounting System Pro Kit, V-Mount, elevates the game. This professional-grade, durable kit is designed to provide filmmakers with a versatile and sturdy platform for capturing dynamic shots from any vehicle.

The Pro Kit is a comprehensive solution that includes a Remote Control Kit for seamless wired or wireless operation of the DJI RS 2 gimbal. With the Hydra Alien Monitor Bracket, monitoring your footage becomes effortless, ensuring that you maintain control over your shots while on the move.

Crafted for compatibility with smaller gimbals, the Hydra Alien Car Mounting System offers a lightweight yet high-quality option for car-mounted shots. Its innovative design features a customizable array of dovetail-like plates and robust suction cups, each capable of supporting a payload of up to 50kg. The suction cups are engineered with updated plungers that create a stronger seal, enhancing security, especially in colder climates.

The system's elasticity is thanks to the shock-absorbing silicon, which not only provides longevity but also minimizes abrasion. For precise shot placement, the interconnected system allows for fine-tuning to achieve nearly any angle imaginable. Additionally, the shock-absorbing arm and spring-loaded cradle head cater to a variety of shooting requirements, including inverted gimbal positions.

The inclusion of a Hydraulic Dampening Pole is a testament to the system's commitment to stability, ensuring smoother results even when driving conditions are challenging. Full wireless control of the RS2 is at your fingertips with the Remote Control Kit, which also features a thumbstick for precise pan and tilt operations.

This mounting system supports a wide range of camera setups, from DSLRs and mirrorless cameras to larger professional rigs. With 8 modes of installation, your creativity is limitless. The Enhanced Triangle Mounting Configuration guarantees ultimate security for your camera, no matter the angle or the intensity of the shoot.

Quick assembly and a folding dovetail plate with multiple expansion screw holes make this system highly efficient when switching between camera setups. The V-Mount or Gold Mount Battery Plate options ensure continuous operation, providing more protection for your camera during high-speed chases and bumpy conditions.

The Power Supply Base Plate for RS 2 and the side holding bracket offer additional security and power options, ensuring your gimbal operates for extended periods. The 220g counterweight and the Hydra Alien V-Mount Battery Plate further optimize balance and power distribution, while the Hard Shell Waterproof Safety Case provides a secure and protective transport solution.

Finally, the Hydra Alien Monitor Bracket is the epitome of ergonomic design, allowing for comprehensive control over your RS 2 gimbal, lens focus, and shot monitoring, all while supporting additional accessories through its integrated V-Mount Plate and 1/4"-20 threads.

The Hydra Alien Car Mounting System Pro Kit, V-Mount, is the ultimate tool for filmmakers seeking a durable, high-quality, and versatile car mounting system that can withstand the rigors of professional film and video production.

Tilta Hydra Alien Car Mounting System Pro Kit, V-Mount Features

  • Unlimited Creativity: Durable & Lightweight with Flexible Installation Angles
  • Fast & Steady Optimized Shock Absorption for Smooth Camera Movement
  • RS2 Remote Kit Supports Full Wireless Control of the DJI RS2 gimbal
  • Flexible Power Options: Longer Shooting Duration via V-Mount Battery Plates
  • Heavy Duty Case for Added Security While Transporting

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Achieve smooth, dynamic car shots with the Tilta Hydra Alien car mounting system.
  • Mount your DJI Ronin RS 2 securely with this Pro Kit's robust, vibration-free platform.
  • Capture cinematic footage using the shock-absorbing arm and hydraulic damping pole.
  • Enjoy versatile power options with the V-Mount battery plates for extended shoots.
  • Easily adjust your setup with the 90-degree adapter for optimal camera angles.
  • Trust the durable aluminum build & multiple suction cups for payloads up to 220 lbs.
