Blackmagic Design Battery Converter HDMI to SDI
See all Blackmagic Design items

Blackmagic Design Battery Converter HDMI to SDI

SKU: VDBMBCH2S

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2014-01-27T19:00:00

Rated 5 out of 5

Great product

This is built like tank. I really like it. Even though I haven't really used it as much, just tested it so far, it works perfectly. I love the fact that it's build solid. I can see myself using it for a long time.

ABID P.

Blackmagic Design CONVBATT/H Specifications

  • SDI Video Input

    No

  • SDI Video Output

    2x SD/HD-SDI outputs automatically match the SD/HD video input

  • HDMI

    HDMI type A in

  • Multi Rate Support

    Auto detection of HD or standard definition HDMI inputs

  • Software Updates

    Via USB 2.0 high speed. (480 Mb/s)

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601

  • SDI Video Rates

    SDI video connections are switchable between standard definition and high definition

  • SDI Video Sampling

    4:2:2

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Color Precision

    4:2:2

  • SDI Color Space

    YUV

  • SDI Auto Switching

    Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI

  • HDMI Color Precision

    4:2:2 in all formats and 4:4:4 up to 1080p29.97

  • SDI Format Support

    525/29.97 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60

  • HDMI Format Support

    480p60 NTSC, 576p50 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60

  • HDMI Color Space

    YUV and RGB

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

  • Video Lock Indicator

    LED indicates input video signal lock

  • Internal Software Upgrade

    Via included software updater application

  • Power Supply

    Integrated Lithium-ion Polymer rechargeable battery. 12V-31V DC port for external battery power or use included 12V AC adapter with international socket adapters for all countries. Cable tie point

  • Battery

    Over 2 hours battery life. Battery charge indicator with On/Off switch to preserve battery life

  • Power Consumption

    Typically 2.3 W

  • Operational Voltage Range

    12 - 31 Vdc

  • UPC Code

    9338716001655

About Blackmagic Design CONVBATT/H

FEATURED REVIEWS

Great product

By ABID P.

This is built like tank. I really like it. Even though I haven't really used it as much, just tested it so far, it works perfectly. I love the fact that it's build solid. I can see myself using it for a long time.

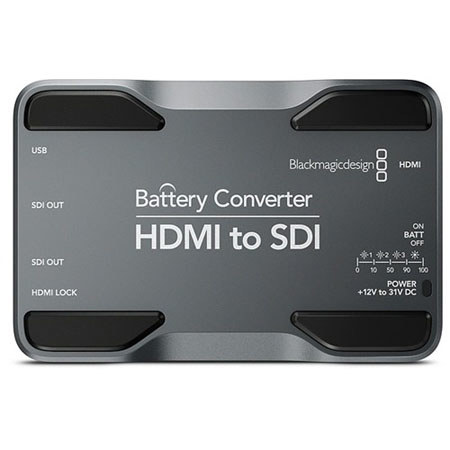

The Blackmagic Design Battery Converter (HDMI to SDI) is amazingly versatile and lets you work on location without external power! Now you can get the highest quality 3 Gb/s SDI conversion everywhere you go. Battery Converter is available in HDMI to SDI model and supports a huge range of video formats up to 1080p60 HD. The converter automatically switches between SD, HD and 3 Gb/s SDI standards and supports embedded SDI and HDMI audio. Battery Converter also features a super tough design that's perfect for outside broadcast and live events!

Blackmagic Design CONVBATT/H Features

  • Protected Recessed Connections: Extending HDMI cable lengths during live production is easy as you can add a Battery Converter HDMI to SDI and use long SDI cables for your cameras
  • Built-in Battery Power: The built-in lithium-ion polymer battery provides more than two hours of charge and, when you need to, you can power or recharge the unit easily from any 12V source. An LED indicates the battery charge level
  • Latest SDI Technology: Battery Converter features the latest 3 Gb/s SDI technology with low jitter so you can use long SDI cable lengths and maintain perfect video quality
  • Super Tough Design: Battery Converter is machined from aircraft grade aluminum and, like Mini Converter Heavy Duty models, features scratch resistant laser etched labeling and non slip rubber feet
