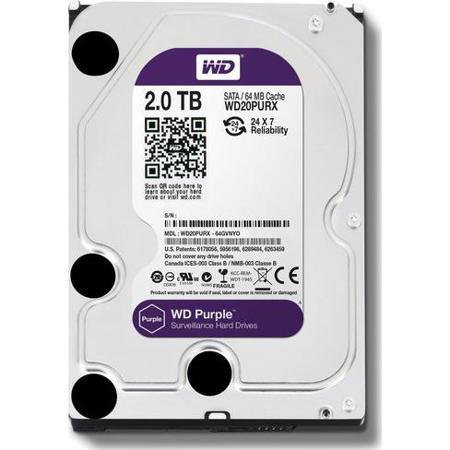

WD Purple Surveillance 2TB IntelliPower SATA 3.5" Internal Hard Drive, 6Gb/s Data Transfer Rate, 64MB Cache

SKU: WD20PURX

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-12-12T19:00:00

Rated 5 out of 5

2 terabyte hard drive

Installed quickly without issue and worked perfectly.

Bryan R.

2022-11-27T19:00:00

Rated 5 out of 5

THANKS FOR THE WARRANTEE

YES THE DVR THAT YOU REPLCED HAS MADE OUR SYSTEM COMPLETE AGAIN

BEN C.

2022-11-25T19:00:00

Rated 4 out of 5

I have not used as

I have not used as yet. It would have been over the top to receive written information on how to incorporate the hard drives in my out dated system

Patrick F.

2022-09-18T20:00:00

Rated 5 out of 5

Return

Didn't need it .

Gregory R.

2022-08-19T20:00:00

Rated 5 out of 5

Working good

Working good

Mauricio H.

2022-08-16T20:00:00

Rated 5 out of 5

Great

Great

Domingo G.

2022-05-25T20:00:00

Rated 5 out of 5

Great target bigger

Was real easy to swap out

Travis L.

2022-05-18T20:00:00

Rated 5 out of 5

Good

Good

angela g.

2022-02-19T19:00:00

Rated 5 out of 5

Excellent !!!

Was so easy, a novice could have replaced it. Simple 2 wire plug and play. No software to load.

Kevin G.

2021-11-28T19:00:00

Rated 5 out of 5

Great security system.

Love the camera image quality. My old cameras used to fog up at night, yours haven?t. Your tech service is far better than others zi have used, Very happy I switched to Lorex.

Robert H.

WD WD20PURX Specifications

  • Formatted capacity

    2TB

  • User sectors per drive

    3,907,029,168

  • Form factor

    3.5"

  • Advanced Format (AF)

    Yes

  • RoHS compliant

    Yes

  • Data transfer rate

    Buffer to Host: 6Gb/s
    Host to/from Drive (sustained): 145 MB/s

  • Cache

    64MB

  • Rotational speed

    IntelliPower

  • Load/Unload Cycles

    300,000

  • Non-Recoverable Read Errors

    <10 in 10 14 Per Bits Read

  • Average Power Requirements

    Read/Write: 4.4W
    Idle: 4.1W
    Standby and Sleep: 0.6W

  • Compatibility

    PC/Mac

  • Operating Temperature

    0 to 65deg.C

  • Non-Operating Temperature

    -40 to 70deg.C

  • Shock

    Operating (2 ms, read/write): 30 Gs
    Operating (2 ms, read): 65 Gs
    Non-Operating (2 ms): 250 Gs

  • Acoustics

    Idle: 23 dBA
    Seek (average): 24 dBA

  • Dimensions (H x L x W)

    1.03 x 5.78 x 4" / 2.61 x 14.68 x 10.16cm

  • Weight

    1.40 lbs / 0.63 kg

  • UPC Code

    718037823331

About WD WD20PURX

FEATURED REVIEWS

2 terabyte hard drive

By Bryan R.

Installed quickly without issue and worked perfectly.

THANKS FOR THE WARRANTEE

By BEN C.

YES THE DVR THAT YOU REPLCED HAS MADE OUR SYSTEM COMPLETE AGAIN

The WD Purple Surveillance 2TB IntelliPower SATA 3.5" Internal Hard Drive is designed to withstand the stresses placed on it in a 24/7 surveillance system. With support for up to 32 high-definition surveillance cameras this 2TB hard drive can hold a large amount of data and gives you the ability to easily upgrade and expand your security system.

The smart choice for surveillance
WD Purple Surveillance Storage offers exclusive AllFrame technology to bring you premium reliability and peace-of-mind when installing your home or small to medium business security system. WD Purple's exclusive firmware upgrades work with ATA streaming to reduce error pixilation and video interruptions that occur when desktop hard drive is incorrectly used as storage in security systems. WD Purple Surveillance Storage is built for 24/7, always-on, high-definition surveillance security systems that use up to eight hard drives and up to 32 cameras.

Desktop drives vs surveillance-class storage
You wouldn't use a bicycle to transport cargo across the country because it's not the right tool for the job. You also shouldn't use a desktop hard drive in your surveillance security system because it wasn't designed for that application. WD Purple surveillance-class storage has been tested to be compatible in a wide-range of security systems. This drive is designed to replace standard desktop drive that was not designed for the harsh 24/7 always-on, high-definition surveillance environment. Desktop drive is built to run for only short intervals and is not engineered to withstand high-temperature fluctuations and equipment vibrations found in a typical surveillance application.

Surveillance storage for peace-of-mind
Whether you're protecting your personal assets and loved ones or monitoring the business you worked hard to build, you can rely on surveillance-class storage built by one of the largest hard drive manufacturers in the world. WD Purple Surveillance Storage is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video play back when you need it most. Experience the security of knowing you're using a surveillance-class drive designed by a leader in the hard drive industry.

Engineered for compatibility
WD Purple surveillance hard drive is built for compatibility with industry-leading chassis and chip set manufacturers for seamless integration into your new or existing video surveillance system. Check out compatibility selector to find out what surveillance drive is right for you.

Lower power consumption
Low power consumption is crucial in high-temperature always-on surveillance environments. With exclusive IntelliSeek technology, WD Purple drive calculates the optimum seek speeds which lowers power consumption, noise and vibration that can damage and cause desktop drives to wear out more quickly.

Optimized performance for up to 32 HD cameras
WD Purple hard drive is optimized to support up to 32 high-definition surveillance cameras, giving you the flexibility to upgrade and expand your security system in the future.

Recommended use
WD Purple storage is tested and recommended for use in surveillance and security systems up to 8 bays and optimized for 32 HD cameras. For additional surveillance capacity, look at WD datacenter hard drive. WD Purple is not recommended for use in NAS environments, you can use WD Red hard drive for desktop RAID and NAS environments or WD datacenter hard drive for rackmount or large RAID configurations.

What's in the box:

  • WD Purple Surveillance 2TB SATA 3.5" Internal Hard Drive
  • Mounting Screws
  • WD 3 Year Limited Warranty
