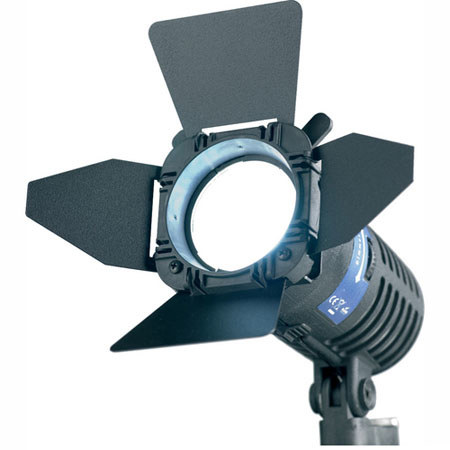

Bebob Engineering BE-LULED-Z57-4 LUX-LED12 Light with 4-Leaf Barndoors, Sony HXR-NX5U Adapter, D-Tap Cable

SKU: ZOLULEDZ574

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Bebob Engineering BE-LULED-Z57-4 Specifications

  • Compatible Camcorders

    Sony MiniHD Z5/Z7

  • Input Voltage

    6.5-28VDC

  • Power

    4W

  • Operating Temperature

    Normal: 68 Deg.F (20 Deg.C)
    Max. 122 Deg.F (50 Deg.C)
    Min. -4 Deg.F (-20 Deg.C)

  • Humidity

    Condensed: 80% rel. humidity

  • Focus

    Median Range of Light: 40-60 Deg.

  • Dimmer

    0-100%

  • Connector

    AB-DTAP (XLR on request)

  • Mounting

    Universal camera mounting

  • Weight

    Without Barndoors: 0.6 lbs (272.1 kg)
    With 2 Barndoors: 0.9 lbs (408.2 kg)

7 Accessories for Bebob Engineering BE-LULED-Z57-4 LUX-LED12 Light with 4-Leaf Barndoors, Sony HXR-NX5U Adapter, D-Tap Cable

  • All Accessories (7)
  • Batteries & Power Supply (2)
  • Gaffer Tape (3)
  • Mounting (1)
  • Brackets & Mounts (1)

About Bebob Engineering BE-LULED-Z57-4

The Bebob Engineering BE-LULED-Z57-4 LUX-LED12 4 Leaf Kit with Sony HXR-NX5U Adaptor is based on an energy-efficient LED light with just 4W power consumption. The kit includes the HXR-NX5U adaptor that fits the battery compartment on the Z5 and Z7 Sony MiniHD camcorders.

Once the LED light kit is fitted to the camcorder using the standard shoe horn mounting, regular batteries are placed in the adaptor. The provided D-tap cable allows the batteries to power both the camera and the on-camera light. The 4W LED light has a built-in dimmer to control light intensity, as well as a focus slide mechanism that controls the illumination angle between 40deg. (spot) and 60deg. (flood). The kit includes detachable 4-leaf barn doors to adjust light spill and focus.

Bebob Engineering BE-LULED-Z57-4 Features

  • On-camera LED light with low power consumption (4W)
  • Kit includes the HXR-NX5U adaptor for Sony MiniHD camcorders Z5/Z7
  • Shoe horn for camera mounting
  • D-tap cable for sharing power between camera and LED light
  • Built-in dimmer to manage light intensity
  • Focus slide mechanism allows illumination angle to be adjusted between 40deg. (spot) and 60deg. (flood)
  • 4-leaf barndoors for focusing light and controlling light spill

Key Features

  • Shoe horn for camera mounting
  • Built-in dimmer to manage light intensity

What's in the box:

  • Bebob Engineering BE-LULED-Z57-4 LUX-LED12 Light
  • 7.2V Adapter for Sony Z5/Z7
  • 4-Leaf Barndoor
  • Bebob Engineering 5 Years Warranty
