Zoom TAC-2 Thunderbolt Audio Interface for Mac
See all Zoom items

Zoom TAC-2 Thunderbolt Audio Interface for Mac, Up to 24-Bit/192kHz

SKU: ZOZTAC2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Zoom TAC-2 Specifications

  • Input Connectors

    XLR / TRS combo jacks (XLR: 2 hot / TRS: TIP hot)

  • Input Gain

    0,9 to 60 dB (3 dB step)

  • Input Impedance

    3 kohms

  • Maximum Input Level

    +12 dBu ( at 0 dBFs)

  • Output Connectors

    1/4" TRS phone jack (balanced)

  • Maximum Output Level

    +15 dBu ( at 0 dBFs)

  • Output Impedance

    100 ohms

  • Headphone Connector

    1/4" stereo phone jack
    20 mW + 20 mW (into 32ohms load)

  • Maximum Headphone Output Level

    +10 dBu ( at 0 dBFs)

  • AD/DA Conversion

    Type: 4 x up-sampling
    Chipset: Burr Brown PCM4202 (A/D), AKM AK4396 (D/A)

  • Frequency Response

    -2.0 dB: 20 Hz - 50 kHz at 192kHz setting
    -1.0 dB: 20 Hz - 34 kHz at 96kHz setting
    -0.4 dB: 20 Hz - 20 kHz at 44.1kHz setting

  • Dynamic Range

    A/D: 118dB typical (IHF-A)
    D/A: 120dB typical (IHF-A)

  • S/N Ratio

    125 dB (IHF-A) at 60dB, 150 ohms input

  • Audio Channels

    Recording: 2
    Playback: 2

  • Sampling Frequency

    92 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

  • Bit Depth

    24-bit

  • Interface

    Thunderbolt

  • Power

    Thunderbolt Bus Power

  • Dimensions

    5.1 x 4.7 x 2" / 12.95 x 11.93 x 5.08cm

  • Weight

    14.8oz / 419.57g

  • UPC Code

    884354012656

About Zoom TAC-2

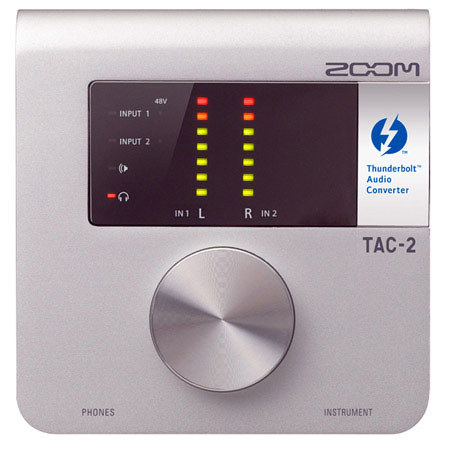

The Zoom TAC-2 is a compact 2-in, 2-out bus-powered Thunderbolt audio interface that allows for ultra-low latency and supports audio up to 24-bit/192kHz. It features two balanced XLR/TRS inputs with 48V phantom power, a Hi-Z input jack for electric guitars and basses and two balanced TRS outputs for connecting an amplifier or powered speakers.

The TAC-2 also features a Burr Brown PCM4202 analog-to-digital converter with mic preamps that provide up to +60dB of amplification. It uses the AKM AK4396 digital-to-analog converter to provide high-quality output to your monitors, and thanks to the Thunderbolt connectivity, provides lower latency than is possible with USB 3.0.

Zoom TAC-2 Features

  • Works with all Thunderbolt-equipped Macintosh computers running OS X 10.6.8 or later
  • Dedicated headphone jack with independent level control
  • 7-position LED metering for input, output and headphone volume
  • 4x up-sampling during A/D and D/A conversion for reduced noise and enhanced fidelity
  • Asynchronous transfer system unaffected by computer jitter
  • Simple user interface-all operations controlled by a single rotary knob
  • Bus powered--no AC power required
  • Rugged yet compact and lightweight

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Works with all Thunderbolt-equipped Macintosh computers running OS X 10.6.8 or later
  • Dedicated headphone jack with independent level control
  • 7-position LED metering for input, output and headphone volume
  • 4x up-sampling during A/D and D/A conversion
  • Asynchronous transfer system unaffected by computer jitter
  • Simple user interface-all operations controlled by a single rotary knob

What's in the box:

  • Zoom TAC-2 Thunderbolt Audio Interface
  • 3.3' (1 m) Thunderbolt Cable
  • Zoom Warranty
