Name: Bosch LTC 8782/60-04 Code Translator - Biphase to Kalatel RS-422 Translator, 120 VAC
Brand: Bosch
SKU: BHLTC8782604
Price: 1959.99 USD
Availability: Discontinued

Bosch LTC 8782/60-04 Code Translator - Biphase to Kalatel RS-422 Translator, 120 VAC

Bosch LTC 8782

Bosch

Bosch LTC 8782/60-04 Code Translator - Biphase to Kalatel RS-422, 120 VAC

Adorama

Home Electronics

Home Security & Surveillance Systems

Surveillance Lenses & Accessories

Bosch Surveillance Lenses & Accessories

Bosch LTC 8782

Buy: Bosch LTC 8782/60-04 Code Translator - Biphase to Kalatel RS-422 Translator, 120 VAC

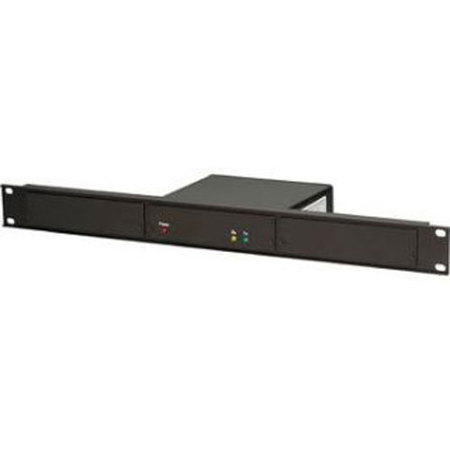

The LTC 8782 Series Code Translators are accessory units that convert Biphase code to other manufacturers' control codes, or converts other manufacturers' codes to Biphase. Many of the most popular protocol codes are supported, including Pelco, American Dynamics, and Vicon. Fixed and variable speed codes are supported where applicable. The LTC 8782 Series Code Translators have four independent outputs. Removable screw terminal blocks are used for input and output connections. Front panel LEDs indicate the status of power, data receive, and data transmit. The translator comes supplied in an EIA 48 cm (19 in.) rack-mount adapter that can hold up to three units.The LTC 8782/x0-04 is a Bi-Phase to Kalatel code translator to permit control of Kalatel receivers from BiPhase controllers. It receives Bi-Phase code and transmits the appropriate commands in Kalatel RS-422 protocol. The translator can be programmed by internal switches for the following:&#149; Either Kalatel Digiplex III or Digiplex II code type can be selected. &#149; Offset the Bi-Phase addresses to one of four (4) Kalatel Digiplex II address blocks that support up to 96 cameras each. In large systems, four (4) translators can be used to support up to 384 cameras. &#149; Offset the Bi-Phase addresses to one of 4 Kalatel Digiplex III address blocks that support up to 256 cameras each. In large systems, four (4) translators can be used to support up to 1024 cameras. &#149; Support output baud rates of 2400 and 4167 for Digiplex II, 2400 and 4800 for Digiplex III.
