Buy: Lynx Technik AG yellobrik CHD 1802 HDMI to 3Gbit SDI Converter with 3D Support Converts to: 3G HD-SDI

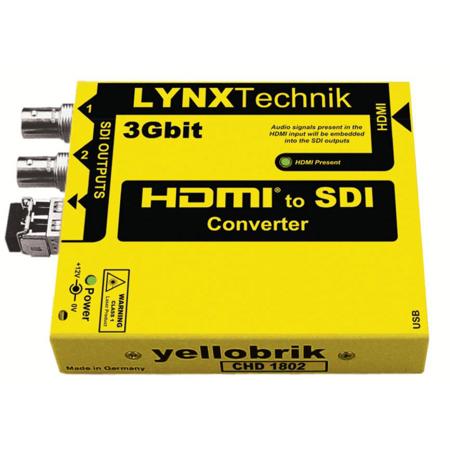

The CHD 1802 is a compact HDMI to SDI converter It is an ideal solution for any application which requires a broadcast quality SDI signal derived from an external HDMI source. Any audio present in the HDMI stream will be embedded into the corresponding channels on the SDI output. The module is also compatible with the yelloGUI software package, which provides access to a host of additional internal settings Technical Specifications. An SDI fiber output is also provided with a variety of plug in SFP options available.  Video Output Resolution  The SDI output format is automatically selected based on the detected HDMI input resolution. The module does not have an internal scaler, so if the input resolution does not match any of the supported SDI formats then the module will automatically select an appropriate SDI standard with a similar number of lines and pixels and map the signal into the SDI output, which may result in some image cropping (cut) or boxing (blanking).  &#149; Supports SD/HD/3G -SDI formats &#149; 3D support &#149; 2x SDI outputs &#149; Optional SDI fiber output &#149; HDMI embedded audio passed transparently &#149; HDMI present LED indication &#149; yelloGUI compatible to access additional internal settings
