Name: Used Clear-Com RS-703 Two-Channel Beltpack undefined
Brand: Clear-Com
SKU: US1620881
Price: 299.00 USD
Availability: Discontinued

Clear-Com RS-703

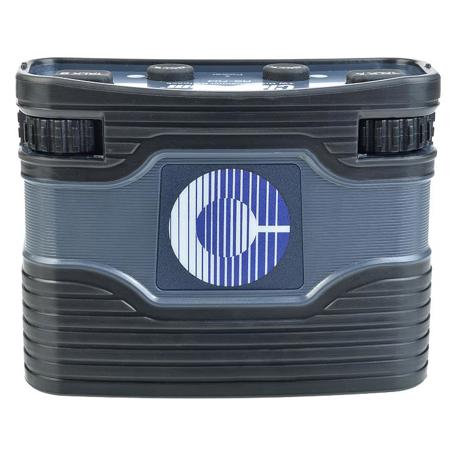

Clear-Com RS-703 Two-Channel Beltpack

Clear-Com

Buy it <b>New</b>

Clear-Com RS-703 Two-Channel Beltpack - SKU#1620881

Adorama

Used

Audio

PA & Live Sound

Intercom Systems

Clear-Com Intercom Systems

Clear-Com RS-703

Buy: Used Clear-Com RS-703 Two-Channel Beltpack undefined

The RS-703 is a two-channel analog beltpack that can carry power and audio through the XLR-3 line connector. Each beltpack combines high headroom, low-noise audio and shaped frequency contour (the "Clear-Com Sound") to deliver clear audio. &#149; Two-channel analog beltpack &#149; XLR-3 line connectors with 2-Channel connectivity &#149; Visual LED indication on top of key-pad for Power (green), Call Signal (amber) and Talk Latch (green) &#149; Tactile buttons for Call and Talk &#149; Recessed rotary control for Volume with end stops for 270deg. rotation range &#149; Concealed, programmable DIP Switches for Latch Talk on Channels A/B, Talk with Call, LEDs Off, Mic Gain, Mic Type, HP Level Off, Min Volume, RTS/Clear-Com and Call-on Talk &#149; Program Audio thumbwheel adjustment &#149; 3.5mm Program Audio Input jack &#149; RTS-TW compatible &#149; Fully compatible with current and previous models of Clear-Com analog partyline systems &#149; Low operating current for more beltpack daisy-chaining &#149; Rugged and strong construction &#149; Clear-Com Sound" for intelligible audio  Operation The RS-703 features LEDs on the top of the beltpack for visual indication of incoming and outgoing call signaling. A mic preamp enables intelligible voice communication for every volume level. Recessed rotary volume control, Talk and Call keys guard against accidental activation. The RS-702 has low operating current to allow for more beltpacks in a daisy-chain. Additionally, a thumbwheel level adjustment is available for Program In, as well as a 3.5mm TRS jack for Program Input.  DIP Switches and LEDs A concealed DIP switch panel on the back of the beltpack allows the capability to select audio and key options quickly and easily. DIP switches can control features such as switching between electret or dynamic headsets, setting a minimum or off level for headphone output, adjusting volume settings, enabling or disabling LED signals, having Call on Talk or latching the Talk key for Channel A, having Call on Talk or latching the Talk key for Channel B, Channel B Minimum Volume setting and RTS/Clear-Com Select (RS-703 only). A green LED indicates that the beltpack is powered and a green LED on the Talk key indicates that the microphone is active (Talk is latched). An amber LED indicates a Call signal on the channel.  Improved Design The RS-703 is designed in a rugged and reliable casing with a retro-design connection to the previous RS-500 Series beltpacks. A belt clip allows a variety of ways to use the belt-pack; users can clip it to a belt or lanyard or users can mount the belt clip to a wall, pole or desk for fixed installations.  Compatibility The RS-703 is compatible with all Encore partyline products, as well as the PL-Pro line and other TW partyline systems via Encore interfaces.

Used Clear-Com RS-703 Two-Channel Beltpack

Buy it New

Clear-Com RS-703 Two-Channel Beltpack
