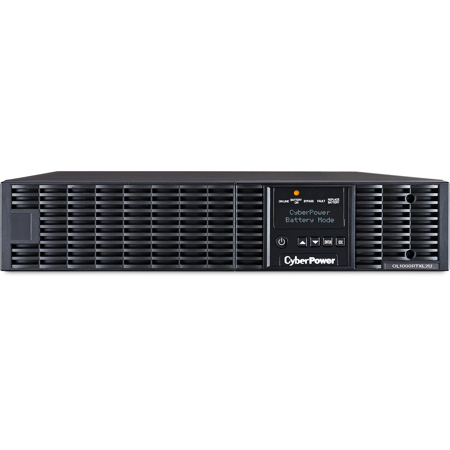

CyberPower Smart App Online 1000VA / 900W Rack/Tower Pure Sine Wave UPS

CyberPower : Picture 1 thumbnail CyberPower : Picture 2 thumbnail CyberPower : Picture 3 thumbnail
Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About CyberPower

The CyberPower Smart App Online OL1000RTXL2U rack/tower uninterruptible power supply (UPS) with LCD control panel and pure sine wave output safeguards mission-critical servers, data center and telecom equipment, VoIP and internetworking hardware that require seamless power correction. Its Double-Conversion topology is generator compatible and delivers consistent and clean AC power with zero transfer time, protecting connected equipment and preventing costly business interruptions. Auto-bypass insures connected equipment continues to operate seamlessly when an overload or internal fault is detected. This UPS system is ENERGY STAR qualified with patented technology to save on energy costs by reducing energy consumption and heat buildup.

Configurable GreenPower UPS ECO Mode improves UPS efficiency to 93% and reduces electrical and cooling costs. Smart Battery Management (SBM) uses a 3 cycle charging mode to improve battery life while reducing heat being generated.

The LCD control panel provides 43 different settings to check status and customize the operating parameters for the OL1000RTXL2U, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (19) different parameters, (23) settings for setup, control and testing of the UPS and (1) selection for event logging. With a DB26 cable (sold separately) the LCD control panel can be removed from the UPS and relocated up to 10ft. away from the UPS for ease of viewing when installed in hard to reach locations.

The UPS incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP/HTTP Remote Management adapter (RMCARD302) supports remote management and control of the OL1000RTXL2U through a standard web browser.

The OL1000RTXL2U unit has a capacity of 1,000VA/900Watts (0.9 power factor) that can be configured for an output of 100V, 110V, 115V, 120V and 125V +/- 2%. It features eight (8) outlets with NEMA 5-15R receptacles and maintenance-free, hot swappable, user-replaceable batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. Network grade surge suppression and EMI/RFI filters increase the immunity of the load to noise disturbances. The runtimes are expandable by adding a hot swappable, user replaceable BP36V60ART2U Extended Battery Module (EBM).

CyberPower Features

  • Double-Conversion & Pure Sine Wave Output - The OL1000RTXL2U with Double-Conversion topology provides continuous pure sine wave output with zero transfer time by converting utility AC power to DC power and inverting it back to pure sine wave AC output
  • LCD Control Panel - Status and log menus provide UPS vitals including input & output voltage levels, battery information, runtime estimates, load information, event and fault logging and other system information
  • Removable LCD Control Panel - The LCD control panel on the OL1000RTXL2U can be removed and relocated for easy viewing by using a DB26 cable (sold separately) that can be attached to the front of the UPS
  • GreenPower UPS Eco Mode - The OL1000RTXL2U can be placed into an ECO mode that places the UPS into a bypass state with a user selectable voltage range for switching back to traditional Double-Conversion online mode. This mode improves the UPS efficiency from 90% to 93%
  • Fast Charge Technology - Each UPS and EBM (BP36V60ART2U) has its own built in charger that enables the UPS to recover its charge rapidly when utility power is restored. As a result, your charging time remains the same whether you add one EBM or ten modules
  • Smart Battery Management - SBM uses a 3-cycle charging mode that improves battery life and reduces heat generated. The first mode charges the battery to full, the second mode maintains the charge at max and the final mode turns the charger off and allows the battery to "rest"
  • Windows Compatibility - The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
  • Linux & Virtual Machine OS Compatibility - PowerPanel power management software has been fully tested and is compatible with most mainstream brands of Linux and many of the popular versions of Virtual Machine Operating Systems such as VMware ESX/ESXi and Citrix
  • Critical & Noncritical Loads - The UPS has two banks of outlets that can be configured so that the noncritical loads shut off after a set time frame to provide additional runtime for the critical load outlet
  • Emergency Power Off (EPO) - The EPO port can be connected to a master power switch allowing the power to be cut to the UPS in the event of an emergency
  • Generator Compatible - When connected to a generator, the UPS can have the generator mode enabled so the UPS continues to receive input power, even when the generator output frequency is less than stable
  • Converter Mode - With OL1000RTXL2U, IT managers have the flexibility to set the output frequency, regardless of the input frequency, to match their connected equipment by selecting a 50Hz or 60Hz output on the LCD control panel
  • Multiple Language Options - The OL1000RTXL2U LCD control panel can be configured in English, Spanish and French for ease of use
  • USB & Serial Connectivity - HID compliant USB port and Serial port enables full integration with built-in power management and auto shutdown features of Windows, Linux and VMware
  • EMI/RFI Filters - Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment
  • Audible Alarms - Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low
  • Resettable Circuit Breakers - Convenient unit reset switch in case of an overload

CyberPower Specifications

UPS Topology
Energy Saving
Yes - ECO Mode Efficiency >93%
Input: Voltage
100Vac - 125Vac
Input Voltage Range
60Vac - 69Vac for 0-60% Load, 70Vac - 79Vac for 0-70% Load, 80Vac - 89Vac for 0-80% Load, 90Vac - 95Vac for 0-90% Load, 96Vac - 150Vac for 0-100% Load
Input Frequency Range
40Hz - 70Hz (auto-sensing)
Input Power Factor
Input: Cold Start
Input: Plug Type
NEMA 5-15P
Input: Cord Length
Output: VA
Output: Watts
Output: On Battery Waveform
Sine Wave
Output: On Battery Voltage
100, 110, 115, 120, 125Vac (Configurable) ± 2%
Output: On Battery Frequency
50/60Hz (Auto-Sensing or Configurable) ±0.25Hz
Output: Overload Protection
Line Mode: 105-125% Load for 1 min, 126-150% Load for 10 sec, Battery Mode: 105-130% Load for 10 sec, 131-150% Load for 2 sec
Output: Outlets - Total
Output: Outlet Type
NEMA 5-15R (8)
Output: Rated Power Factor
Output: Crest Factor
Output: Harmonic Distortion
THD < 3% at Linear Load, < 5% at Non-linear Load
Output: ECO Mode Voltage Regulation
±10%, ±15% (Configurable)
Output: Bypass
Internal Bypass (Automatic and Manual)
Output: Transfer Time
Runtime at Half Load (min)
Runtime at Full Load (min)
Battery Type
Sealed lead-acid
Battery Size
User Replaceable
Typical Recharge Time
5 Hours
Replacement Battery
Battery Quantity
Extended Battery Module
Smart Battery Management (SBM) Mode
Surge Suppression
Network Grade Surge Protection
Phone / Ethernet RJ11 / RJ45
1-In, 1-Out (Combo)
EMI/RFI Filtration
LCD Control Panel
43 different settings or status options via the UPS Status menu, UPS Setup menu and run Testing menus. Refer to the "Function Setup Guide" on the "Resources" tab for complete options.
Rotatable LCD Control Panel Option
Removable LCD Control Panel Option
Yes - Requires a separate DB26 Cable
HID Compliant USB Port
Serial Port
EPO Port
Management Cable
USB Cable, Serial Cable, Phone line
LED Indicators
AC, output, battery
Audible Alarms
Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery
PowerPanel Business Edition
SNMP / HTTP Remote Monitoring
Yes - Optional RMCARD302
Rack Size
Form Factor
Enclosure Construction
Operating Temperature
32 deg.F to 104 deg.F / 0 deg.C to 40 deg.C
Operating Humidity
0% - 90% non-condensing
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
5 deg.F to 113deg.F / -15deg.C to 45 deg.C
Storage Relative Humidity
0% - 95% non condensing
Storage Elevation
0-50000 feet (0-15000 meters)
Online Thermal Dissipation
500 BTU/hr
Audible noise
<50 dBA
Dimensions (WxHxD)
17x3.5x16.9" / 433x88x430 mm
39.6 lbs / 18 kg
