| Scanner Type |

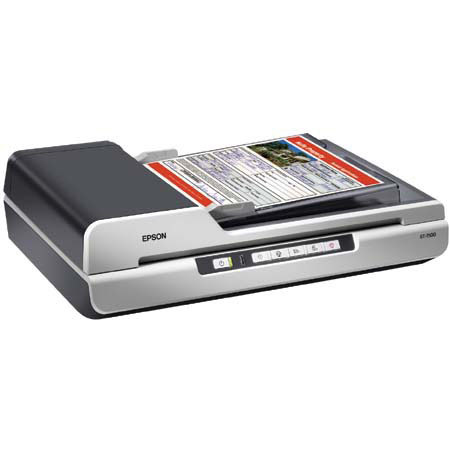

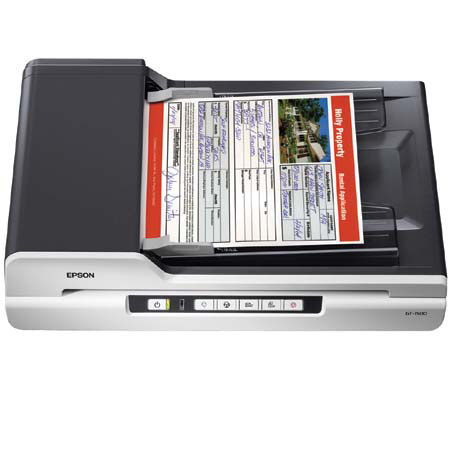

Flatbed Color Document Imaging Scanner |
| Photoelectric Device |
Color Epson MatrixCCD line sensor |
| Optical Resolution |
Flatbed: 1200 x 2400 dpi ADF: 600 x 600 dpi |
| Hardware Resolution |
Flatbed: 1200 x 2400 dpi with Micro Step Drive technology ADF: 600 x 600 dpi Micro Step Drive technology |
| Maximum Resolution |
4800 dpi |
| Effective Pixels |
10,200 x 14,040 (1200 dpi) |
| Color Hardware Bit Depth |
48-bits per pixel internal/external |
| Grayscale Hardware Bit Depth |
16-bits per pixel internal/external |
| Automatic Document Feeder |
40-page Automatic Document Feeder; up to 20 ppm black and white, 12 ppm color (Letter-size, 200 dpi, Speed Priority Scanning mode); Thickness: 50-120 g/m2; Max. Size: 8.5" x 14"; Min. Size: 5.9" x 5.9"; Simplex scanning |
| Optional Equipment |
Scanner Network Interface Card (RJ45,10BaseT/100Base TX) |
| Buttons |
6 buttons: Power, Start, Copy, E-Mail, PDF and Cancel |
| Maximum Read Area |
Flatbed: 8.5" x 11.7" ADF: 8.5" x 14" |
| Light Source |
ReadyScan LED technology |
| Interface |
Hi-Speed USB 2.0 |
| Scanning Speed |
Grayscale: 1.5 msec/line (A4, Speed Priority Scanning mode, 300 dpi) |
| Reliability |
Main Unit MCBF: 50,000 cycles ADF MCBF: 50,000 cycles |
| Voltage |
AC 100 - 120V |
| Frequency |
50 - 60 Hz |
| Power Consumption |
12.5W |
| Ready |
5.5W |
| Sleep |
2.4W |
| Off |
0.4W |
| Software |
Epson Scan ABBYY FineReader Sprint Plus OCR Nuance ScanSoft PaperPort SE |
| Windows Requirements |
Windows Intel Pentium II 450 MHz with 128MB of RAM (512MB of RAM for XP Professional x64 and Windows Vista) and 215MB of free hard drive space. Additional Windows Requirements: Microsoft) Windows 2000 Professional, XP Home Edition, XP Professional, XP Professional x64, Windows Vista (USB 2.0 Host Driver by Microsoft is required) |
| Macintosh Requirements |
Macintosh PowerPC G3 400 MHz or Intel-based CPU with 128MB RAM or higher and 200MB of free hard drive space. Additional Macintosh Requirements: Macintosh OS X 10.3.x - 10.5.x. |
| Physical Dimensions |
Width: 18.5" (470 mm) Depth: 12.5" (318 mm) Height: 4.8" (121 mm) |
| Weight |
Weight: 8.6 lbs. (3.9 kg) |
| Warranty |
Epson 1 year limited warranty |
