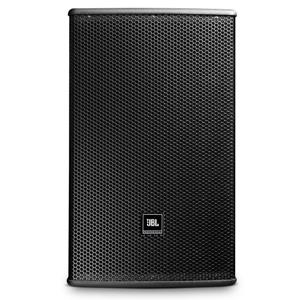

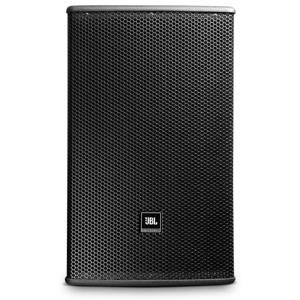

JBL EON615 15" Class D Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker with 90x60deg. Coverage Pattern, 50Hz-20kHz, Single

A True Step Forward In Technology
More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL's advanced waveguide technology, JBL designed and manufactured transducers and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today's working musicians and sound providers.

Purposeful Product Design
Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures. This results in tremendous increases in cabinet volumes which enable better acoustic performance while maintaining the same footprint. Two intelligently positioned handles make the 600 easy to carry and move around. Integrated hardware mounts, designed into the enclosures, allow each model to be fl own when required. And indexed feet molded into the enclosures allow for convenient storage and transport, secure stacking for stage monitor and traditional stand up configurations and unique acoustic configurations.

JBL Waveguide Technology
The EON615's extraordinary performance results from a breakthrough approach to waveguide design. JBL engineers examined the radiation characteristics of the EON's high and low frequency drivers at 36 different points employing JBL's exclusive, state of the art measurement techniques, then designed the Image Control Waveguide ensuring the sound radiation and coverage pattern match at the high frequencies, the crossover point and the low frequencies. The result is consistent response throughout its 110 degree coverage pattern. The quality and consistency between on axis and off axis response delivers uniform coverage and high intelligibility throughout the coverage area, which means the EON615's smooth, transparent sound is the same for the entire audience.

Bluetooth Integration
Knowing that fine tuning your sound needs sophisticated yet convenient control, JBL engineers developed an iOS and Android supported Bluetooth v4.0 compliant interface for controlling master volume, adjusting the 5-way, user definable parametric EQ and saving and recalling user presets.

Amplification
The EON615 features built-in 1000 watt power amplification designed, as with all EON components to perfectly complement the performance of the drivers, delivering exceptional headroom with power to spare whether a fixed pa application or the demands of a gigging band. Driving the custom JBL high and low frequency transducers, the system provides massive sound pressure levels with lower distortion throughout the system's full frequency range.

Input Panel
The rear panel provides XLR-1/4" combination inputs for each of the system's two channels, with individual gain controls and signal presence LED's. A master volume adjusts overall system level with a convenient limit LED indicator. Onboard EQ Presets allow setting the system as a Main, house speaker, Monitor speaker, crossover contour for adding an EON subwoofer and a Speech setting for high intelligibility in simple pa and announcement applications.

• Two channel mixer XLR-1/4" combination inputs
• Both inputs mic or line selectable
• Convenient easy-to-use application presets available right from the back panel
• XLR loop-thru for routing signal to additional EON600 speakers

Configurations
The EON600 Series is a platform technology with a full range of models that integrate seamlessly to create multiple system options that excel in challenging audio environments with loud volumes.

• Single speaker on a stand for public address
• Full-range stereo set up with two top cabinets and a sub-woofer for live performance or DJ
• Convenient floor monitor option
• Suspend any of the top cabinets for use in commercial installations or Houses of Worship
