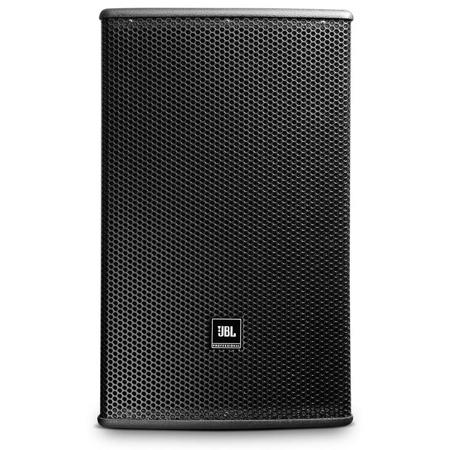

JBL AC566 15" 2-Way Full-Range Passive Loudspeaker System, 60x60 Degree Coverage Pattern, Black

SKU: JBAC566 MFR: AC566
Earn VIP Reward Points

Key Features

  • Experience powerful audio with the JBL AC566 PA speaker, perfect for live sound.
  • This passive PA speaker boasts a 15" woofer for deep bass and clear high frequencies.
  • Enjoy wide, 60x60 degree coverage from this full-range loudspeaker for consistent sound.
  • The rugged, black PA speaker cabinet ensures durability for touring and installed sound.
  • Get flexible connectivity with dual Neutrik NL4MP connectors on this passive speaker.
  • Easily mount this PA loudspeaker with 14x M10 threaded suspension points for venues.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

JBL AC566 Specifications

  • Finish

    Textured black paint finish

  • Active or Passive

    Passive

  • Frequency Response (+/-3 dB)

    75 Hz to 18 kHz

  • Frequency Range (-10 dB)

    60 Hz to 20 kHz

  • Power Capacity

    Long-Term System: 250 W/500 W/1000 W (Continuous/Program/Peak)
    System Power Rating (AES): 350 W (1400 W peak), 2 hours

  • Maximum Sound Pressure Level (SPL)

    3.2' (1m): 122 dB (128 dB peak)

  • Nominal Sensitivity

    1 W @ 3.2' (1m): 98 dB

  • Impedance

    8 Ohms

  • Crossover

    1.5 kHz

  • Coverage Pattern

    60 x 60 Degree

  • Low Frequency Driver

    1x 15" (381mm) woofer (P/N: 5053935) with 2.5" (63.5mm) voice coil

  • High Frequency Driver

    1x 2408H-2 driver with 1" (25.4mm) exit / 1.5" (38mm) voice-coil

  • Enclosure Material

    0.59" (15mm) multi-ply hardwood plywood

  • Grille

    Powder coated, 0.05" (1.5mm) perforated steel, with acoustically transparent black foam backing

  • Input Connections

    Dual Neutrik NL4MP connectors plus covered barrier trip terminals

  • Mounting

    14x M10 threaded suspension points
    4x M10 for wall mount bracket

  • Dimensions

    26.7 x 16.5 x 17.5" (680 x 420 x 445mm)

  • Weight

    43.6 lb (19.8kg)

  • UPC Code

    691991001291

About JBL AC566

Find the perfect balance of power and clarity with the AC566 15" 2-Way Full-Range Passive Loudspeaker System. This high-quality, durable audio equipment is a product of JBL's AE Application Engineered Series, a line known for its versatile and reliable loudspeakers designed for a multitude of fixed installation applications.

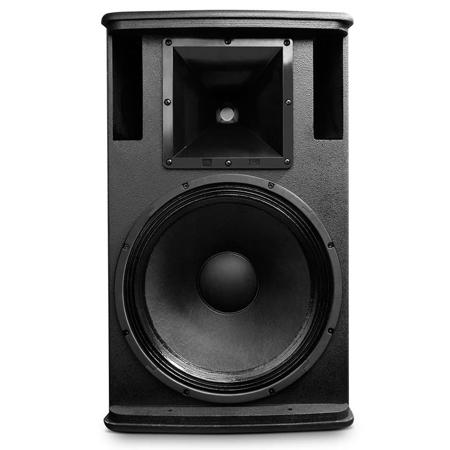

The AC566 is a compact yet powerful loudspeaker system, featuring a 384 mm (15") low-frequency driver and a 25 mm (1") exit/35 mm (1.5") voice-coil compression driver. This combination ensures a robust and balanced sound across a wide range of frequencies, making it ideal for various music genres and sound requirements.

This loudspeaker system is designed with a 60-degree by 60-degree coverage horn in both vertical and horizontal orientations, providing a wide and well-controlled off-axis response. This feature ensures that sound is evenly distributed, making it perfect for live performances, DJ sets, and other events requiring high-quality sound.

The AC566 is not only powerful but also versatile. It comes with M10 threaded suspension points and four threaded inserts located on the back of the enclosure for attachment of a MultiMount or similar type mounting. This makes it easy to install in various settings, from performing spaces and clubs & bars to houses of worship, multimedia spaces, retail & hospitality spaces, presentation suites, and educational facilities.

With its sleek black finish, the AC566 15" 2-Way Full-Range Passive Loudspeaker System is not only a high-performing audio equipment but also a stylish addition to any space. Experience the JBL quality sound with the AC566.

JBL AC566 Features

  • Robust 15mm enclosure with black textured finish
  • 384 mm (15") LF transducer
  • 60 Degree x 60 Degree Waveguide with a 25 mm (1") exit 35mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful audio with the JBL AC566 PA speaker, perfect for live sound.
  • This passive PA speaker boasts a 15" woofer for deep bass and clear high frequencies.
  • Enjoy wide, 60x60 degree coverage from this full-range loudspeaker for consistent sound.
  • The rugged, black PA speaker cabinet ensures durability for touring and installed sound.
  • Get flexible connectivity with dual Neutrik NL4MP connectors on this passive speaker.
  • Easily mount this PA loudspeaker with 14x M10 threaded suspension points for venues.

What's in the box:

  • AC566 15 " 2-Way Full-Range Passive Loudspeaker System (Black)
  • JBL 5 Year Limited Warranty
