Netgear FS105 10/100 Desktop Switch

I needed a way to add some additional LAN ports for my Netgear Nighthawk X10 router for all of our wired devices. Installation was a breeze (it's a dumb switch, no management capabilities, it worked as it's supposed to. It's a quality piece of hardware at a fair price and it has a lifetime warranty.

Bill R.

Netgear ProSafe 5-Port 10/100 Desktop Switch Specifications

  • Standards

    IEEE 802.3, IEEE 802.3u

  • Protocols

    Standard Network Protocols

  • Ports

    5x 10/100 Auto-Negotiation RJ-45 Ports

  • Speed

    Half-Duplex: 10/100 Mbps
    Full-Duplex: 20/200 Mbps

  • MAC Address Table Size

    48-bit

  • Switching Method

    MDI/MDI-X

  • Form Factor

    Desktop

  • System Requirements

    Network card for each connected PC
    Network cables
    Network software (Windows, Linux, Mac OS, etc)

  • Operating Temperature

    32-104Deg. F (0-40Deg. C)

  • Operating Humidity

    0-90%, non-condensing

  • Operating Altitude

    10,000' (3000 m)

  • Storage Temperature

    14-158Deg. F (-10-70Deg. C)

  • Storage Humidity

    0-95%, non-condensing

  • Storage Altitude

    10,000' (3000 m)

  • Power Requirements

    AC: 110 VAC
    DC: 7.5 VDC, 1 amp

  • Dimensions (W x H x D)

    94 x 103 x 27 mm (3.7 x 4.1 x 1.1 in)

  • Weight

    0.28 kg (0.62 lb)

  • UPC Code

    606449006865

About Netgear ProSafe 5-Port 10/100 Desktop Switch

FEATURED REVIEWS

Netgear FS105 10/100 Desktop Switch

By Bill R.

I needed a way to add some additional LAN ports for my Netgear Nighthawk X10 router for all of our wired devices. Installation was a breeze (it's a dumb switch, no management capabilities, it worked as it's supposed to. It's a quality piece of hardware at a fair price and it has a lifetime warranty.

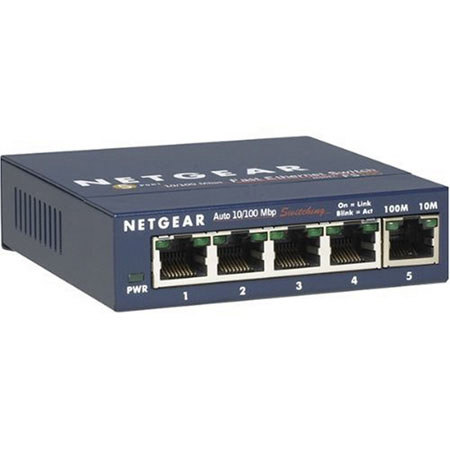

The Netgear ProSafe 5-Port 10/100 Desktop Switch is a 5-port Ethernet switch that can operate at speeds of up to 200 Mbps in full-duplex mode. The switch features Store and Forward packet switching and Auto Uplink ports for automatic MDI/MDI-x detection. The switch features a compact desktop form factor, making it an excellent addition to your network.

Netgear ProSafe 5-Port 10/100 Desktop Switch Features

  • At Your Service: Five, eight, or sixteen ports provide LAN access for many users. Every port supports up to 200 Mbps in dedicated bandwidth and traffic is forwarded flawlessly with automatic flow control
  • Compact: Solidly built in small sizes that are easy to position when space is at a premium. Ideal for conference rooms, class rooms, study groups or small offices. Place it on any flat surface or use the included wall mount kit to tuck it out of the way
  • Simple To Use: Once you connect the hardware, your switch is operating! Auto negotiation takes care of the speed and duplex, while Auto Uplink takes care of the MDI/MDI-X connection. Eliminate the need for toggle switches or special crossover cables
  • Quiet: No fan means no noise, which helps maintain a peaceful atmosphere in your busy office

Key Features

  • At Your Service
  • Compact
  • Simple To Use
  • Quiet: Exclusive noise reducing technologies

What's in the box:

  • Netgear ProSafe 5-Port 10/100 Desktop Switch
  • Wall-mount Kit
  • AC Adapter
  • Quick Installation Guide
  • Netgear Lifetime Warranty
