Netgear

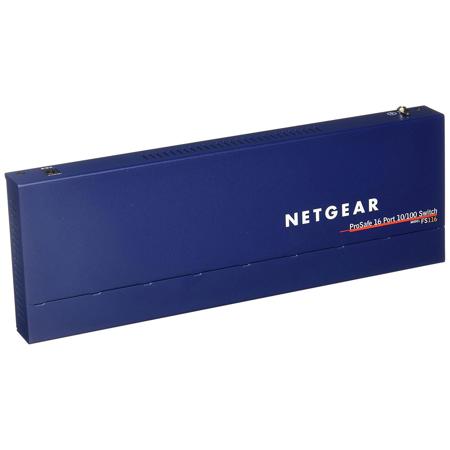

Netgear ProSafe 16-Port 10/100 Desktop Ethernet Switch

SKU: NEFS116 MFR: FS116NA
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The Netgear FS100 series desktop switch, known for its reliability and performance, provides your LAN with high-speed, 10/100 Mbps auto-sensing connectivity for as many as 5, 8, or 16 users. Just plug in your Ethernet cables, connect a power cord and you're ready to go-there's no software to configure. It negotiates to the fastest possible connection and with Auto Uplink technology, the switch automatically figures out if the link needs a straightthrough or cross-over connection and makes the right choice.

Existing 10BASE-T devices are easily integrated within higher bandwidth environments, with full wire speeds on all ports of either 10 Mbps or 100 Mbps. Engineered without the need for internal fans, it operates silently. This very compact switch is housed in a sturdy metal case for years of dependable use.

What's Included With This Item

  • Netgear Ethernet Switch
  • Wall Mount Kit
  • AC Adapter
  • Quick Installation Guide
  • Netgear Warranty

Key Features

  • Every port supports up to 200 Mbps in dedicated bandwidth and traffic is forwarded flawlessly with automatic flow control
  • Compact: Solidly built in small sizes that are easy to position when space is at a premium. Ideal for conference rooms, class rooms, study groups or small offices. Place it on any flat surface or use the included wall mount kit to tuck it out of the way
  • Compact Form Factor: The switch features a compact form factor that allows you to easily integrate it into almost any work environment
  • Simple To Use: Once you connect the hardware, your switch is operating! Auto negotiation takes care of the speed and duplex, while Auto Uplink takes care of the MDI/MDI-X connection. Eliminate the need for toggle switches or special crossover cables
  • Quiet: No fan means no noise, which helps maintain a peaceful atmosphere in your busy office

Technical Specs

Network Ports Sixteen (16) 10/100 Mbps auto speed-sensing UTP ports
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
Forwarding modes Store-and-forward
Bandwidth 3.2 Gbps
Network latency Less than 20 µs for 64-byte frames in store-and-forward mode for100 Mbps to 100 Mbps transmission
Buffer memory 512 KB
Address database size 8,000
Addressing 48-bit MAC address
Mean time between failures (MTBF) 353,000 hours (~40 years)
Operating temperature 32 to 104°F (0 to 40° C)
Storage temperature 14 to 158°F (-10 to 70°C)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Operating altitude 10,000 ft (3,000 m) maximum
Storage altitude 10,000 ft (3,000 m) maximum
Safety Agency Approvals UL listed (UL 1950)/cUL
IEC 950/EN 60950
Status LEDs Power
Link, speed and activity indicators built into each
RJ-45 port
Electromagnetic Emissions CE mark, commercial
FCC part 15 Class A
EN 55022 (CISPR22), Class A
VCCI Class A
C-Tick
AC Power 12W (12V DC, 1A)
Dimensions 287 x 103 x 27 mm (11.3 x 4.1 x 1.1 in)
Weight 0.9 kg (2.0 lb)
Warranty Netgear Lifetime warranty
