This item is no longer available.
Review Summary
Super 35mm equivalent single-chip CMOS
Total: 11.6 MP
Effective: 8.9 MP
Luminance: 2000 lx, 89.9% reflectance
Video Gamma: T13 @24p (3200K light source)
S-Log2 Gamma: ISO 2000 (D55 light source)
14 stops
57dB (Video Gamma, 24p, Noise Suppression OFF)
MPEG-2 Long GOP
HD 422 mode: CBR, 50 Mbps max, MPEG-2 422P@HL
Linear PCM (2 ch, 24-bit, 48-kHz)
XAVC 2K: 2048 x 1920 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
XAVC HD: 1920 x 1080 at 23.98p, 25p, 29.97p, 50p, 59.94p
MPEG4 SStP: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p
MPEG2 HD: 1920 x 1080 at 50i, 59.94i, 23.98p, 25p, 29.97p
MPEG2 HD: 1280 x 720 at 50p, 59.94p
1/24s to 1/6,000s
4.2 - 360° (electrical shutter)
2, 3, 4, 5, 6, 7, and 8 frame accumulation
XAVC HD/2K: 1-120p (NTSC) at 23.98p, 29.97p
XAVC HD/2K: 1-100p (PAL) at 25p
Preset (3200K, 4300K, 5500K), Memory, ATW
-3, 0, 3, 6, 9, 12, 18 dB, AGC
Standard (x6)
HG1, HG2, HG3, HG4, HG7 and HG8
S-Log2 Gamma
SxS (x2, ExpressCard 34 slots)
SD card slot (x1)
HD-Y or HD Sync (tri-level) V1.0
Analog Composite (VUP)
SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off)
TC IN/OUT switchable (x1)
BNC input (x1)
A Type output (x1)
Input: XLR-type 3-pin with Line/Mic/Mic +48V/AES/EBU selectable (x2, female)
Output: phono jack (CH-1, CH-2)
Headphone: Stereo mini jack (x1)
Speaker: monaural
USB device, Mini-B (x1)
USB host, type-A (x1)
USB host, type-A (x1)
BNC (x1)
4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter
8-pin (x1)
FZ-mount, PL-mount (with supplied adapter)
Clear, 0.9 (1/8 ND), 1.8 (1/64 ND)
DC 12 V (11 V to 17.0 V)
Approx .24 W (while recording XAVC HD 60p, EVF Off, LCD monitor Off, HD-SDI On)
With BP-FL75: approximately 160 minutes
With BP-GL95A: approximately 230 minutes
32 ~ 104° F (0 ~ 40° C)
-4° ~ +140° F (-20° ~ +60° C)
Without protrusions: 7.13 x 7.88 x 12.25" (15.1 x 18.9 x 21 cm)
Body only: 4.88 lb (2.2 kg)
Required









The virtues of the PMW-F5 camera system are many, enabling the use of high quality production tools available today as well as those planned for the future:
1. The PMW-F5 camera system records 1080P imaging using on-board 50Mb MPEG2 HD and the 10bit XAVC HD. It can even record the two simultaneously, and to the same card!
2. In July 2013, 10bit 4:4:4/4:2:2 SR FILE recording capability is planned to be added.
3. In September 2013, XAVC HFR HD at 120P and XAVC 60P 2K (2048 x 1080) are planned to be added to the camera's arsenal.
All of these updates will be software based and will be free of charge to purchasers of the PMW-5 camera system.

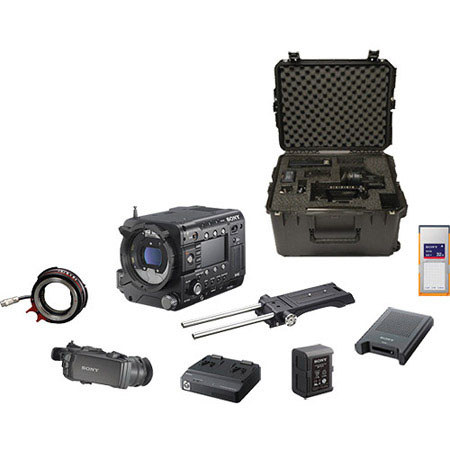

The Sony PMW-F5 camera is designed to accept a wide range of lenses. These packages include a Sony supplied PL adapter and an Optitek EF lens mount adapter. The Sony PL mount features both the Arri LDS and Cooke "i" interface capability. The Optitek EF lens adapter provides fine Aperture control in 1/4 stop increments. Unlike DSLR based systems, the PMW-F5 is not locked into a particular lens mount or brand. The two adapters will allow interchangeable use of lenses from ZEISS, Arri, Cooke and many others.
Setting the F5 apart from cameras in its price bracket is the PMW-F5's ability to utilize the AXS-R5 memory recorder (sold separately) to record 4K or 2K 16bit RAW images. RAW images offer incredible image fidelity and post production possibilities in a non-destructive environment. With the option al AXS-R5 RAW recorder and a planned September upgrade, high frame rates of 120 fps at 2K can be achieved while retaining the exceptional, 16-bit image quality. 120FPS is created without windowing the imager (changing the angle of view).
The Sony F5 is designed to make economic sense today, with the features you'll need to continue generating value for years to come. Instead of locking you into a single recording system, the camera opens the door to unprecedented versatility. Get on board!
