TRENDnet

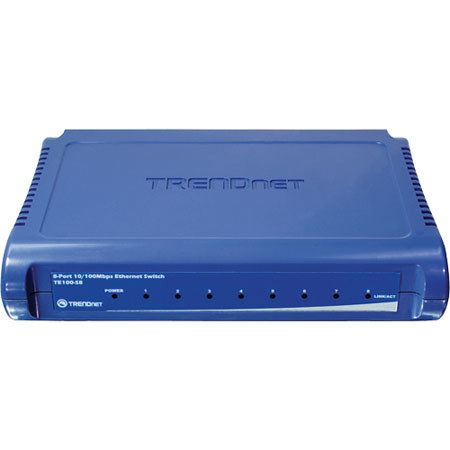

TRENDnet TE100-S8 8-Port 10/100Mbps Fast Ethernet Switch

SKU: TNTE100S8 MFR: TE100S8
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$14.99
Qty:
Add to Wishlist In Stock

About the TRENDnet TE100-S8

The TRENDnet TE100-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug-N-Play provides cost-effective and high performance solutions.

TRENDnet TE100-S8 Includes

  • TRENDnet TE100-S8 8-Port 10/100Mbps Fast Ethernet Switch Multi-Language QuickInstallation Guide
  • Power Adapter (5V DC, 800mA)
  • TRENDnet 5 Years Limited Warranty

TRENDnet TE100-S8 Features

  • 8 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
  • Compliant with IEEE 802.3 / IEEE 802.3u standards
  • IEEE 802.3x Flow Control support
  • Provide 1K MAC address entries
  • Compliant with Windows, Linux and Mac Operating Systems.
  • Store-and-Forward Switching method
  • Non-blocking Architecture
  • Diagnostic LEDs
  • Plug & Play

TRENDnet TE100-S8 Specifications

Hardware Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control
Network Media Ethernet: UTP/STP Cat. 3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet: UTP/STP Cat. 5. 5E, EIA/TIA-568 100-ohm
Data Rate Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast
Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Switch Fabric 1.6Gbps Forwarding Capacity
Topology Star
Interface 8 10/100Mbps Auto-MDIX RJ-45 Ports
Filtering Table 1K Entries per device
Buffer Memory 512Kbits per device
Power Consumption 2.8 watts (max)
Diagnostic LED Power, Link/ACT, 100Mbps
Power Adapter Switching Power 5V DC 800mA
Linear Power 7.5V DC 1A
Temperature Operating: 0° ~ 50° C (32° ~ 122° F)
Humidity 10%~90% (Non-Condensing)
Certification CE, FCC
Dimension 154 x 110 x 33mm (6 x 4.3 x 1.3 inches)
Weight 225g (8oz.)
