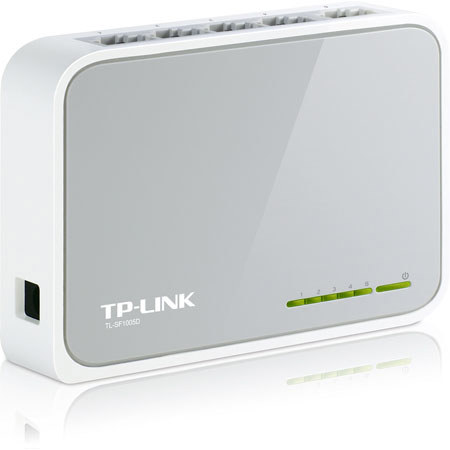

TP-Link TL-SF1005D 5-Port Unmanaged 10/100Mbps Desktop Switch

See all TP-Link items
SKU: TPLSF1005D MFR: TL-SF1005D
TP-Link TL-SF1005D: Picture 1 thumbnail TP-Link TL-SF1005D: Picture 2 thumbnail TP-Link TL-SF1005D: Picture 3 thumbnail TP-Link TL-SF1005D: Picture 4 thumbnail TP-Link TL-SF1005D: Picture 5 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

$10.50
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • 10/100 Transfer Rate
  • Ethernet Switch
  • Single-band
  • 100 Mbps
  • 5 Ports
  • Wired

About TP-Link TL-SF1005D

The TP-Link TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 60% of power consumption, making it an eco-friendly solution for your home or office network.

The TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

The auto features of this Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

TP-Link TL-SF1005D Features

  • Innovative energy-efficient technology saves power up to 60%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10 Mbps, 100 Mbps and 1000 Mbps hardware
  • Fanless design ensures quiet operation
  • Desktop design
  • Plug and Play design simplifies installation

TP-Link TL-SF1005D Specifications

Standards
IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3x
Protocols
CSMA/CD, TCP/IP
Ports
5x RJ-45 for 10/100Mbps Ethernet ports with Auto MDI/MDIX
Maximum Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Bandwidth
Backbound: 1Gbps
MAC Address Table Size
1k
Speed
Transfer Rate:
Ethernet: 10Mbps (Half-duplex)
Ethernet: 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex)
Fast Ethernet: 200Mbps (Full-duplex)
Transmission
Method: Store and Forward
Cables
Supported Cabling:
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
LED
Power, Link/Act for all ports
Regulations (EMC)
FCC, CE, RoHs
Operating Temperature
32Deg. to 104Deg.F / 0Deg. to 40Deg.C
Non-Operating Temperature
-40Deg. to 158Deg.F / -40Deg. to 70Deg.C
Operating Humidity
10% to 90% (non-condensing)
Storage Humidity
5% to 95% (Non-condensing)
Power Requirements
External Power Adapter: 100 to 240VAC, 50/60Hz
Dimensions (W X D X H)
4.1 x 2.8 x 0.9" (104.1 x 71.1 x 22.8 mm)
Mfr #
TL-SF1005D
SKU
TPLSF1005D
