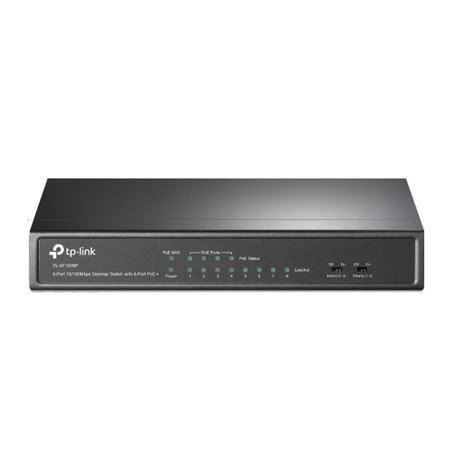

TP-Link 8-Port 10/100M POE Switch, Including 4 POE Ports

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist

About this item

The TP-Link TL-SF1008P is an 8 10/100M ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

TL-SF1008P has the priority function which will help protect the system by cutting off the power of the lowest-priority port when the system power is overloaded.

What's Included With This Item

  • TP-Link 8-Port 10/100M POE Switch
  • Cable/DSL Router
  • Quick Installation Guide
  • CD-ROM
  • Power Adapter
  • RJ-15 Ethernet Cable
  • Warranty Card
  • TP-Link 2 Years Limited Warranty

Key Features

  • Complies with IEEE802.3, IEEE802.3u, IEEE802.3af standards
  • 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
  • 8 10/100Mbps Auto-Negotiation RJ45 ports with 4-port PoE function (port-1 to port-4), all of them support Auto MDI/MDIX
  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 53W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • Supports priority function to protect the system when the system power is overloaded
  • LED indicators for monitoring power, link, activity and speed
  • External power adapter supply

Technical Specs

Standards IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af
Interfaces 8-10/100M Auto-Negotiation RJ45 ports with 4 PoE ports (port-1 to port-4)
Network Media(Cable) 10Base-T:
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Transfer Method Store-and-Forward
MAC Address Table 1K
MAC Address Learning Automatically learning, automatically aging
Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)
Frame Forward Rate 10Base-T: 14880pps/Port
100Base-Tx: 148800pps/Port
PoE Power on RJ45 Power+: pin 3 & pin 6
Power -: pin 1 & pin 2
Power Supply Input: External power adapter
Output: 48VDC
Power Consumption 5.8 watts. (max. no PD connected)
58 watts (max. with 53w PD connected)
LEDs Power, Link/Act, 100Mbps, PoE Status
Certifications CE, FCC
Operating Temperature 0 - 40Deg.C (32 - 104Deg.F)
Storage Temperature -40 - 70Deg.C (-40 - 158Deg.F)
Operating Humidity 10% - 90% non-condensing
Storage Humidity 5% - 90% non-condensing
Dimensions (L x W x H) 6.7 x 3.9 x 1.1in.(171 x 98 x 27mm)
